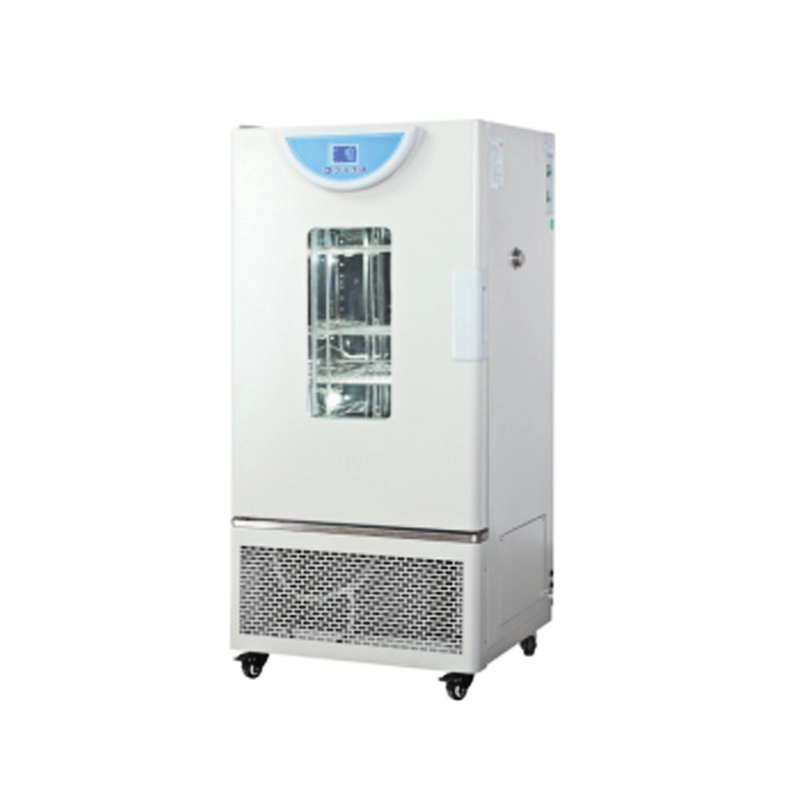

LCD Programmable Controller -5~70℃ Cooling Incubator GT-BM04C
Features
●Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.
●Latest PID LCD Programmable controller: 7 periods 63 steps, 0 to 5999mins for each periods, fan speed 0 to 100% adjustable.
●Independent temperature-limiting alarm system ensures experiments run safely.
●There is a 25mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement.
●Cooling Incubator Using environmentally friendly R134a refrigerant,fast cooling speed,saving energy and protecting environment.Auto-controller of fan speed to prevent damage to the samples.
●Shaker can be put inside GT-BM incubator to function as shaking incubator.
●Printer connector and RS485 connector are options which can connect printer and computer to record the parameters and the variations of temperature.(Option)
Product Parameters
Key Specification
Model | GT-BM04C-70 | GT-BM04C-150 | GT-BM04C-250 | GT-BM04C-495 |
Controller | LCD Programmable controller | |||
Temperature Range | -5~70℃ | |||
Display Resolution | 0.1℃ | |||
Temperature Stability | HIGH±0.3℃ LOW±0.5℃ | |||
Temperature Uniformity | ±1.5℃ (at 25℃) | |||
Electrical Requirement | 220V 50Hz | |||
Ambient Temperature | +5~35℃ | |||
Power consumption | 650W | 850W | 1300W | 2250W |
Chamber Volume | 70L | 150L | 250L | 495L |
Interior Dimension(W×D×H)mm | 400×440×500 | 500×460×800 | 520×550×1050 | 670×725×1020 |
Shelves | 2(pcs) | 3(pcs) | ||
Timing Range | 1~5999min | |||
