Analysis of FAR25.853 Test Standards for Common Combustion Properties of Aircraft Materials

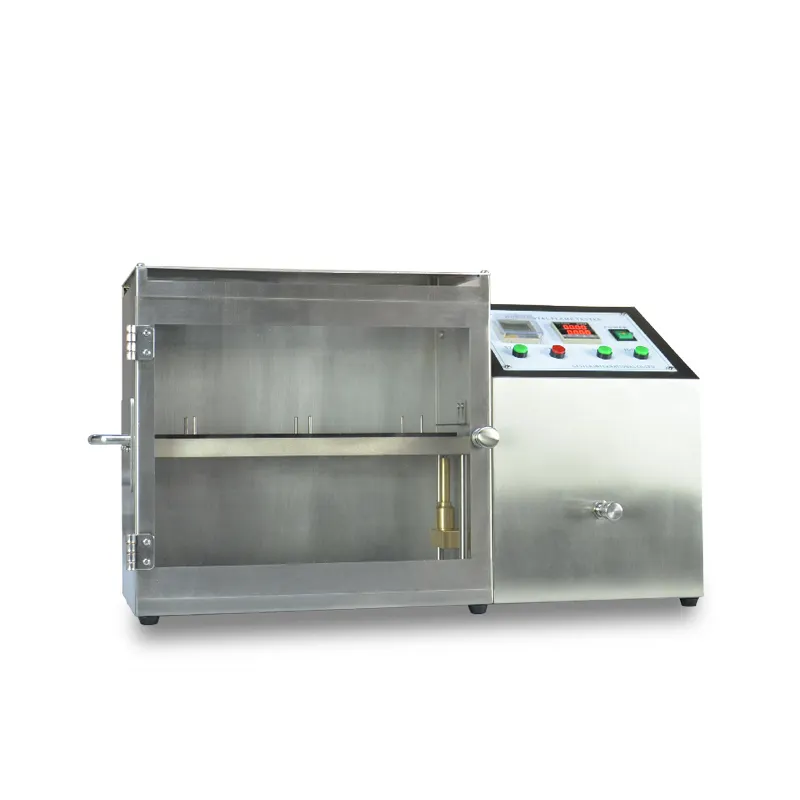

Aircraft Material Combustion Performance Test Far25.853 - Standard Name Far25.853: Fire Protection of Aircraft Interior Materials - Flame Retardant Fire Test Aircraft Material Combustion Performance Far25.853 - Horizontal Fire Test Far 25.853 Horizontal Fire Test The flame propagation rate of the member, the test apparatus is similar to UL 94 HB.
The test was performed in an unventilated chamber according to US Federal Test Method Standard 191, 5906. Take the average value of 3 measurements as the result. This level test corresponds to ISO 3795, DIN 75200 and FMVS302.
Far 25.853 Horizontal Fire Test - Test Method The test pieces used in this test are 3, and the thickness is the thickness used. Marked at 292mm and 38mm from where the flame was applied. The specimen position is horizontal. Ignite the source Bunsen burner. The time to apply the flame is 15s. Test its maximum flame spread rate.
Aircraft material flame retardant test, fire test– Other relevant standards Airbus standard: Boeing standard Smoke test: BSS7238 fire testing to smoke densityüBoeing Standard Toxicity Test: BSS7239 fire testing to toxicityüUS Standard Smoke Density: ASTM E 662 fire testing to Smoke DensityFar 25.853 Test Method– Aircraft Material Flammability Test Vertical Flammability Test According to 14 FAR 25.853 b(4)), (App. F to part 25 part I§ (a) Carry out, 12-second vertical burning test and 60-second vertical burning testè Smoke density test according to 14 FAR 25.853 (d), (App. F to part 25, part V)è Heat release test according to 14 FAR 25.853 (d), Appendix F, Part IVè Passenger seat according to 14 FAR 25.853 (c, App.F to part II)è Horizontal fire test according to 14 FAR 25.853 b(2,3), (App. F to part 25 part I§ (a), (1) carry outè Cargo Rack Fire Test According to 14 FAR 25.855 (App. F to part III)è 45°Fire Test 14 FAR 25.853 (b), (App. F to part 25, part I§ (6))
Do more about Flammability Tester:
1. ISO 3795 Horizontal Flammability Tester GT-C34A
Mainly used for determining the horizontal burning rate of materials used in the occupant compartment of road vehicles ( for example, passenger cars, lorries/trucks ,estate cars, coaches ), and of tractors and machinery for agriculture and forestry, after exposure to a small flame.
2. ASTM D6413 Vertical Flammability Test Chamber GT-C35A
To measuring the vertical flame spread for children’s sleepwear, fabrics, other textile materials or resilient filling materials used in upholstered furniture of textiles.
3. 45 Degree Flammability Tester ASTM D1230 Test Apparatus GT-C32
To determine the burning characteristics of textiles under controlled conditions. This test method covers the evaluation of the flammability of textile fabrics as they reach the consumer for or from apparel other than children’s sleepwear or protective
GESTER International Co.,Limited has an array of branches in domestic for munufacturing textile testing equipment.
Visit GESTER International Co.,Limited in China for professional textile testing equipment tips and qulity ensured . The company is a licensed, bonded, and insured provider with decades of experience. Make your enquiry, today.
The key to textile testing equipment is understanding where there is a problem or need in certain markets and knowing how to solve it.
Cut resistance is one of the most critical performance indicators in personal protective equipment (PPE) testing, directly affecting worker safety in high-risk industries such as metal processing, machinery manufacturing, and emergency rescue. The TDM Cut Test Machine GT-KC28 plays a vital role in accurately evaluating the cut resistance of PPE products, including gloves, protective clothing, footwear materials, composite materials, rubber, and industrial textiles.
By adopting high-precision force control systems, intelligent data processing, and stable transmission technology, the GT-KC28 TDM Cut Tester can accurately measure the critical cutting force of materials and ensure excellent repeatability and comparability of test results. Its user-friendly touch-screen operation, comprehensive data storage, USB data export, and built-in thermal printer greatly improve laboratory efficiency and data traceability.
The TDM Cut Test Machine GT-KC28 fully complies with major international and national standards such as ISO 13997, EN 388, ASTM F2992/F2992M, ANSI/ISEA 105, and GB 24541-2022, making it a reliable solution for PPE manufacturers, third-party testing laboratories, and research institutions. Through precise and standardized cut resistance testing, the GT-KC28 helps reduce industrial cutting injuries, supports PPE certification across global markets, and ensures that protective equipment delivers reliable safety performance in real-world applications.
The Heat Contact Machine GT-C101 is a specialized testing instrument designed for evaluating the heat resistance and thermal protective performance of gloves, protective clothing, and other heat-resistant materials used in high-temperature environments. In industries such as smelting, casting, welding, and glass manufacturing, workers are frequently exposed to intense heat, making accurate testing of contact heat resistance essential for ensuring safety and compliance.
GT-C101 simulates real working conditions by measuring heat transfer delay and thermal transmission under instant contact with high-temperature surfaces. Fully compliant with EN 407, EN 702, and ISO 12127-1 standards, this machine provides precise, repeatable data for manufacturers, laboratories, and research institutions. With high-temperature capability up to 500°C, advanced calorimetry, digital monitoring, and adjustable contact speed, the Heat Contact Machine GT-C101 is an indispensable tool for developing and certifying next-generation PPE and heat-insulation materials.
