Anti-Static Electrical Resistance Tester for Shoe GT-KC38-1
Safety Shoe Electrical Resistance Tester
Product Description
Application:

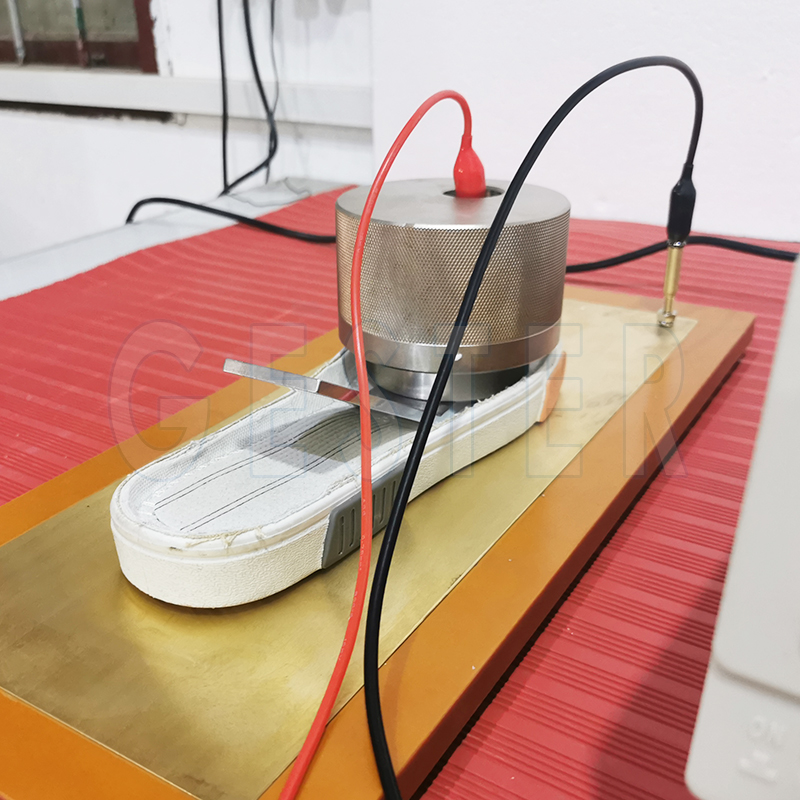

This Electrical Resistance Tester for Safety Shoes is used for testing the electrical resistance of the shoe or its materials so as to assess its anti-static characteristics.
Safety Shoes Anti-Static Tester Standards:
ANSI-Z41 section 3; CSA-Z195-14 section 6.6.1 and 6.7 ;
GB/T20991 section 5.10 , NOM-113-STPS-2009 Section 8.7
EN ISO 20344-2020 section 5.13, EN344-1 section 5.7;
AS/NZS 2210.2 section 5.10, EN 61340;
ASTM F2412 section 8, ASTM F2413 section 5.4
Product Specifications
Our specialists can help you find the perfect Safety Shoes Anti-Static Tester for you.
| Model | GT-KC38-1 |
| Voltage Range | DC 1.0V ~ 1000V |
| Measuring Range | 100kΩ~50.00GΩ |
| Resolution |
R<1MΩ: 0.1kΩ, R<10MΩ: 0.001MΩ, R<100MΩ: 0.01MΩ R<1000MΩ: 0.1MΩ, R<10GΩ: 0.001GΩ, R<100GΩ: 0.01MΩ |
| Power Supply | 1∮AC 220V 50/60HZ |
| Dimensions (W×D×H) | 20×16×19cm |
| Weight (approx.) | 15kg |
Product Details
