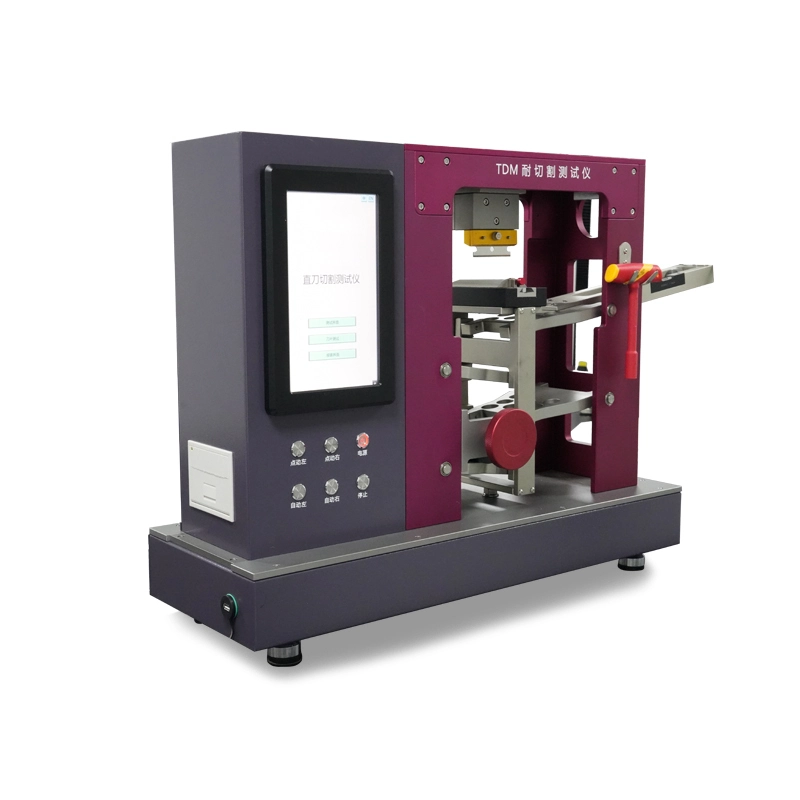

EN 388 TDM Cut Test Machine GT-KC28
Application
This machine is used for TDM grading test (cutting force N) of gloves, protective clothing fabrics and other fabrics, composite materials, rubber and other materials for cutting resistance.
Feature
1. Touch screen operation, easy to operate, comprehensive display content.
2. The program has built-in blade correction coefficient automatic calculation formula, cutting data calculation, and curve fitting function to reduce the operator's time for complex calculations. It also supports instrument data storage, raw data query and data export functions.
3. The software can upgrade the algorithm with the standard. It is currently upgraded to the calculation and output function of the confidence interval (CI) and determination coefficient (R2) of the curve regression that meets the requirements of the new standard 13997-2023.
4. Built-in thermal printer can print test data in real time and export USB data reports;
5. Control transmission system: Select high-quality brand servo motor system, high-precision ball screw and rotary encoder, stable operation and stable test data.
6. There are many options, and the blades imported from the United States or Japan can be configured according to customer requirements.
Standards
ISO 13997, BS EN 1082-2:5.4, EN 388, GB 24541-2022:6.3,ASTM F2992/F2992M-15, ANSI/ISEA 105-2016:5.1.
Key Specification
Model | GT-KC28 |
Vertical Cutting Force Load | 0~100N |
Horizontal Cutting Force | 25N |
Total Vertical Stroke Of Sample Rack | 35mm |
Effective Vertical Stroke Of Sample Rack | 10mm |
Cutting Speed | 150mm/min@±10% |
Cutting Stroke | 200mm |
Test Loading Stand Lever Ratio | 2:1 |
Cutting Distance Reading Accuracy | 0.01mm, graduation value 0.001mm |
Annular Combination Weight Specification | 2kg-1mg (ring weight + sheet weight) 1 set |
Power | 1phase, AC 220V 50Hz 500W |
Dimension (W×D×H) | 45×45×44cm |
Weight | Approx 20kg |
Accessories
Standard Accessories | 1Box | Cutting blade (100pcs/box) |
| 1pc | Neoprene correction patch |
| 1roll | Double-sided tape/roll |
| 1set | M1 ring weight |
| 1pc | Power line |
Optional accessories | Option | Self-adhesive copper tape/roll |
