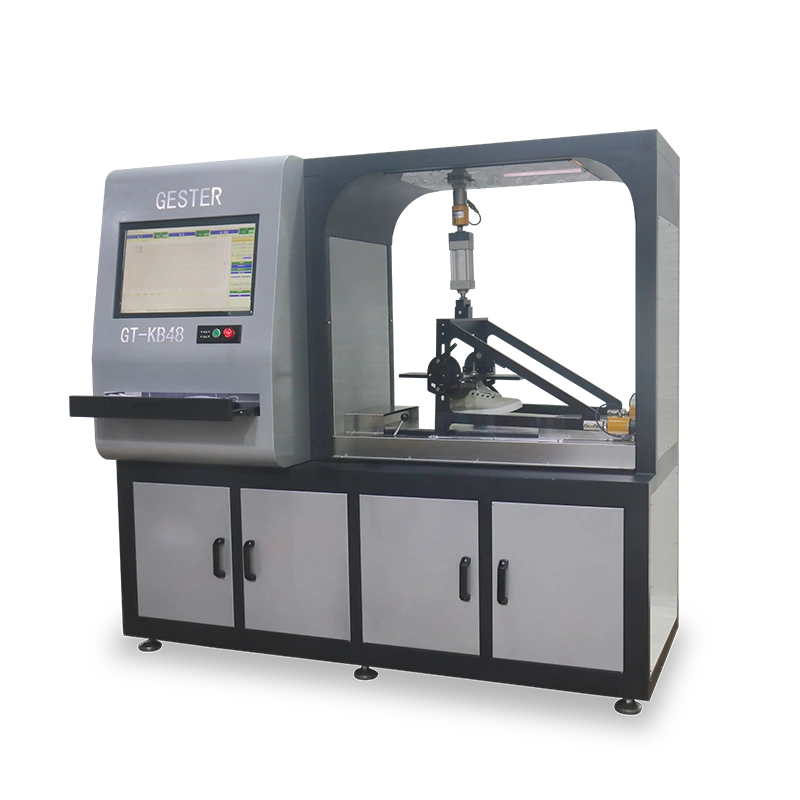

Footwear Slip Resistance Testing Machine With Computer Operation GT-KB48
Brief introduction of the Footwear Slip Resistance Testing Machine
Application
Slip resistance tester apply a predetermined load by different mediums like wood, PVC, ceramic tile or specified and set specified friction times and speed, which is to measure the sole friction coefficient, and then judge the slip resistance of shoes.
Footwear Slip Resistance Tester Principle
Place specimen on test stand, and glycerin as a lubricant, exert a certain load, and move test bench in horizontal direction compared with sample by lateral traction forces, to measure dynamic friction and calculate kinetic coefficient of friction.
Feature
1.Slip resistance tester equip with computer and operation software, which is complied with ISO 13287, GB/T 28287, SATRA TM 144 standards. Client can choose the relative test method above mentioned, and also can specify custom settings for test parameters.
2.Slip resistance tester equip with high precision load cell of Transcell (American Brand).
3.The slipping device is driven by a high power servo motor, that can speed up to a specified value in a short time.
4.The normal force application device is adopting a low friction air cylinder of Japanese SMC brand, which can up to the value of standard specified quickly.
| Key Specification | ||
| Model | GT-KB48 | |
| Vertical load cell range | 1000N | |
| Horizontal load cell range | 1000N | |
| Sliding speed | (0.3±0.03)m/s | |
| Static contact time | 0.5s | |
| Test normal force | 500±25N, For footwear of European size 40 (UK size 6.5) and above | |
| 400±20N, For footwear of European size below 40 (UK size 6.5) | ||
| Wedge angle gauge | 7o | |
| Control method | Computer-controlled | |
| Monitor | 19-inch | |
| Test floor | Pressed ceramic tile floor, stainless steel plate | |
| Power supply | AC 220V 50/60HZ | |
| Dimensions | 1980*86*172CM | |
| Weight | Approx 580kg | |
| Standards | ||
| ISO 13287, GB/T 28287, ASTM F2913, SATRA TM 144, ISO 24267, ISO 20344, JIS T8101, JIS T8106, JIS T8107 | ||
| Accessories | ||
| Standards accessories | 2pcs | 7°Wedge angle gauge |
| 2pcs | Shoe last fixture | |
| 2pcs | Prosthetic foot fixture | |
| 1pc | 180×90×90mm calibration rubber fixture | |
| 1pc | Stainless steel plate (Already fix on the machine) | |
| 1pc | 100×70mm steel block | |
| 1pc | Power line | |
| Optional accessories | / | Pressed ceramic tile floor (500*190*10mm) |
| / | S96 Rubber | |
