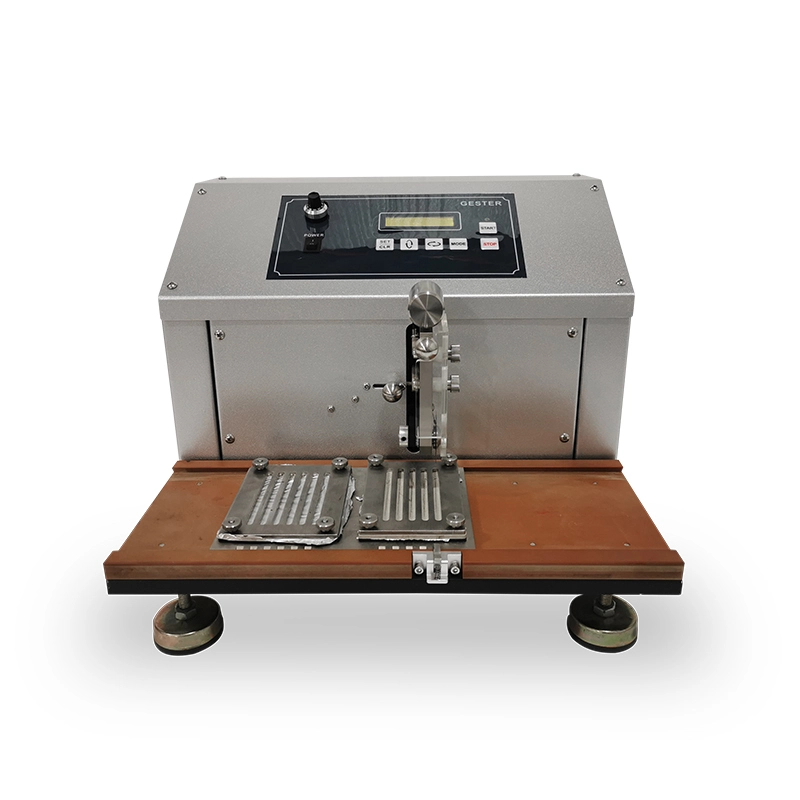

Safety Glove & Shoe Upper Cutting Tester LCD display GT-KC29
Application
This machine is used for safety glove protect area and shoe upper cutting testing, but it is not suitable for the glove made of hard materials.
Principle
To cut the sample placed on the specified sample device by a spinning round cutter, make a reciprocating motion under a required loading, enclosed the auto-counted device, it has automatic shop function as soon as the testing over. To get the result by contrast the difference before and after the testing.
Standards
EN 388 section 6.2, ISO 20344 -2020 section 5.23, GB/T 20991 section 6.14, AS/NZS 2210.2 section 6.14, AQ 6102 section 4.3.2
Key Specification
Model | GT-KC29 |
Circular blade | Diameter 45±0.5mm |
| Thickness 0.3mm |
| Cutting angle 30o ~35o |
Stroke | 50 mm |
Load | 5±0.05 N |
Max. Cutting Speed | 10 cm/s linear speed |
Counter | LCD display, 0-99,999,999 |
Specimen holder | 2 sets |
Power Supply | 1∮AC 220V 50/60HZ |
Dimension (W×D×H) | 45×45×44cm |
Weight | Approx 25kg |
Accessories
Standard Accessories | 2sets | Specimen holder |
| 1pc | Circular blade |
| 1roll | Aluminium Foil |
| 1pc | Filter paper |
| 1pc | Power line |
Optional accessories | 1meter | Canvas |
Product details
This machine is used for safety glove protect area and shoe upper cutting testing.
