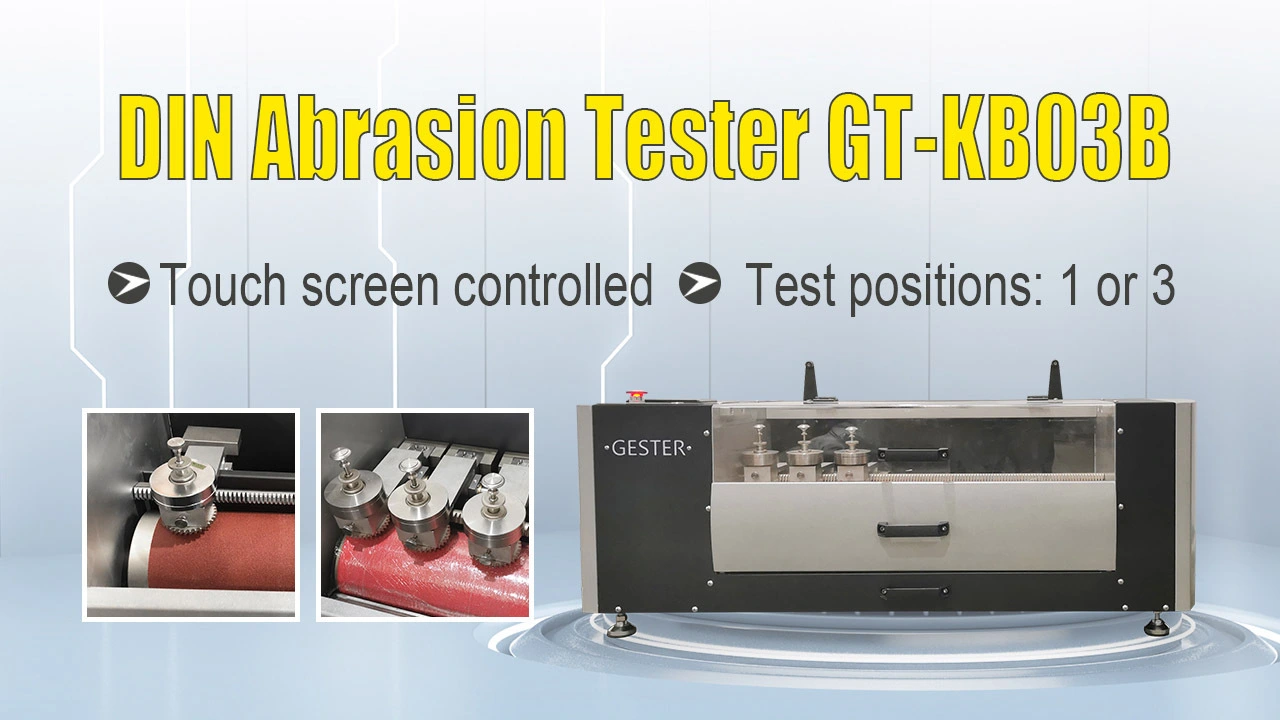

DIN Abrasion Resistance Tester KB03B-3
Application
DIN Abrasion Tester is used to determine wear performance test of materials like elastic material, rubber, tires, conveyor belts, conveyor belts, shoe soles.
Feature
- 1.Body paint baking processed, easy for maintenance;
- 2.Color touch-screen control, digital counting, automatically stop after test finished;
3.DIN abrasion resistance tester equipped with vacuum suction port device, automatically clean dust during test.
Principle
Under certain touching pressure and contact area, sample becomes a certain angle with sandpaper and determine its abrasion performance caused by a certain level of sandpaper. Pack sandpaper outside the surface of roller. The sample is pressed against the roller with sandpaper, which makes sample lateral moving along roller. Abrasion is caused under the other side of cylindrical specimens measuring the mass loss of sample value and count the wear amount by sample density.
Product Parameters
Key Specifications
Model | GT-KB03B-1 | GT-KB03B-3 |
Test positions | 1 | 3 |
Control Mode | Touch screen controlled | |
Diameter of wear wheel | 150mm | |
Specimen dimension | ø16.2 mm x thickness 6-10 mm | |
Specimen moving speed | 4.2 mm/r | |
Weights | Holder 2.5N, can be used arbitrarily with optional accessory 2.5N, 5N (each for one) | |
Wear wheel speed | 40±1rpm | |
Inclination angle | 3°, Test piece support shaft of test piece becomes vertical angle with roller. | |
Grit size of sandpaper | #60 | |
Roller length | 460mm | |
Wear stroke | 40m | |
Power supply | 1∮AC 220V 50/60HZ 3A | |
Standards | DIN-53516, JIS-K6369, JIS K6264-2, GB/T 20991 section 8.3, GB/T 20265, GB20266-2006, GB/T 9867, EN ISO 20344-2021 section 8.3, AS/NZS 2210.2 section 8.3, ISO 4649, SATRA TM174, BS903-A9 Method A, ASTM D5963, ISO20871, QB/T2884, SATRA TM 193, EN 12770 | |
Accessories
Standard accessories | 1Set | 2.5N weights |
1Set | 5N weights | |
1pc | P60# standard abrasive paper | |
1pc | Standard cutting die | |
1pc | Metal blob(Grinding head) | |
1pc | 2mm Guage | |
1pc | Power line | |
Optional accessories | Optional | GT-G203H Electronic balance (210g,accuracy 1mg) |
Optional | Standard rubber |
