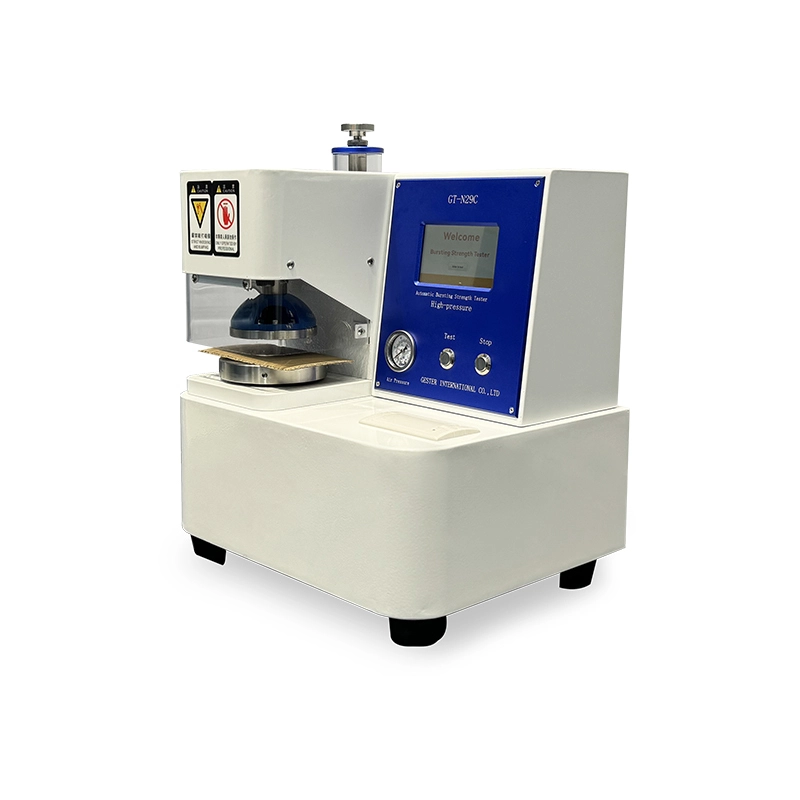

Automatic Bursting Strength tester for Paper GT-N29C
Application of GT-N29C paper bursting strength tester
GT-N29C paper bursting strength tester has the functions of parameter testing, parameter conversion, parameter adjustment, parameter memory, parameter printing, etc.
Related standards: ISO2759, GB/T 1539, GB/T 6545, TAPPI T807, TAPPI T810, JIS P8131.
Our Automatic Bursting Strength tester for Paper: easy operation, easy to ajust, stable performance. Suitable for bursting strength test of cartons, cardboard, corrugated cardboard, cigarette packs, beer boxes, shoe boxes, milk boxes, plastic hollow boards, leather, fabrics, high-strength aluminum foil, copper foil and other materials.
Key Specifications
Model | GT-N29C |
Testing Range
| 150-5600kpa |
Testing Accuracy | 0.01kpa |
Accuracy Rating | ≤0.5% |
Deformation Error | ≤1mm |
Oil Feeding Speed | 175±5ml/min |
Dia. of Upper Plate | 31.5±0.1mm |
Dia. of Lower Plate | 31.5±0.1mm |
Intensity of Pressure (Rubber Diaphragm) | 170-220kpa, when it at 10±0.2mm |
Holding Force | 0-1200kpa (adjustable) |
Units | kpa, kg/cm2, lb/in2 |
Printer | Thermal printer |
Dimension | 410×410×620mm |
Weight | 45kg |
