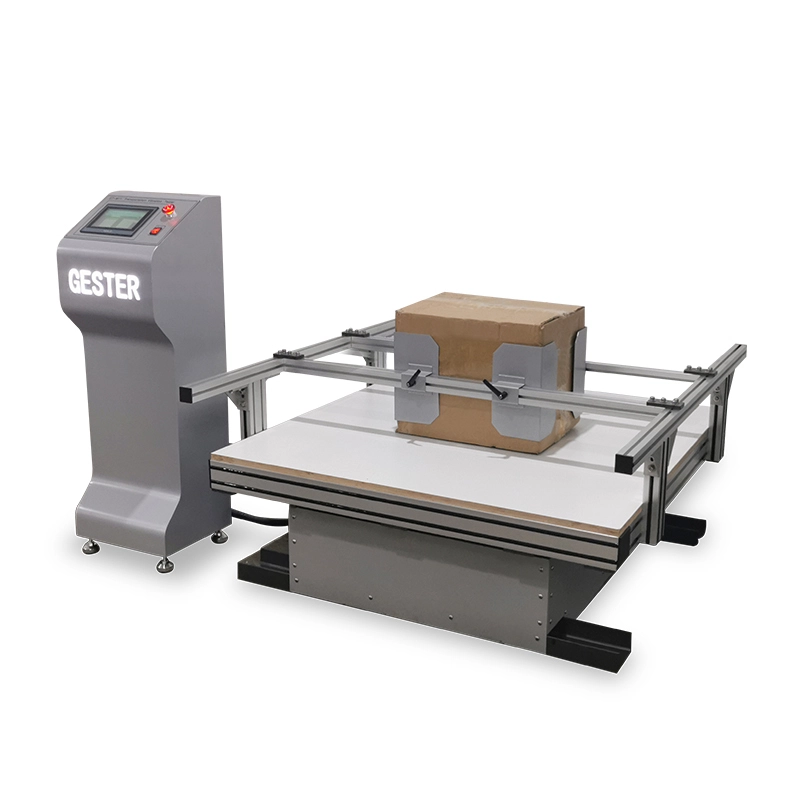

ISTA Transportation Vibration Tester GT-M11
Application
This ISTA Transportation Vibration Tester is designed to simulate the conditions goods experience during transportation, including rough roads, inclines, declines, and turning movements. During these simulated conditions, products may collide with one another or with the vehicle body, and may also be subjected to compression between items, which can lead to product damage. Through such testing, the durability of products and the effectiveness of their packaging can be evaluated and improved. It is primarily used for vibration testing of toys, electronic products, furniture, gifts, ceramics, communication devices, equipment, computers, and automotive components.
Standards:
ISTA, ASTM D999
Features of ISTA Transportation Vibration Tester
1. Have buffer start function, work medium noise very low.
2. Vibration frequency is clearly displayed on a digital indicator.
3. Uses a synchronous silent belt transmission system.
4. Guide-rail type specimen clamping system, providing easy operation and enhanced safety.
5. The base is constructed from heavy-duty channel steel and fitted with vibration-damping pads, allowing stable operation without the need for anchor bolts.
6. DC motor with adjustable speed control, offering smooth performance and high load-bearing capability.
7. Rotary vibration mode (commonly referred to as “monkey type”), compliant with European and American transportation testing standards.
Key Specification
Model | GT-M11 |
Vibration frequency | 100-300rpm |
Frequency precision | 2rpm |
Max load capacity | 100kg |
Displacement (Vibration amplitude range) | 25.4mm (1 inch) |
Vibration mode | Reciprocating (Rotary) |
Simulation vehicle speed | 25~40km/h |
Standard motions | Rotary DC Motion (Standard) |
Standard table Size | 1200x1200mm |
Timing functions | 99H99M |
Power supply | AC 220V 50/60Hz |
Dimensions | Main body: 1300×1320×880mm (L×W×H) Console: 360×320×1030mm (L×W×H) |
Weight | About 300kg |
