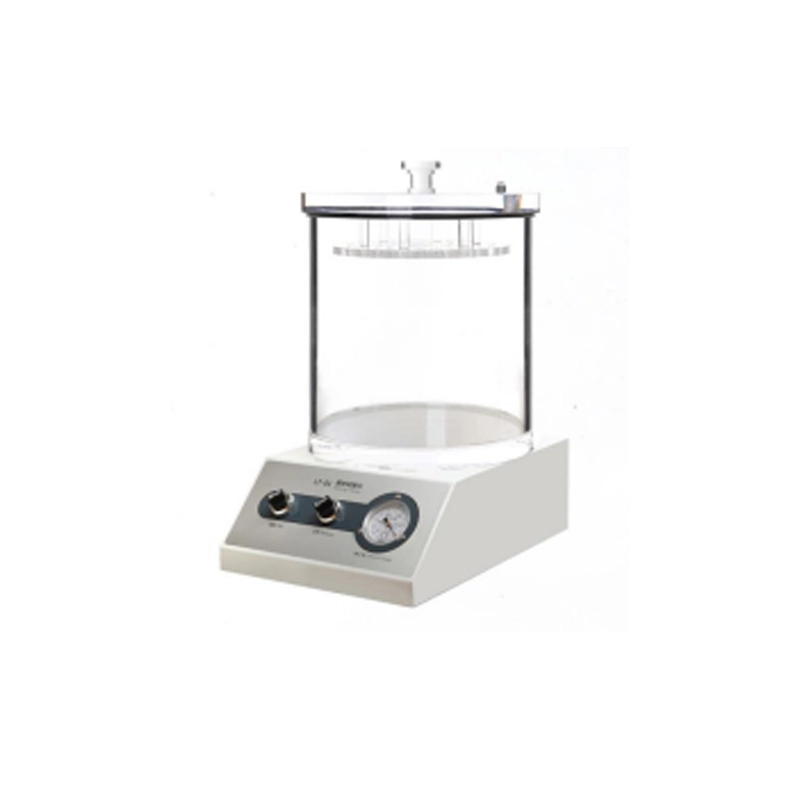

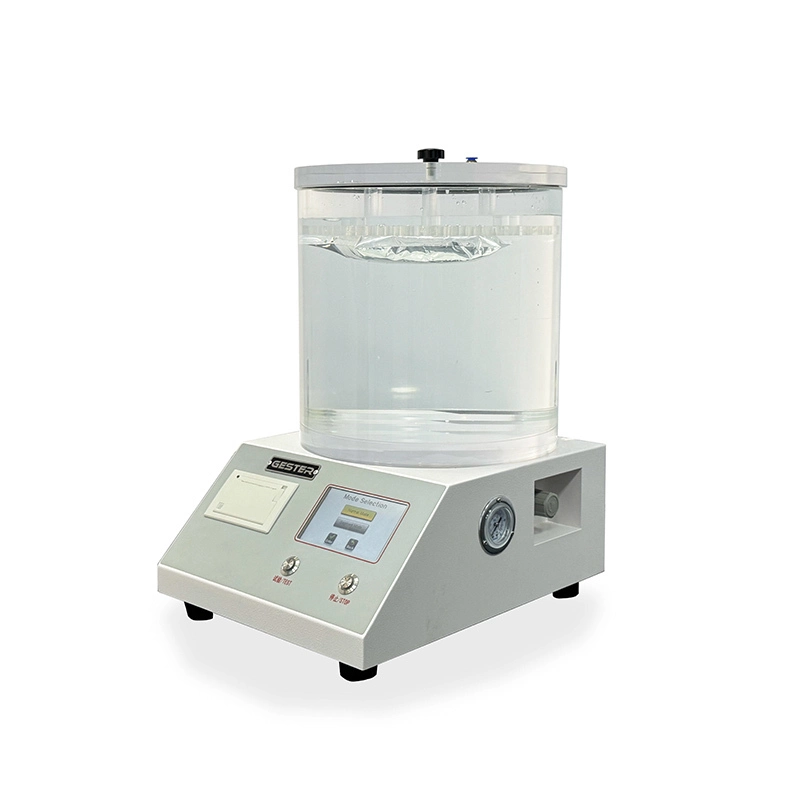

ASTM D3078 Sealing Tester GT-N69A
Application
ASTM D3078 Sealing Tester is applicable for the leakage tests of packages for food, drugs, medical instruments, daily chemical products, cars, electronic components, stationeries and etc. Also can be used to test seal performance of specimens after falling and compression tests.
Standards of Sealing Tester
GB/T-15171-1994, ASTM-D3078-94
Professional Sealing Tester Principle
By evacuating the vacuum chamber, the sample immersed in water generates a pressure difference between inside and outside, and determine the sealing performance of the sample by observing the gas outgoing and how the sample expands and restore to its original shape after vacuum release.
Sealing Tester Key Specification
Model | GT- N69A-1 | GT- N69A-2 | GT- N69A-3 |
Vacuum Chamber Effective Sizes | Φ270 mm×210 mm(H) | Φ360 mm×585 mm(H) | Φ460 mm×330mm(H) |
Vacuum | 0~-90kpa | ||
Accuracy | Level 1 | ||
Gas Supply Pressure | 0.25~0.6Mpa(2.5~6kgf/cm2) | ||
Work Environment | Temp.(20±10°C), humidity<85% | ||
Weight | 11kg | ||
Power | AC 220V/ 50Hz | ||
