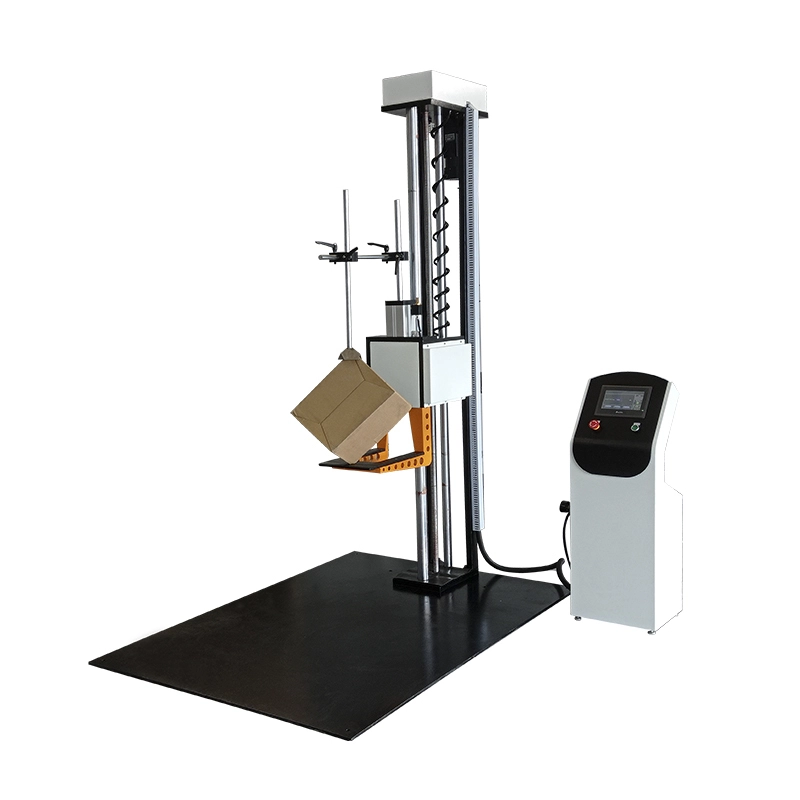

ISTA Single Wing Falling Tester GT-LC05-1
Product Introduction
Application
This ISTA Single Wing Falling Tester is designed to test the damage of product packaging and to evaluate the impact resistance during transport.
Can be on the package surface, angle, edge for free drop test, equipped with digital display height meter and using the decoder for a high degree tracking, which can accurately give the product drop height, with the default drop height error of not more than 2% or 10mm.
Package Single Wing Falling Tester Standards
ISO2248, JISZ0202-87, GB/T4857.5-92, ISTA
Features of Package Single Wing Falling Tester
1. This ISTA Single Wing Falling Tester adopts single-arm double-column structure, with electric reset, electric drop and electric lift device:
2. Easy to use; Unique hydraulic buffer device greatly improves the machine life, stability and security.
Single arm, can easily place the product.
3. Drop angle, the angle between the impact surface and the plane of the bottom plate is less than or equal to 5.°
ISTA Drop Test Machine Specification
Model | GT-LC05-1 |
Falling height | 400mm-1500mm(adjustable) |
Falling height error | ±10 mm(1%) |
Parallel error of impact panel | ≤ 1° |
The error angle of the falling surface of the specimen in the process of falling | ≤ 1° |
Impact panel size | 1700×1200(mm) |
Bracket arm size | 160×250×10(mm) |
Overall dimension of test bench | ≈1700×1200×2315(mm) |
Thickness of the bottom plate | 10mm (solid iron plate) |
Maximum specimen size (surface drop) | 750×750×1000(mm) |
Maximum weight of the specimen | 0-80Kg |
Test method | surface, angle, edge all-round drop |
Transmission mode | electric drive |
Net weight (kg) | About 300 kg |
Dimension (W×L×H) | 1900x1200x2360 mm |
Power supply | 1 phase AC 220V 50HZ |
ISTA Drop Test Machine details
This ISTA Single Wing Falling Tester is designed to test the damage of product packaging and to evaluate the impact resistance during transport.
