Touch Screen TPP Thermal Radiant Performance Tester GT-RC02A
Application
This Touch Screen TPP Thermal Protection Tester is used for testing the thermal protective performance (TPP) value and performing thermal protective evaluation (TPE) of flame-retardant fabric products, including flame-retardant protective clothing, fire suits, fire boots and gloves, under exposure to radiant and convective heat sources.
Principle
Under exposure to a specified heat flux, the time to second-degree burns is derived from the intersection point of the response curve (temperature rise curve of the calorimetric sensor) and the human tissue tolerance curve (Stoll curve). The higher the product of the heat flux level and the time to second-degree burns, the stronger the thermal protective performance of the fabric.
Thermal Protection Tester

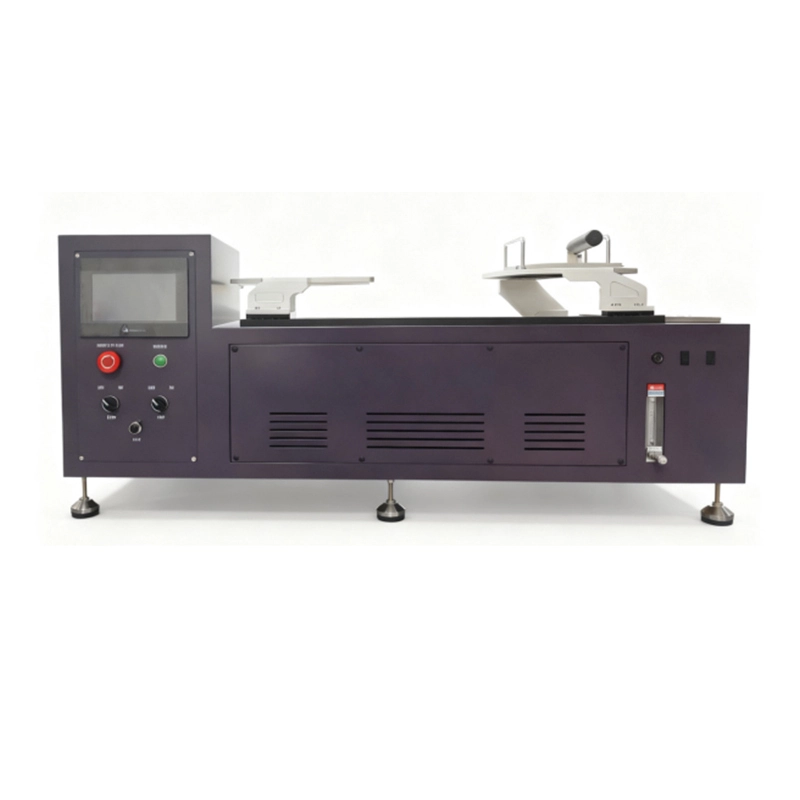

NFPA 1971 TPP Test Device
It is suitable for testing the thermal protection performance of single-layer or multi-layer materials, and for evaluating thermal protection materials for workers exposed to convective and radiant heat hazards.
As the test is being run, the tracing is compared with a second curve, called the Stoll's curve, which shows the blister point of human skin as a function of heat and time. The point of intersection between these two curves is the actual TPP rating. For the purpose of measuring actual time to burn, the TPP rating is divided in half to determine the number of seconds until human tissue reaches the second-degree burn point. Thus, the NFPA minimum requirement of a TPP rating of 35 equates to 17 ½ seconds until second-degree burns occur in a flashover situation.
Thermal Protection Tester Specifications
GB/T 38302-2019, ISO 17492-2019, ASTMF 2703, ASTMF 2700, NFPA 1971, XF 10, XF 634, GB 8965.1, NFPA 2112
| Model | GT-RC02A |
| Heat Flux Measurement Range | 0–167 kW/m² |
| Heat Flux Measurement Accuracy | ±2 kW/m² |
| Specimen Irradiated Size | ≥200mm*200mm, for testing flame-retardant protective clothing, fire-fighting suits and protective gloves |
| Convection Heat Source |
2 Merkel lamps (Heat flux: up to 60 kW/m²; Radiant heat flux: up to 40 kW/m²) |
| Rotor Propane Gas Flowmeter | Provides precise, stable propane flow for the burner |
| Radiant Heat Source |
9pcs of 500W infrared quartz lamps (proportional power control for 0–30 kW/m²radiant heat flux) |
| ASTM F2703 Copper Calorimeter | Accuracy ±3% F.S.; Weight 1000±10 g |
| Copper Calorimeter Copper Plate | Imported Oxygen-Free superconducting copper |
| Data Acquisition System Sampling Rate | ≥ 20 samples/second |
| Environment | 15–35℃ |
| Fume Hood |
Recommended internal dimensions ≥150×75×90 cm, including door height |
| Cushion Construction | Propane (Purity ≥95%, equipped with pressure reducing valve - cylinder & outlet pressure controlled) |
| Compressed Air | Customer-supplied |
| Cooling Water Source | Tap water (inlet & outlet) or optional chillerPower supply |
| Power supply | Single phase AC220V 50Hz |
| Dimension | 130×65×53cm (LXWXH) |
| Weight | Around 60kg |
TPP Test Device Application
For flame-retardant protective clothing, fire-fighting suits, fire boots, gloves, and helmet exteriors
