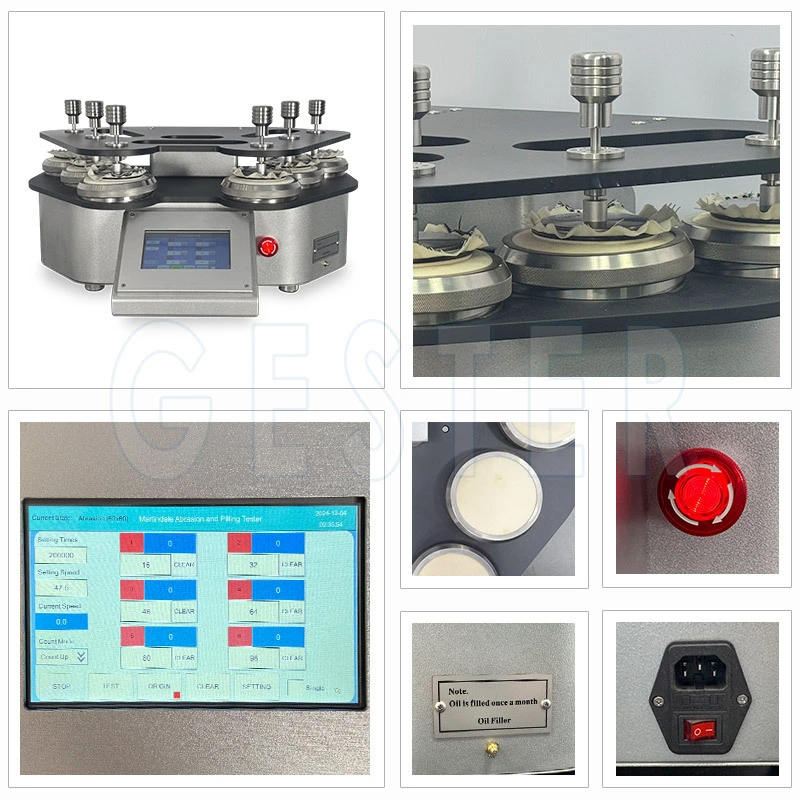

Martindale Abrasion and Pilling Tester GT-C13B
Martindale Abrasion and Pilling Tester GT-C13B
Application
The Martindale Abrasion and Pilling Tester GT-C13B offers a new and upgraded design, driven by a dual servo system. Its motion is based on a precise Lissajous trajectory, generated by advanced digital algorithms. The operation is highly accurate, featuring a fully automatic one-click calibration system.
Equipped with six versatile test modes—abrasion 60×60, pilling 24×24, 60-X, 60-Y, 24-X, and 24-Y—the system seamlessly switches modes with a single click, eliminating the need for additional hardware adjustments. This machine is ideal for evaluating the abrasion and pilling resistance of various textile structures. During testing, samples are subjected to low-pressure rubbing against specific abradents with continuously changing directions, and their performance is compared against standardized benchmarks.
Features
1. Standard Motion Trajectory: Supports both Lissajous figure and straight-line motion for diverse testing needs.
2. Flexible Testing Positions: Options include 4, 6, 8, or 9 working positions to accommodate multiple samples simultaneously.
3. Counting Methods:
Count-up mode for progressive tracking.
Count-down mode for preset testing cycles.
4. Standardized Sample Holders: Includes weights for 9 kPa and 12 kPa to ensure precise testing conditions.
5. User-Friendly Interface: Operated via a 7-inch color touch screen with support for both Chinese and English languages.
6. Durable Build: Weights and key components are constructed from stainless steel for enhanced durability and a sleek finish.
7. Robust Motion Plate: The top motion plate is crafted from 316 aluminum alloy to prevent distortion, ensuring accurate results over extended use.
8. Innovative Support Design: The upgraded structure eliminates reliance on steel ball support, reducing wear-related risks and ensuring even cover plate performance. The foldable cover plate enhances ease of sample loading and result observation.
9. Easy Maintenance: Integrated lubricating oil injection holes simplify maintenance, allowing for stable, long-term machine operation.
Applications in Textile Testing
This tester is indispensable for assessing the quality and durability of textiles, ensuring that fabrics meet the required abrasion and pilling resistance standards. It is suitable for a wide range of materials and settings, from industrial textile manufacturers to research facilities.
With its advanced technology, user-friendly design, and robust construction, the Martindale Abrasion and Pilling Tester GT-C13B provides a reliable solution for precise textile testing.
Standards
Abrasion: GB/T 21196.2, GB/T 13775, ISO 12947, ASTM D4966, CEN/TS-16611
IWS TM 112, M﹠S P19, Next 18, SN 198529, TWC 112, JIS L1096;
Optional ISO17076-2 ball plate method , EN388 Section6.1 ,EN 13770
Pilling: GB/T 4802.2, ISO12945-2, ASTM D4970, IWS TM 196, M﹠S P17, Next TM26, SN 198525, CEN/TS-16611
Product Parameters
Model | GT-C13B-4 | GT-C13B-6 | GT-C13B-8 | GT-C13B-9 | ||||
Working positions | 4 | 6 | 8 | 9 | ||||
Control mode | PLC control and touch screen display | |||||||
Counter range | 0~999999 times | |||||||
Test pressure
| Abrasion test | A)Specimen holder: (198 ±2)g B) Larger loading piece: (597±5)g C) The sum mass: (795± 7)g , for workwear , upholstery, bed linen and fabrics for technical use ( nominal pressure of 12kpa) | ||||||
A)Specimen holder: (198 ±2)g B) Smaller loading piece: (397±5)g C) The sum mass: (595± 7)g, for apparel and household textiles, excluding upholstery and bed linen (nominal pressure of 9kpa) | ||||||||
Pilling test | A) Stainless steel loading piece: (155 ± 1) g B) Specimen holder: (260 ± 1)g C) The sum mass: (415± 2)g | |||||||
Holder effective diameter | A) Abrasion Holder: Φ(28.65 ± 0.05)mm | |||||||
B) Pilling Holder: Φ(90 ± 0.10)mm | ||||||||
Rotational speed | 47.5± 2.5r/min | |||||||
Pressing weight | Mass: (2.5 ± 0.5) kg | |||||||
Diameter: Φ(120 ± 10) mm | ||||||||
Power supply | AC220V 50/60Hz | |||||||
Dimensions(L x W x H) | 60×55×41cm | 88×61×41cm | 90×62×41cm | 90×62×41cm | ||||
Weight | 75kg | 130kg | 145kg | 150kg | ||||
Accessories A
Abrasion weight and holder | 1set |
Pilling weight and holder | 1set |
Standard abradents fabric | 2 pcs for each head |
Standard backing foam 38mm | box of 60pcs |
Standard woven felt discs 140mm | 2 pcs for each head |
Standard woven felt discs 90mm | 2 pcs for each head |
Photographs (copy one) | 1set |
Sample cutting die(Φ38mm , Φ90mm, Φ140mm) | 1pc for each size |
Pressing weight | 1pc |
Auxiliary device for specimen mounting | 1pc |
Power line | 1pc |
Accessories B
EMPA Photographic standards for pilling test (3 x 4 knitted) | Optional |
EMPA Photographic standards for pilling test (3 x 4 woven) | Optional |
SM 50 Photographs for pilling test IWS + ASTM. 4 Sets 1-5 (Plain, Twill A, Twill B, Blanket)
| Optional |
Standard abradents fabric | Optional |
Standard backing foam Φ38mm
| Optional |
Standard woven felt Discs 140mm | Optional |
Standard woven felt Discs 90mm | Optional |
GT-C48 Pneumatic Sample Cutter | Optional |
Ball plate for ISO17076-2 | Optional |
CEN/TS16611 Test kits | Optional |
EN 13770 Method A Socks Abrasion Holder | Optional |
EN 388 Clamping Ring for Thick Material | Optional |
