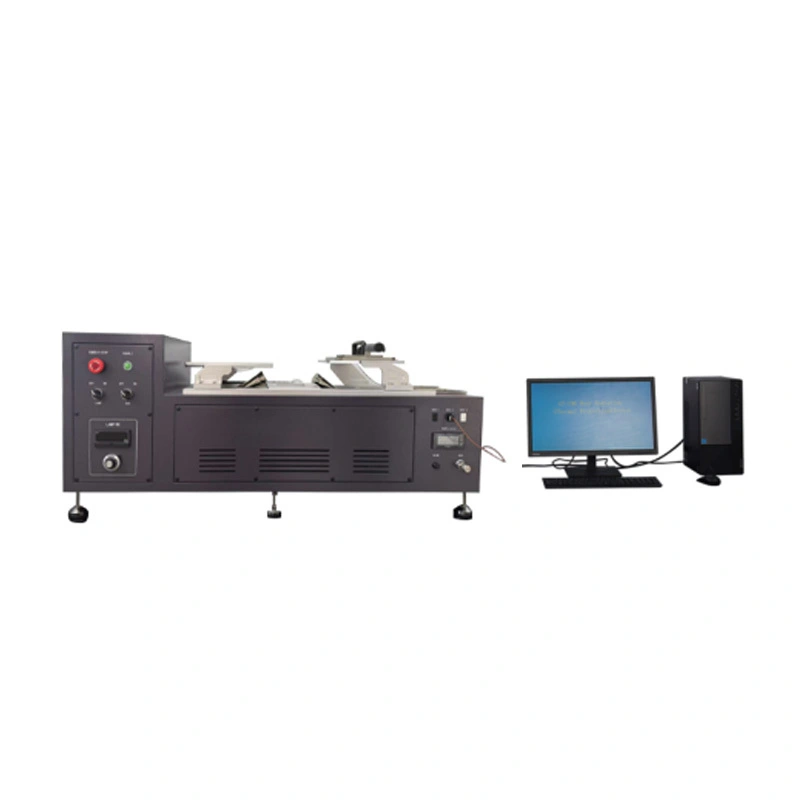

TPP Thermal Protection Tester with Computer GT-RC02B
Application
This is designed to test the thermal protective and insulation performance of exposed outer surfaces (including flame-retardant protective clothing, fire-fighting suits, fire boots, gloves, and helmet exteriors) made of flame-retardant fabrics when exposed to radiant and convective heat sources. It supports calculations for TPP (Thermal Protective Performance) value, TPE (Thermal Protective Evaluation) test, and FFF (Fabric Flammability Factor) algorithm.
Principle
Under specified heat flux, the second-degree burn time is derived from the intersection of the response curve (calorimetric sensor temperature rise curve) and Stoll curve (human tissue tolerance curve). Higher product of heat flux level and second-degree burn time denotes superior thermal protection of the fabric.
Standards
GB/T 38302-2019, ISO 17492-2019, ASTMF 2703, ASTMF 2700, NFPA 1971, XF 10, XF 634, GB 8965.1, NFPA 2112
Key Specification
Model | GT-RC02B |
Heat Flux Measurement Range | 0–167 kW/m² |
Heat Flux Measurement Accuracy | ±2 kW/m² |
Specimen Irradiated Size | ≥200mm*200mm, for testing flame-retardant protective clothing, fire-fighting suits and protective gloves |
Convection Heat Source | 2 Merkel lamps (Heat flux: up to 60 kW/m²; Radiant heat flux: up to 40 kW/m²) |
Rotor Propane Gas Flowmeter | Provides precise, stable propane flow for the burner |
Radiant Heat Source | 9pcs of 500W infrared quartz lamps (proportional power control for 0–30 kW/m²radiant heat flux) |
ASTM F2703 Copper Calorimeter | Accuracy ±3% F.S.; Weight 1000±10 g |
Copper Calorimeter Copper Plate | Imported Oxygen-Free superconducting copper |
Data Acquisition System Sampling Rate | ≥ 40 samples/second |
Environment | 15–35℃ |
Fume Hood | Recommended internal dimensions ≥150×75×90 cm, including door height |
Gas Source | Propane (Purity ≥95%, equipped with pressure reducing valve - cylinder & outlet pressure controlled) |
Compressed Air | Customer-supplied |
Cooling Water Source | Tap water (inlet & outlet) or optional chiller |
Power supply | Single phase AC220V 50Hz |
Dimension | 130×65×53cm (LXWXH) |
Weight | Around 60kg |
Accessories
Standard accessories | 1pc | Computer |
| 1pc | DAQ Standard Test Software |
| 1pc | ASTM F2703 Dedicated Copper Calorimeter (for testing) |
| 1pc | ASTM F2703 Dedicated Copper Calorimeter (for calibration) |
| 1pc | Power Line |
Optional accessory | Optional | Chiller Unit |
