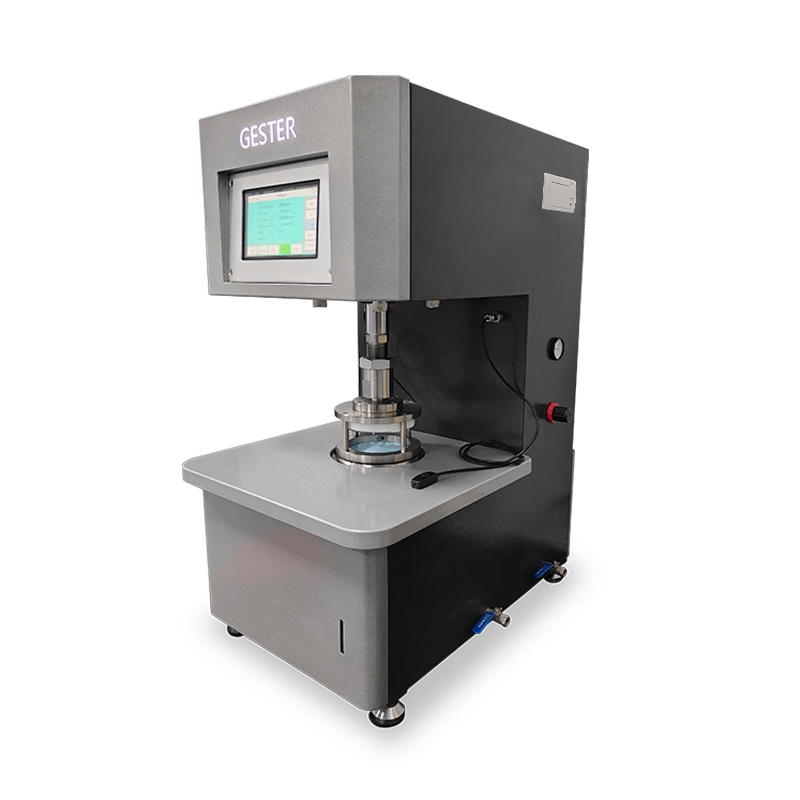

Hydrostatic Head Tester LCD Display GT-C26A
Hydrostatic Head Testing Machine C26A
Application
Hydrostatic pressure head tester is used to test the waterproof properties of fabrics through waterproofing work such as canvas, coated fabrics, hood fabric, tarpaulin, rain-proof fabrics and geotextile.
Feature
1. Touch-Screen display with English menu.
2. Internally installed water tank design and original water pressure balance system makes the rate of rise stable and exact.
Standards
AATCC 127 Option 2, ISO 811, ISO 1420, GB/T 4744, GB/T 9082, FZT 01004 , DIN 53886 , EN 20811, EN 13726-3, EN 1734, BS 2823, WSP 80.6, JIS L1092-7.1.1 Method A
Fabric Hydrostatic Head Tester Key Specification
|
Model |
GT-C26A |
|
Testing range |
500pa-200kpa |
|
Water pressure increase rate |
1kpa-30kpa |
|
Accuracy |
0.2%F.S |
|
Clamping method |
Pneumatic clamping |
|
Specimen test area |
100cm2 |
|
Testing mode |
1) P. Rise 2) Const P & Timing 3) Const P & Time 4) Water Penetration 5) Fatigue |
|
Testing unit |
KPa, PSI, mmH2O, cmH2O, mbar, mmHg |
|
Power supply |
AC 220V 50/60HZ |
|
Dimension |
600 x 450 x 640mm (L x W x H) |
|
Weight |
60 kg |
Accessories
|
Standard accessories
|
1Set |
100cm2 testing sets |
|
1Set |
Calibration plate |
|
|
2pcs |
Rubber ring |
|
|
1pc |
Power line |
|
|
Optional accessories
|
Optional |
7.8cm2 testing sets |
|
Optional |
Fixtures of other testing range |
Product Details
Automatic Hydrostatic Head Tester Details
