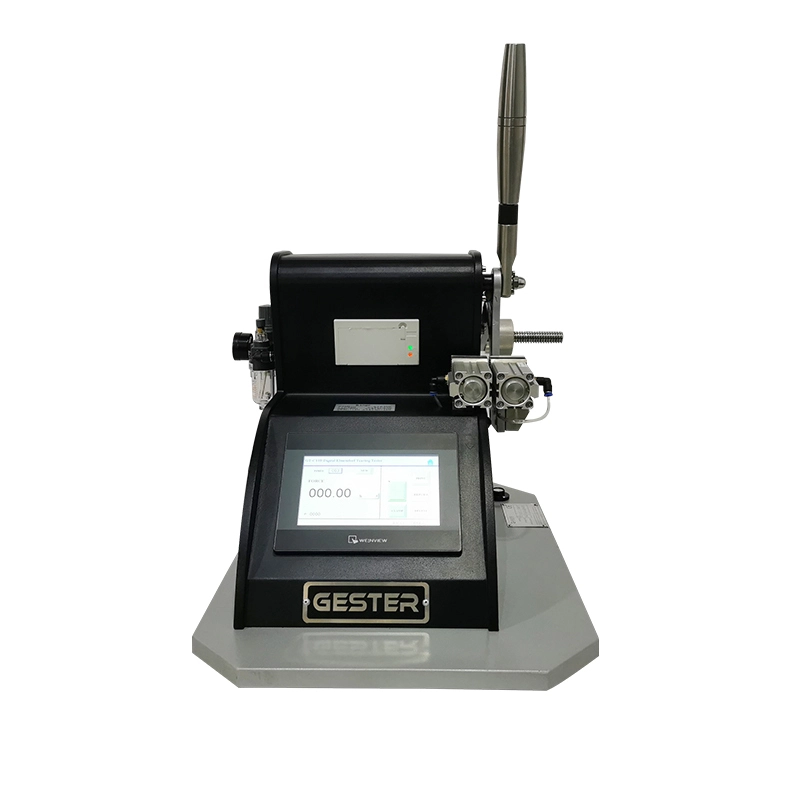

Digital Elmendorf Tearing Tester GT-C11B
Brief introduction of the Elmendorf Tearing Tester
Application
This Digital Tearing Tester is specifically designed for conducting Elmendorf method tearing resistance tests on textiles, non-woven fabrics, paper, paperboard, thin films, ventilation tape, metal sheet materials, and more. It ensures high-quality testing across a range of materials
Feature
1. Advanced calculation methods make sure precision test & good repetition.
2. Microcomputer system, can do auto test, calculate, analysis result, print test report.
3. upload the test data.
4. Humanity operation system, Chinese and English operation interface with easy & convenience methods.
5. Can look up all the datum & statistical result in mainframe freely.
6. Test unit can convention between N, gf, cN and lbs, suitable for different standards requirements automatically.
7. Cut sample automatically, making sure same shape of notch, reducing operation strength.
Standards
Textile: GB/T3917.1, ASTM D1424, DIN 53862, ISO13937-1, ISO4674-2, ISO9290, M&S P29, NF G07-149
Paper: GB/T455, APPITA P400, ASTM D689, BS 4468, CSA D9,
DIN 53128, EN 21974,ISO 1974, JIS P8116, PAPTAC D9, SCAN P11, SNV 198482, TAPPI T414, UNI 6444
Plastic: GB/T11999, ISO6383-2, JIS K7128-2
Non-woven: ASTMD5734
Range of tearing force | 1600CN, 3200CN, 4800CN, 6400CN, 8000CN, 9600CN,11200CN, 12800CN |
Control mode | Touch screen |
Accuracy | Accuracy≤ ±1%F·S |
Incision length | 20+/-0.2mm |
Rip length | 43mm |
Sample clamping methods | Pneumatic clamp |
Power supply | AC 220V 50/60HZ 100W |
Dimensions | 490 x 430 x 680mm (L x W x H) |
Weight | 50kg |
Accessories
Standard Accessories
| 1pc | Load A |
1pc | Load B | |
3pcs | Load C | |
1pc | Sample template | |
1pc | English operation software | |
1pc | Cable connect with PC | |
Optional Accessories
| 1Set | Computer |
1Set | Air Compressor |
