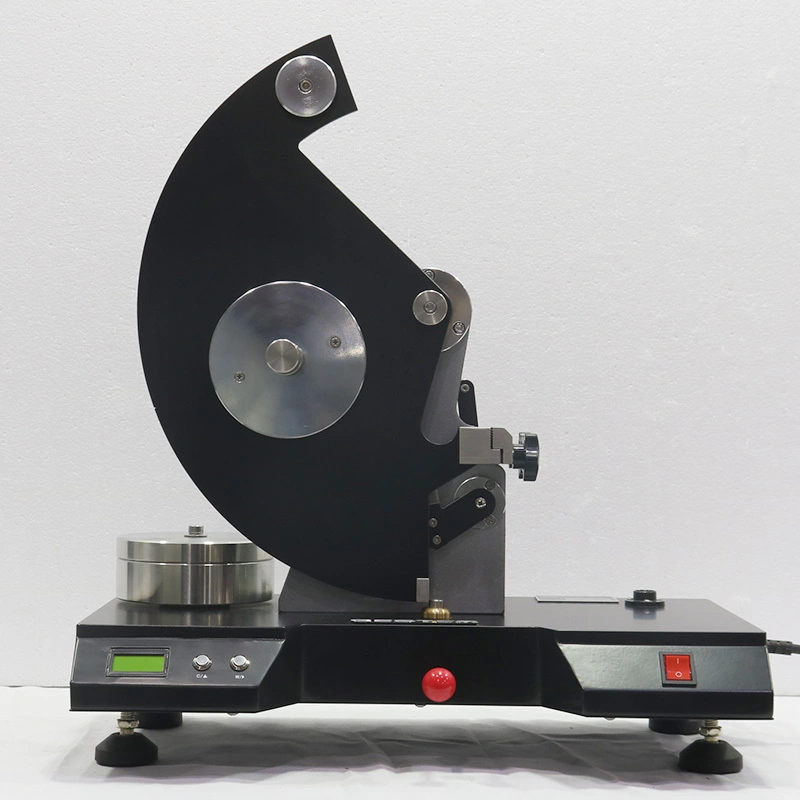

Elmendorf Tearing Tester Falling-Pendulum Type GT-C10B
Application
Elmendorf Tearing Tester Falling-Pendulum Type is applied to the determination of tear resistance of textile, and also can be used for paper, plastic sheets, film, electrical tape, sheet metal etc.
Feature
LCD display, simple to operate and easy to understand.
Microprocessor can automatically detect and analyze data. It features precision test, reliable performance and simple operation.
Elmendorf tear tester all can meet the related requirements of GB/T3917.1-2009 .
Apply to the determination of tear strength of various woven fabrics and other materials, such as paper, plastic sheets, film, electrical tape, sheet metal and so on.
Product Parameters
| Standards | ||
| Textile | GB/T 3917.1,ASTM D 1424,DIN 53862,EN ISO 13937-1,ISO 4674-2, ISO 9290,M&S P29,NEXT 17,NF G07-149 | |
| Paper | GB/T 455,APPITA P 400,ASTM D 689,BS 4468,CSA D9,DIN 53128, EN 21974,ISO 1974,JIS P 8116,PAPTAC D9,SCAN P11,SNV 198482, TAPPI T414,UNI 6444 | |
| Plastic | GB/T 11999,ISO 6383-2,JIS K 7128-2,NF T54 141 | |
| Non-woven fabrics | ASTM D 5734,WSP 100.1 | |
| Key Specification | ||
| Model | GT-C10B | |
| Range of tearing force | 0～16N (A) | |
| 0～32N (A+B) | ||
| 0～64N (A+B+C) | ||
| Accuracy | ≤±1%F·S | |
| Rip Length | 43mm | |
| Power Supply | AC220V 50Hz 20W | |
| Dimensions | 400x ;210x ;395mm | |
| Weight | 30kg | |
| Accessories | ||
| Standards accessories | 1pc | Pendulum B (16N) |
| 1pc | Pendulum C (32N) | |
| 1pc | Sample Template | |
| 1pc | Power Line | |
