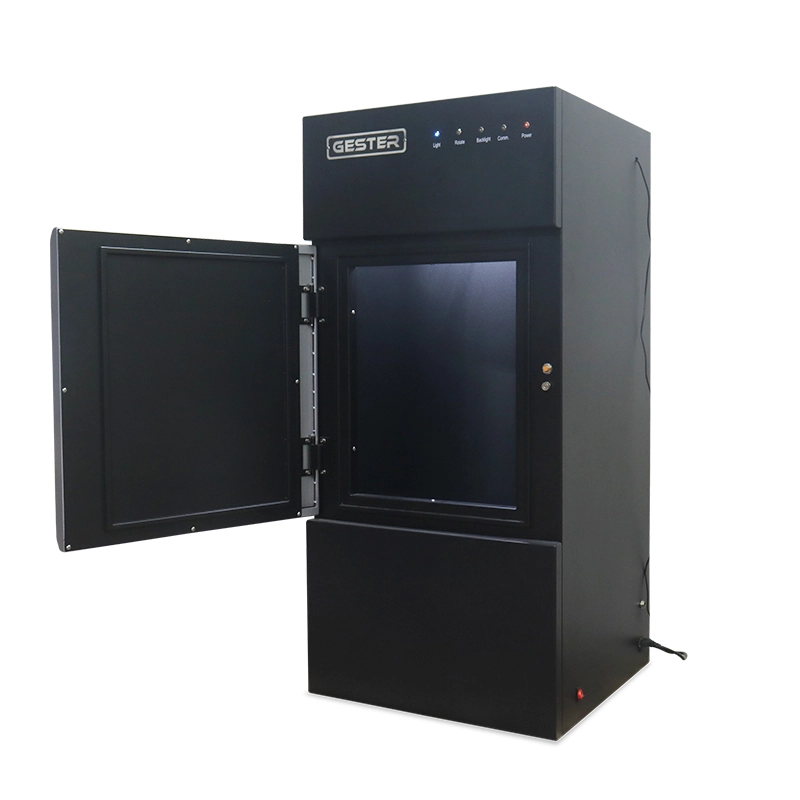

Automatic Fabric Drape Tester GT-C22

Product Description

Application

Fabric drape tester to test the dynamic and statics drape property of all kinds of fabrics, include drape coefficient, lively rate, corrugated surface and aesthetic coefficient of the fabric.

Fabric drape tester is designed to use the testing method for fabrics such as skirt, suit pants, curtains, etc.

Fully cyber-control drape-o-meter is designed to measure drape property from the deformation by gravity of an initially horizontal annular ring of fabrics. A circular fabric specimen is held concentrically between two smaller horizontal discs. An annular ring of fabric is allowed to drape into folds around the lower supporting disc.The shadow of the draped specimen is cast onto a sandblasted glass of same size as the un-supported part of the fabric specimen.The outline of the shadow is taken by a digital camera.The photographic will be sent to a computer to determine the shadow area with help of special software.The drape coefficient is calculated from the shadow area and original area of fabric specimen.

Drape test Standards
BS 5058, FZ/T01045, ISO 9073-9 Method B

Feature
1.Working mode: microcomputer control, CDD image formation, images and dates are processing automatically by all computer controlled.
2.Statistics, analyze, save and output a various chart and data.
3.Photographic method instead of weighing mass method.
4.Equipped with Sony camera to obtain high solution picture.
5.Complies with BS standard and other international standards.
6.Simple operation,higher accuracy than old test method.
7.Can provide dynamic test result, more perfect to simulate the condition of fabric when it is dressed.

Featuring precision construction, automated operation and reliable performance, this fabric drape tester tests the drape characteristics of various fabrics, providing both static and dynamic drape indices.

GESTER’s Drape Tester measures both static and dynamic fabric drape characteristics. It outputs: drape coefficient, wave number, wave amplitude/angle uniformity, dynamic-static coefficient ratio, maximum/minimum wave amplitude/angle, and average amplitude (single value, mean value, and coefficient of variation).

Additionally, it generates statistical data for all above indices from both fabric faces separately.

Featuring precision engineering, automated yet user-friendly operation, and reliable performance, this drape tester tests drape characteristics of all fabric types - including fancy patterns and sheer translucent fabrics.

It assists textile manufacturers in optimizing fabric performance during production, while enabling objective evaluation of drape characteristics and aesthetic properties for apparel design.

Primary users include: textile/clothing manufacturers, quality inspection agencies, and research institutions.

Fabric Drape Tester Key Specification

Accessories
