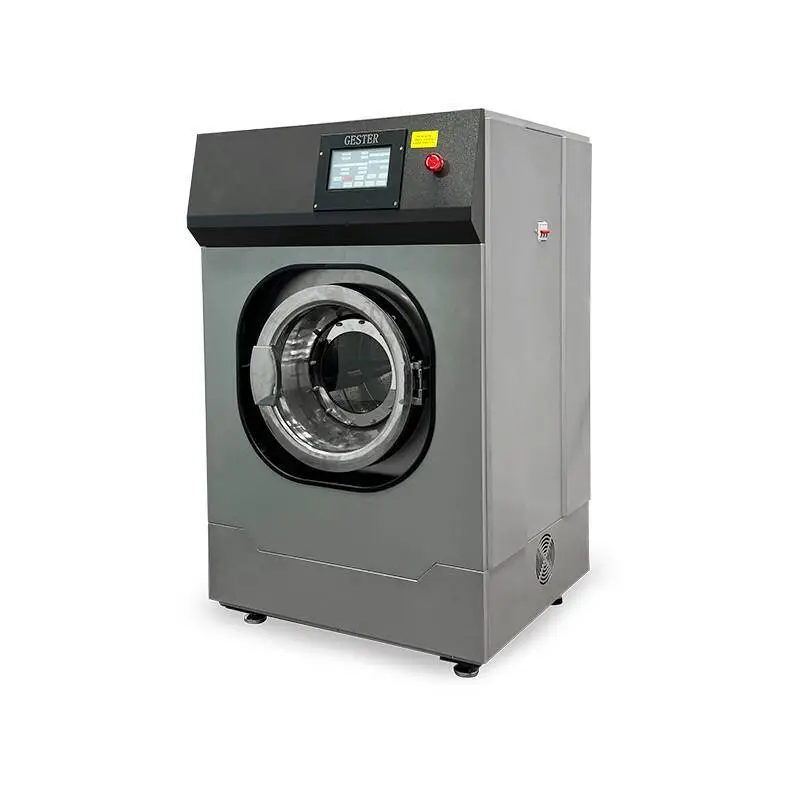

Automatic Shrinkage Tester For Fabric GT-D34
Application
Automatic Shrinkage Tester accelerated washing apparatus for knitted and woven fabrics to assess shrinkage in accordance with international test methods. Also used for assessing fabric stability, color fastness, finish durability, spirality and pilling to washing.
Feature
Automatic Shrinkage Tester MCU program controller, build-in ten sets of washing program that ISO required, and operator program capability.
No need to fix to ground with foot screw, operating stably;
Soft link between rotating cage and rack, low vibration and noise;
Variable frequency motor, switch smoothly between high speed and low speed, low temperature increment of motor.
Blue fluorescence LCD display, test state dynamic icon shows, easier to catch the eye and operation convenience.
Non-touch capacitance water level meter to measure water level accuracy and reliable
Product Parameters
| Standards | ||
| GB/T8629, GB/T8630, ISO6330/5077, FZ/T70009, BS4923, EN25077/26330, JIS L1909, IWSTM31,ISO19954, SATRA TM158 | ||
| Key Specification | ||
| Model | GT-D34 | |
| Washing model | front-loading, horizontal tumbling-box type | |
| Diameter of tumbling-box | 520±1mm | |
| Depth of tumbling-box | 315±1mm | |
| Number of Lifter | 3 | |
| Height of Lifter | 53±1mm | |
| Rotating method normal model: Clockwise Rotating Anticlockwise Rotating Soft model: Clockwise Rotating Anticlockwise Rotating | 12±0.1s, pause 3±0.1s, 12±0.1s, pause 3±0.1s 3±0.1s, pause 12±0.1s, 3±0.1s, pause 12±0.1s | |
| Rotation speed | Washing 52r/min Low Spin (500±20)r/min High Spin (800±20)r/min | |
| Fill water time | < 2min (water in high level 13cm) | |
| Drainage duration | < 1min (water in high level 13cm) | |
| Heating power | 5.4±2%KW | |
| Load weight | 5kg | |
| Power supply | Ac 380V 50Hz 6500W | |
| Instrument size | 990×980×1450mm(L×W×H) | |
| Weight | 280kg | |
| Accessories | ||
| Standard accessories | 1pc | Water Faucet |
| 1pc | Water Inlet pipe | |
| 4pcs | Foot Margin | |
