Snap Button Pull Test Machine Tensile Strength Tester GT-C09

Brief Introduction of the product

Application
The aim of snap button test is defined responsibility of garment manufacturer, make sure button, push-button and fixed accessories can fixed on garments suitable. To avoid button fall off garments & risk of infant eating. So, all the button, push-button & fixed accessories on garments must pass snap button strength test. This Tensile Tester machine can do even and vertical tensile test of all kinds of buttons on garments. Test fastness degree of button reach relative security standard or not.

Gester Snap Button Pull Test Machine is used to test pull strength of ornaments on garment, toy, footwear and others including button, bow and etc. Snap button pull test is a must-do test especially for Baby and children’s clothing and shoes. The test aims to use to button snap pull tester with suitable grips to pull the ornament to know if the ornament would be pulled off garment or not. The ornament falling off or broken button may cause infants or children the risk of ingestion. The button pull test methods includes 16CFR1500.51-53, ASTM PS79-96, ASTM F963, EN 71-1，M&S P115A and etc.

Procedure & Principle of Pull Test Machine

Snap button pull tester is a portable tensile tester to do vertical tensile test. Snap button pull test method 1: Amount the sample with ornament in lower grip and choose the suitable upper grips to fix on the force gauge. Clamp the ornament and apply certain force(for example: 15LB) to pull test the ornament for certain time, and then to check if the ornament is off or damaged or not. Method 2: pull the ornament off to know the force of pull off.

Feature

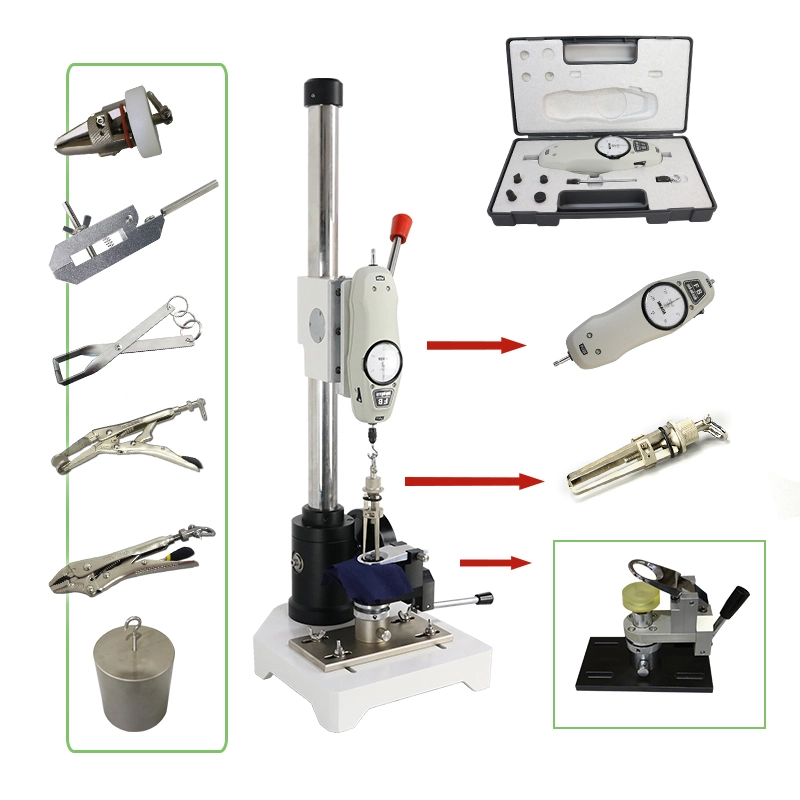

1.It is a simple but effective design mainly consisting of a high precision gauge, a sturdy required by standards & regulations is be fixed horizontally (constant force is applied to secure the sample) so that snap or other accessories attached in fabric can be clamped into.
2.Moreover, a standard weight is also offered so that it can be regularly checked if it meets the safety requirements.

Product Parameters

Button pull test is employed to work out the pulling strength of any sort of button and snaps utilized in garments. it's also wont to determine

the holding or breaking strength of prong ring attached snap fasteners onto garments to make sure the button fixed on the clothes product properly.

Accessories

Specification

Product Details
