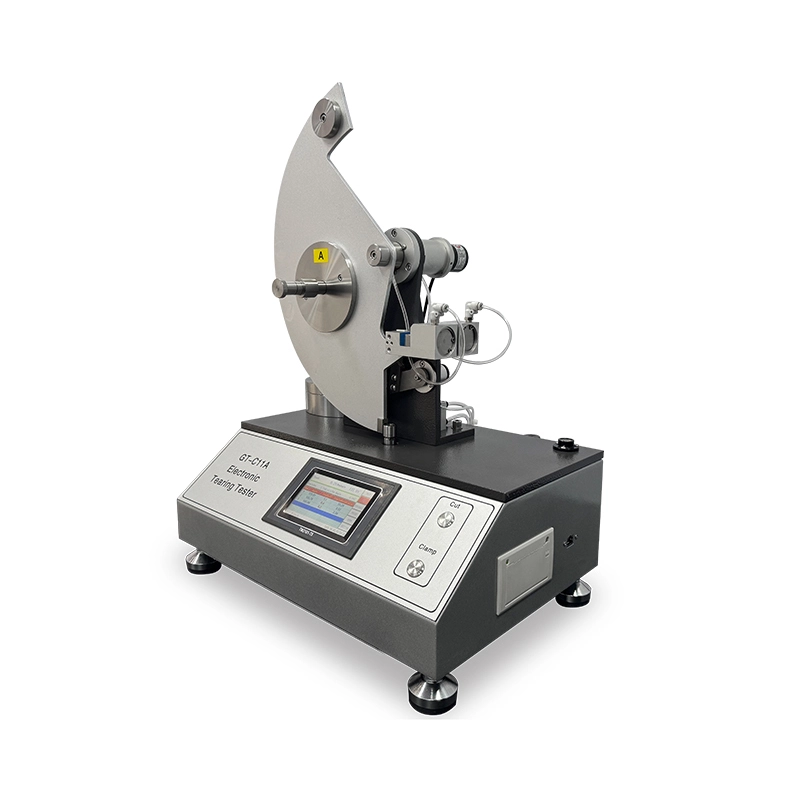

Elmendorf Tearing Strength Tester GT-C11A
Application
This Elmendorf Tearing Strength Tester is designed for tearing resistance of textile, non-woven fabric, paper, paper board, thin film, ventilation tape, metal sheet material and etc.
Feature
- 1.Advanced calculation methods make sure precision test & good repetition.
- 2.Microcomputer system, can do auto test, calculate, analysis result, print test report, upload the test data.
- 3.Humanity operation system, Chinese and English operation interface with easy & convenience methods.
- 4.Can look up all the datum & statistical result in mainframe freely.
- 5.Test unit can convention between N, gf, cN and lbs, suitable for different standards requirements automatically.
- 6.Pneumatic sample grips and pendulum bob released to make sure equal clamping force.
7.Cut sample automatically, making sure same shape of notch, reducing operation strength.
Product Parameters
Key Specification
Range of Tearing Force | 16N / 32N / 64N |
Accuracy | Accuracy≤ ±1%F·S |
Incision Length | 20+/-0.2mm |
Rip Length | 43mm |
Sample clamping methods | Pneumatic clamp |
Power supply | AC 220V 50/60HZ 100W |
Dimensions | 560 x 420 x 480mm (L x W x H) |
Weight | 40kg |
Standards
Textile | GB/T3917.1, ASTM D1424, DIN 53862, ISO13937-1, ISO4674-2, ISO9290, M&S P29, NF G07-149 |
Paper | GB/T455, APPITA P400, ASTM D689, BS 4468, CSA D9, DIN 53128,EN 21974,ISO 1974,JIS P8116,PAPTAC D9,SCAN P11, SNV 198482, TAPPI T414, UNI 644 |
Plastic | GB/T11999, ISO6383-2, JIS K7128-2 |
Non-woven | ASTMD5734 |
Accessories
Standards accessories | 1pc | Pendulum B (16N) |
1pc | Pendulum C (32N) | |
1pc | Sample Template | |
1pc | English operation software | |
1pc | Cable connect with PC | |
| Optional accessories | 1pc | Air compressor |
1pc | Desktop Computer |
