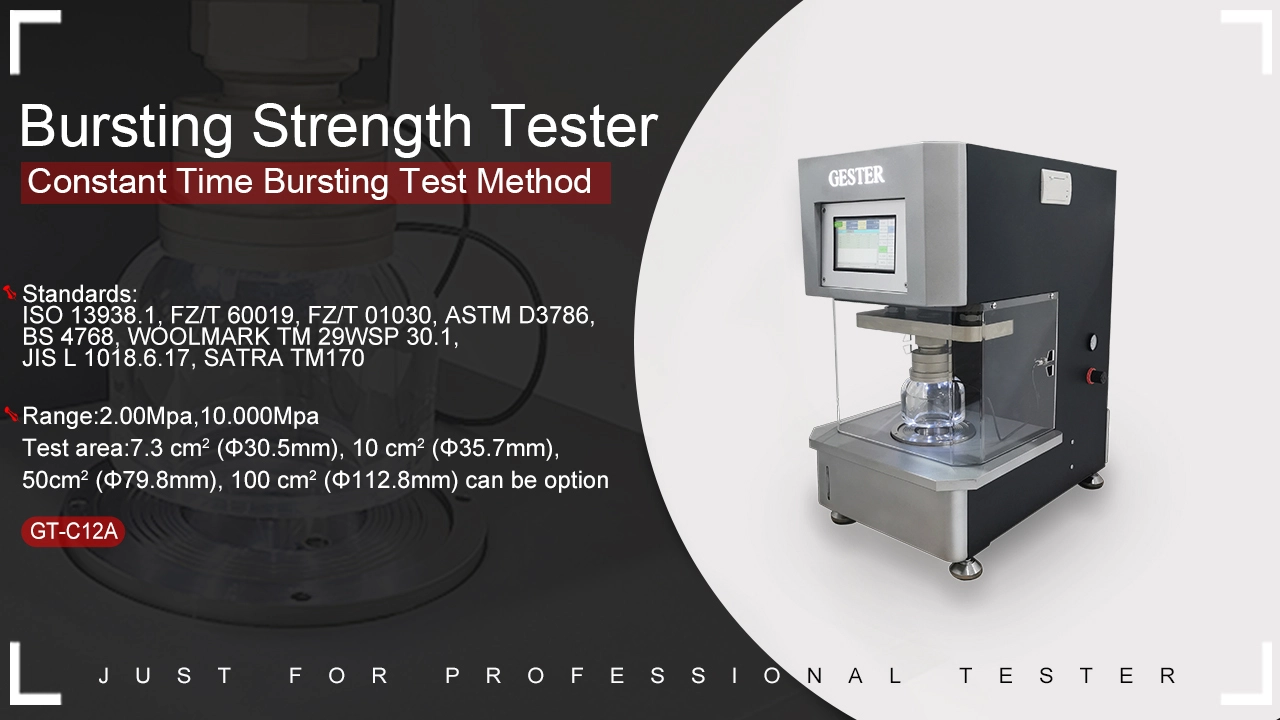

Fabric Hydraulic Bursting Strength Tester GT-C12A
Fabric Hydraulic Bursting Strength Tester GT-C12A
Application
This Textile Testing Equipment For determining the bursting strength of woven or knitted fabrics, non-woven, paper, leather and board by application of a pneumatic load under a rubber diaphragm of a specific area. Provide with a digital readout of pressure with peak value hold facility, renewable rubber diaphragms, and manual clamping device with acrylic bell, forward reverse and neutral drive system. Provide accurate elongation information of fabrics, up to 0.1mm.
Feature:
1.This bursting strength tester use pneumatic method, meet multinational standards and equipped with several changeable test clamp.
2.The simple interface touching screen controller is easy and simple to handle.
3.The specimen was clamped firmly by the pneumatic force which can also save effort.
4.The test cover was made up of high-transparent glass with LED light inside which can observe the specimen easily
5.The Bursting Strength Testing Machine can induct the burst automatically which is much more sensitive and reliable.
6.The AC servo drive system with low noise and wide range of applications.
8.Pneumatic Bursting Strength Tester Test Methods: Constant Time Bursting.
7.The tester bring saving and printing functions and support on-line operation.
8.Provide on-line interfaces, professional detection software which can be used to analysis testing result.
Standards
ISO 13938.1,FZ/T 60019,FZ/T 01030,ASTM D3786,BS 4768,WOOLMARK TM 29, WSP 30.1,JIS L 1018.6.17
Key Specification
| Model | GT-C12A-1 | GT-C12A-2 |
| Range | 2.00Mpa | 10.000Mpa |
| The min. Division value | 0.001Mpa | 0.003Mpa |
| Test area | 7.3 cm2 (Φ30.5mm),10 cm2(Φ35.7mm), 50cm2(Φ79.8mm),100 cm2(Φ112.8mm) can be option |
|
| Thickness of rubber diaphragm | ≤2mm | |
| Pressure speed | 100ml/min- 500ml/min | |
| Accuracy | ±1 mm, when the height at burst up to 70 mm | |
| Testing units | Kpa,kgf/ cm2,atm,mmHg,lb/in2free shift | |
| Test method | Constant Rate Bursting, Constant Expansion, Constant Pressure, Constant Time Bursting |
|
| Output | Printer ,display output,and can be connected to the computer | |
| Power supply | AC 220V 50/60HZ 500W | |
| Dimensions | 550×450×700mm | |
| Net weight | 125kg | |
| Accessories | ||
| Standard accessories | 1 set | Test set of 7.3cm²(φ30.5mm) |
| 1 set | Test set of 50cm²(φ79.8mm) | |
| 1pc | Wrench | |
| 1pc | Stainless steel calibration plate | |
| 1pc | Rubber diaphragm | |
| 1pc | English operation software | |
| 1pc | Cable connect with PC | |
| Optional accessories | Optional | Other test set |
| Optional | Rubber diaphragm | |
| Optional | Air compressor | |
