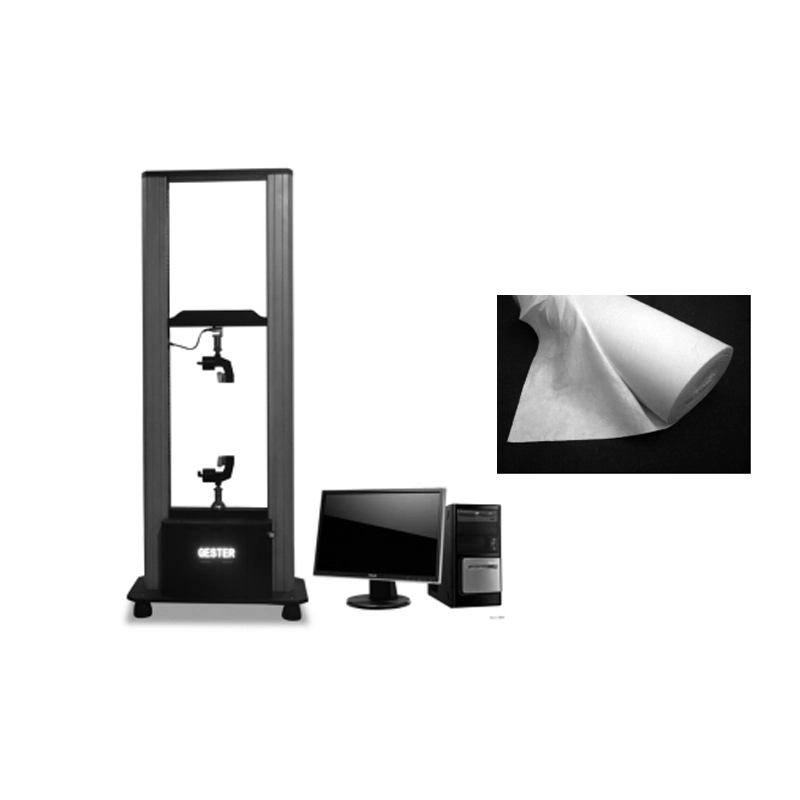

Geotextile Universal Tensile Strength Testing Machine GT-C01-3
Tensile strength geotextile Application
This computerized universal testing machine is designed for testing geosynthetics in transportation, water conservation, tunnel, construction those industry. universal strength testing machine is concluding stretch, tearing, busting, peeling, seam testing of geotextile, composite geotextiles, geogrid, geomembrane.
Geotextile Tensile Tester Feature
1.Universal Tensile Strength Testing Machine Double-column gantry structure, generous shape with operating stability.
2.AC servo system drive, ball screw, suitable for all kinds of geotextile tensile tests.
3.Have security protect measures of limiting displacement, over capacity, force value.
4.Import sensor, the force precision above 0.2% F.S.
5.Equip with online port, specialty development material strength test software. It can print and save report & provide test data for geotextile assaying.
6.Can provide all kinds of relative standard test function or customized according to customer.
7.utm universal testing machine is software can do data analysis of breaking point, break off point, yield point, initial modulus and Elasticity plasticity deformation, easy to do mechanics test analysis of varieties of materials.
Key Specification
Model | GT-C01-3 |
Speed Adjust Range | 30KN, 50KN, 100KN |
Force Resolution | 1/100,000 |
Force Accuracy | ≤+/-0.2% F.S |
Stroke Resolution | 0.01 mm |
Test Speed | 0.01-500mm/min |
Stroke Space | 1000mm |
Force Unit Switch | Kgf, N, Ibf, g, ton, Mpa |
Machine Drive | Servo Motor Drive, Synchronous Wheel and Precision Ball Screw Drive |
Operate Control | Can use Operation Screen, Connecting with Computer, Pad and Cellphone |
Dimensions (WxDxH) | 1050×700×1750mm |
Weight | 300kg |
Power Supply | AC380V 50/60HZ 1.5KW |
Standards | GB/T13763, 14800, 19978, EN ISO 12236, ASTM 4595, ASTM D 4632 |
Accessories
Standard accessories | 1set | Manual Grips for Tensile, Tearing |
1set | Manual Grips for CBR Bursting | |
1pc | English Operation Software | |
1pc | Cable Connect with PC | |
1pc | Load cell | |
Optional accessories | Optional Optional | Other Grips and Load Cell |
Optional
| Desk Top Computer |
