Application

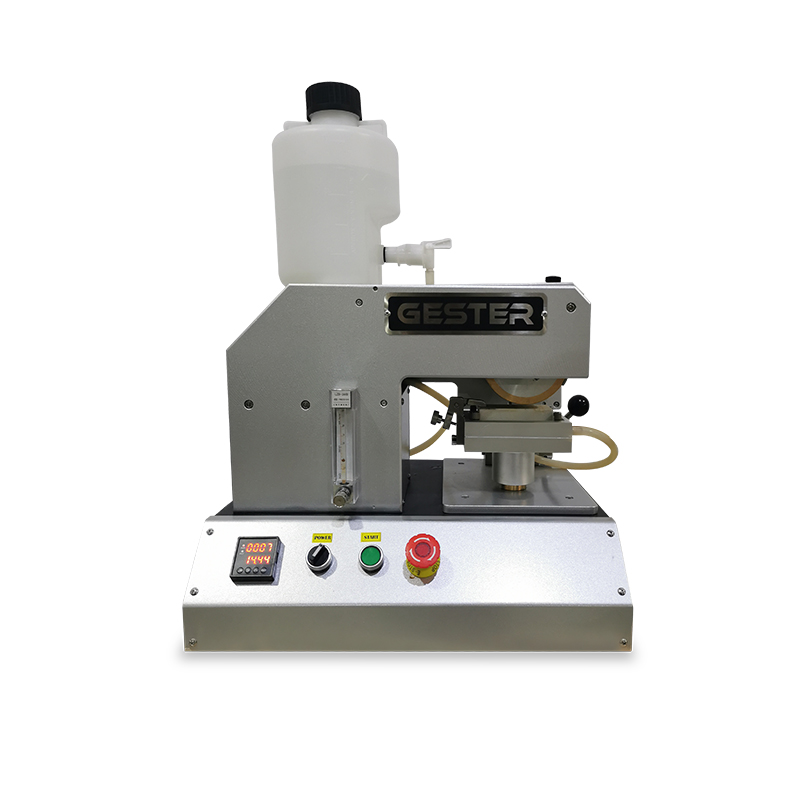

This tester is used to determine the water absorption and desorption of insole and insock for various shoes. The specimen, placed onto a wet base plate, is submitted to repeated flexing during under a given pressure (in the same manner as the insole of a shoe during working).
Key Specification
Model | GT-KC07A | GT-KC07B |
Brass Roller | Diameter (120 + 1) mm , Width(50 + 1) mm | |
Speed | 20 ± 1 cycles / min | |
Stroke | 50 ± 2 mm | 100 ± 2 mm |
Press Load | 80 ± 5N | |
Water Flow Rate | 7.5 ± 2.5 ml/min | |
Sample Size | 110±11 ×40±1mm | 100±1 ×40±1mm |
Timer | 0~999h59m59s | |
Power Supply | 1∮AC 220V 50/60HZ | |
Dimensions | 65 x 45 x 75 cm | |
Weight | 104kg | |
Standards | EN ISO 20344 section 7.2 GB/T20991 section 7.2 EN ISO20347 section 5.7.3 AS/NZS 2210.2 section 7.2 EN 12746 ISO 22649 SATRA TM220 BS3144 section 22 | ISO5404 |
Accessories
Optional Accessories | GT-KD20 Pneumatic sample cutting machine (Cutter: 110±11 x 40±1mm; 100±1 ×40±1mm) Electronic balance (200g / 0.001g) |
