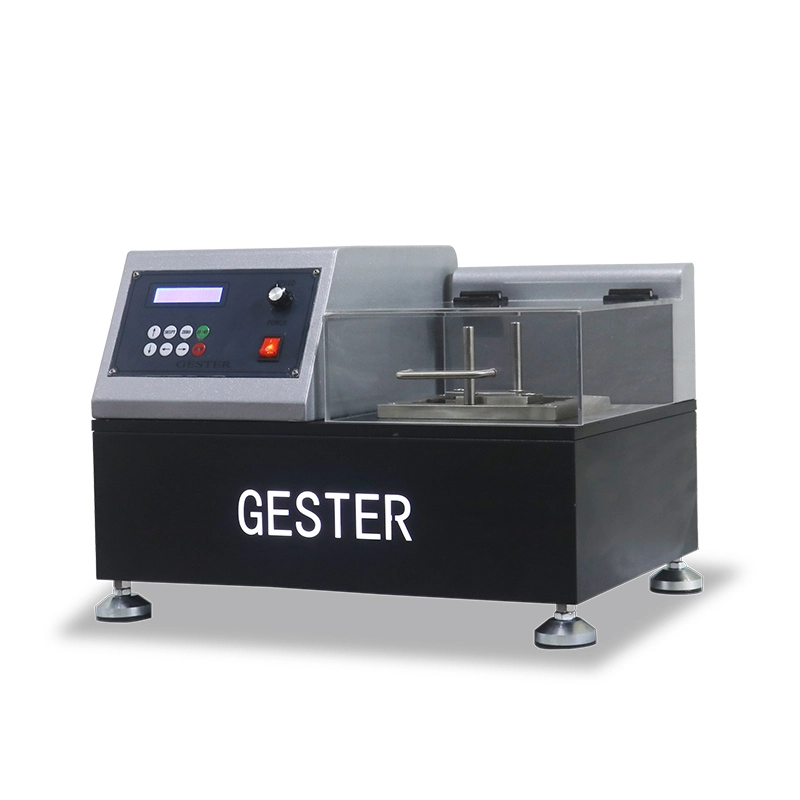

ISO5981 Flex Abrasion Tester GT-C23
Application
ISO 5981 Scott Type Flex Abrasion Tester is evaluated the resistance to combined shear flexing and rubbing of rubber- or plastics-coated fabrics.
The sample is subjected to Continuous bending. Then the bent portion will be subjected to a series of flexing and rubbing, and observe the wear pattern of sample visually.
There are 2 methods.
Pressure method(A) and without application of the pressure foot(B).
Pressure method(method A): Forced by application of a pressure foot. And the sample is damaged by the friction of the platen. Thus testing resistance to combined shear flexing and rubbing. It is for materials with sticky surfaces, light coatings such as polyurethanes on rough surfaces.
without application of the pressure foot(method B): Rubbing is caused by simple contact between the faces of the test pieces.Then evaluated the resistance to combined shear flexing and rubbing coated samples.
Product Parameters
Key Specification
Model | GT-C23 |
Distance between clamps | 12 mm ± 0.3 mm |
Amplitude of movement | 40 mm ± 1 mm |
Test Speed | 144～180 times/min(2.4～3.0Hz） |
Pressure foot | (100±1)×)10±0.2)mm |
Load applied through the foot | 5 ± 0.1 N, or 10 N ± 0.2 N by addition of a supplementary load |
Sample Size | (100±0.25)×(50±0.25)mm |
Power supply | AC 220V 50/60HZ |
Dimensions | 56cm×41cm×38cm (L x W x H) |
Weight | 40kg |
Standards | ISO 5981 |
