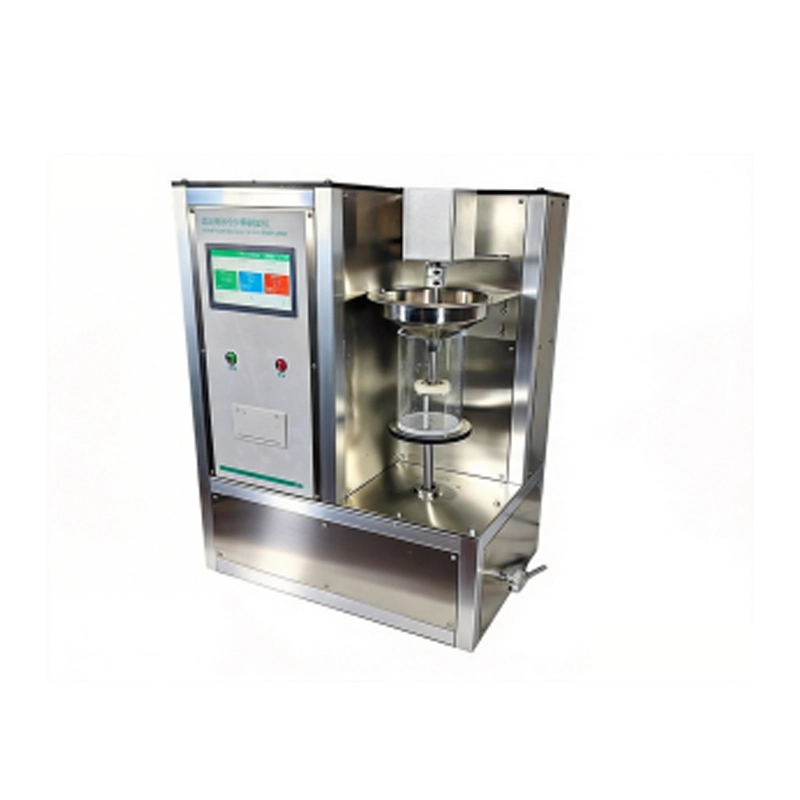

ISO 12625 Toilet Paper Water Disintegration Tester GT-CN22
Product Introduction
It is mainly used to measure the disintegration time of toilet paper in water.
Designed and manufactured strictly in accordance with ISO 12625-17:2021 international standards.This method specifies testing with a defined mass of toilet paper sample and requires that the water disintegration time be less than a specified standard value.
The product is extensively used in medical device manufacturing enterprises, local quality inspection systems, third-party testing institutions, colleges and universities, scientific research institutes, and other relevant units
ISO 12625-17 Standardized Test Principle
The GT-CN22 operates in strict accordance with the test method specified in ISO 12625-17:2021, delivering test data for toilet paper and tissue product water disintegration performance.
A piece of tissue paper or tissue product is placed in a beaker, and an impeller is used to stir it uniformly in water for 30 seconds, 2 minutes, and 10 minutes respectively. After stirring, the contents of the beaker are poured into a specified sieve. If there are residues remaining on the sieve after a certain period of rinsing, the residues are collected for gravimetric analysis to calculate the disintegration percentage after each stirring duration.
Product Specifications
| Model | GT-CN22 |
| Transparent container | inner diameter 98 mm, height 160 mm |
| Rotor Speed | 800 rpm ±10 rpm, adjustable |
| Stirrer | diameter 60±0.5 mm, height 17±0.5 mm, with 4 cross‑shaped ridges |
| Stirring time unit | seconds, meeting standard requirements of 30 s, 2 min, 10 min; adjustable |
| Dimensions | 400 mm (L) × 420 mm (D) × 660 mm (H) |
| Power supply | 220 VAC, 50 Hz |
| Weight | about 32 kg |
Advantages of Toilet Paper Water Disintegration Tester
Why Trust Our ISO 12625 Toilet Paper Water Disintegration Tester
Full Standard Compliance Guarantee: We guarantee that the GT-CN22 Water Disintegration Tester for Toilet Paper fully meets ISO 12625-17:2021 requirements, with pre-shipment calibration and a compliance certificate included with every order.
Factory-Direct Quality & Pricing: As a professional lab test equipment manufacturer, we offer factory-direct pricing with no middleman markup, and full control over every step of production.
Global Technical Support & After-Sales Service: We provide worldwide installation guidance, operator training, 24/7 technical support, and a comprehensive warranty for every instrument, ensuring your equipment runs smoothly for years.
