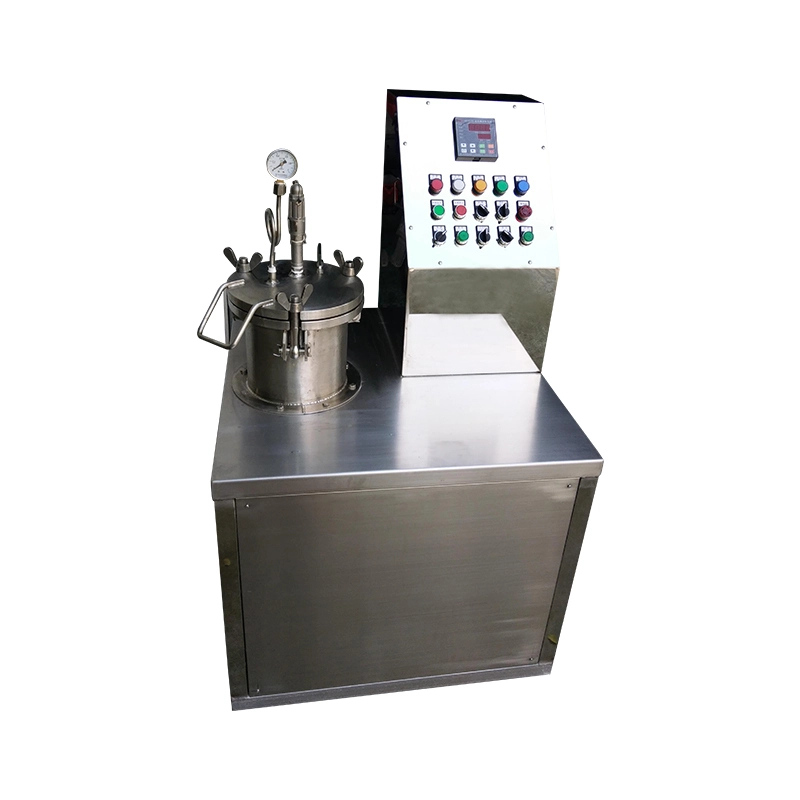

Textile Lab Bobbin Yarn Dyeing Machine GT-D40
Textile Lab Bobbin Yarn Dyeing Machine GT-D40
Application
This Textile Lab Bobbin Yarn Dyeing Machine GT-D40 is designed for teaching and laboratory purposes, used for processes such as pre-treatment, dyeing, bleaching, and other treatments of bobbin yarn.
Laboratory Yarn Bobbin Dyeing Machine Features
1. Dyeing cylinder material: SUS316 stainless steel.
2. High-temperature-resistant, corrosion-resistant, acid- and alkali-resistant sealing rings.
3. Programmable with storage for 10 processes; each process allows 10 adjustable steps, including customizable heating rates and holding times.
Textile Bobbin Yarn Dyeing Machine Key Specification
|
Model |
GT-D40 |
|
Working Position |
1 |
|
Cooling Method |
Water-cooled |
|
Heating Method |
Steam heating or electric heating |
|
Dye Tank Load |
5kg, 3kg, 2kg |
|
Dye Solution Circulation Mode |
Positive and negative circulation; Pneumatic reversing; |
|
Max. Working Temperature |
140℃ |
|
Max. Pressure |
0.45Mpa |
|
Heating Up Time |
20℃-130℃, About 35 minutes when the steam pressure is 0.6Mpa |
|
Cooling Time |
130℃-80℃, About 20 minutes when the cooling water pressure is 0.3Mpa |
|
Power Supply |
3 phase 380V 50Hz |
|
Dimensions |
800×800×1400mm |
Accessories
|
Standard accessories
|
1Set |
Control electric box |
|
1Set |
Pressure gauge and relief valve |
|
|
1Set |
Transmission frame and base |
|
|
1Set |
Pneumatic inlet valve and drainage valve |
