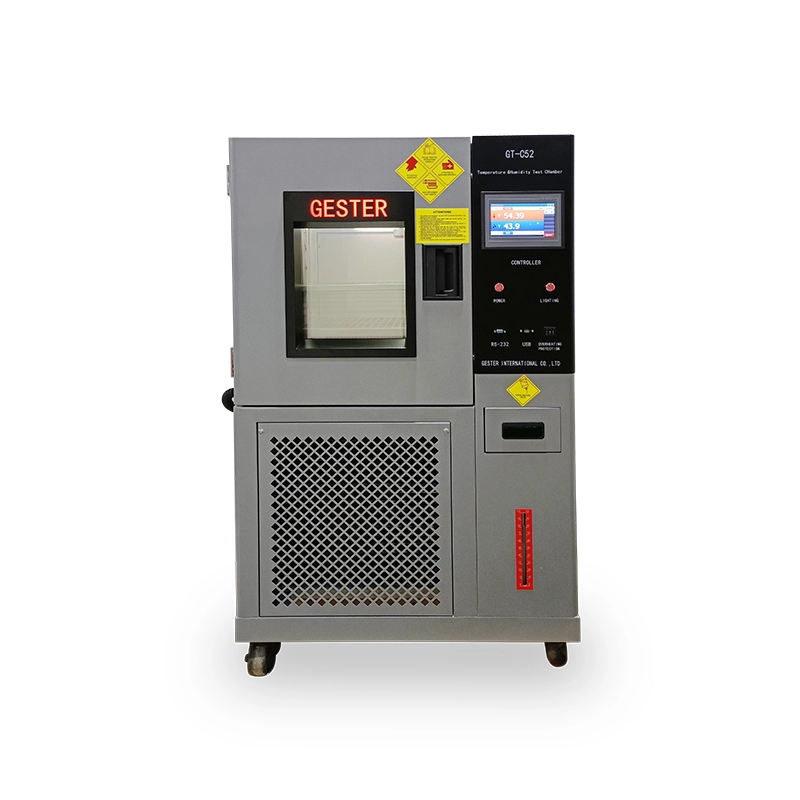

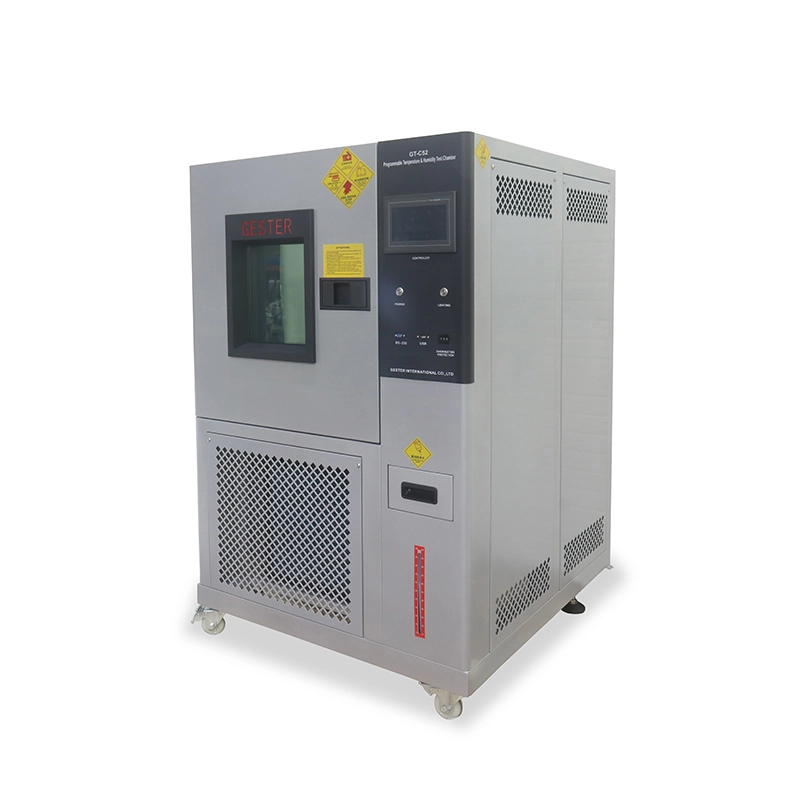

Programmable Temperature Humidity Chamber Environmental Chamber GT-C52
Application
Temperature And Humidity Test Chamber For conditioning of samples prior to testing. It also can be used for a variety of materials of high - low temperature alternating test. The test temperature, humidity and time can be programmed.
Feature
1. Touch screen, 680 temperature controller
2. Control mode: Touchpad
3. Display: LCD display, programmable.
4. System capacity:120 groups program X100 sections, required segmentation sections of each group can be arbitrarily divided and each program can freely link another.
5. Cycle setting: each operation procedure can carry out 9999 times or heaps of times cycle and repeated performance, and to the degree, divide further 5 segmentation sections to do part cycle of the extra.
Product Parameters
Key Specification
Temperature range (optional, can be custom-made) | -20~150℃, | -40~150℃, | -60~150℃ | ||

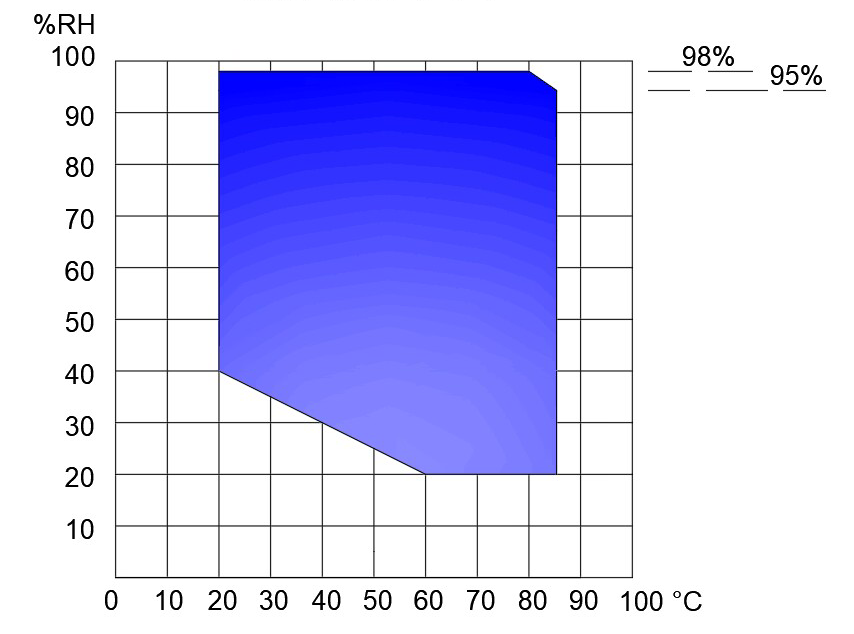

Humidity range | 20%~98%, can be set. | ||||
Rate of temperature increasing | Room temperature~150℃ | About 45 minutes(non-linear no-load, about 3.5℃/minute | |||
Room temperature~-20℃ | About 45 minutes(non-linear no-load, about 1.2℃/minute) | ||||
Machine precision | Control accuracy (test precision) | Temperature | +/-0.5℃ | ||
Humidity | +/-1%RH | ||||
Distribution accuracy (uniformity) | Temperature | +/-1.0℃ | |||
Humidity | +/-2%RH | ||||
Environment temperature | 5℃-28℃ | ||||
Environment relative humidity | ≤85%RH | ||||
Power voltage | 220V AC(+/-10%), protect ground wire, ground resistance≤4Ω. | ||||
Frequency | 50+/-0.5Hz | ||||
Power switch | Air-break switch(40A, knife switch or outlet is prohibited to use.) | ||||
Power | 4.5KW | ||||
Humidification water | Resistivity(≥500MΩ) | ||||
Requirement of ambient air quality | Do not contain high concentration dust and flammable gas, without strong electromagnetic radiation source nearby. | ||||
Power supply | AC1￠3W 380V 50/60HZ, voltage change allowed value: ±10% of fixed voltage. | ||||
Max loading capacity | 8KVA | ||||
Max operating current | 30A | ||||
Main Electrical Components Parts
Part Name | Brand | Country of Origin |
Controller | GESTER | China |
AC Contactor | Schneider | France |
Thermorelay | Schneider | France |
AC Relay | Schneider | France |
Sensor | Honeywell | USA |
Pressure controller | DANFOSS | Denmark |
Wind wheel | Cam York | Taiwan |
Compressor | EMBRCO/HITACHI | Slovakia/Japan |
Expansion | DANFOSS | Denmark |
Plate heat exchanger | GUONEW | China |
Expansion valve | GESTER | China |
Condenser | GESTER | China |
Oil separator | DANFOSS | Denmark |
Heater | TAIDE | Taiwan |
Refrigerant | Honeywell | USA |
Desiccator | DANFOSS | Denmark |
High-pressure cock | DANFOSS | Denmark |
Solenoid valve | SANHUA/HONGSHEN | China |
