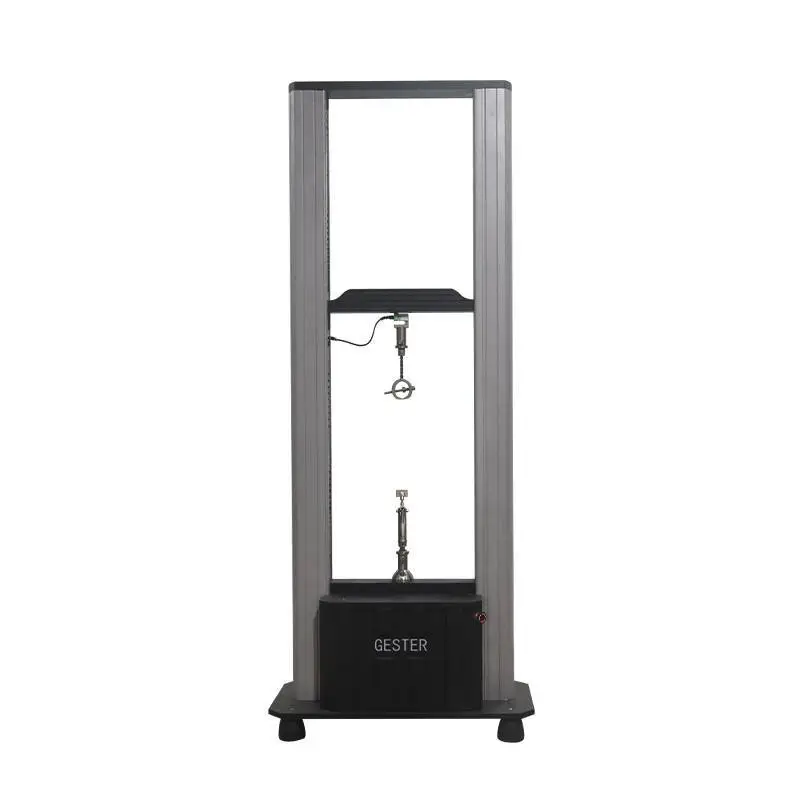

10KN Universal Tensile Testing Machine Dual Column GT-UA01

Application

Universal Testing Machine is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.

Universal Tensile Testing Machine Principle

The power system: servo motor and servo drivers and worm gear and rod reducer and ball screw.

Control system: adopting Pulse Command control method, it will be more accuracy and easy to control.

The speed control range: 0.001-1000 - mm/min.

The intermediate plate adjustment is both fast coarse and slow fine-tuning.

it will return to original site and save automatically testing.

Data transmission mode: RS232 transmission.

Display mode: computer screen display.

Universal Tensile Testing Machine can realize constant speed, positioning, constant power, constant stroke control mode and multi-level control mode which can meet the test requirements of the ordinary.

Testing space: test width is 400 mm (standard)

Al plate walking space: 1200 mm (excluding fixture, according to the customer requirements ).

The entire displacement: the encoder is 1800 P/R, it can improve 4 times accuracy

Using the LINE DRIVE encoder strong anti-interference ability displacement resolution 0.001 mm.

Safety device: overload emergency stop device, up and down stroke limit device, leakage automatic blackout system, automatic break point stop function.

Product Parameters

Product Details
