IULTCS Veslic Leather Abrasion Tester 1Position GT-KC01-1

Model:

GT-KC01-1

MOQ:

1 Piece

Place of Origin:

Quanzhou,China(Mainland)

Brand:

Gester

Inquiry

Write a Review

What is leather rubbing fastness tester?

Leather rubbing fastness tester is the testing machine which is accordance with the method for determining the color fastness to cycles of to-and-fro rubbing of the surface of leather. Iultcs rubbing fastness tester, designed to carry out a rub fastness test on the surface of leather to determine the amount of ‘marring’ of the leather surface or the finish and to assess the amount of color transfer from the sample to the rubbing pad under dry or wet conditions.This machine is suitable for all types of stain-resistant fur dry and wet rubbing fastness, and various types of fur products and fur leather goods and dual-use lint-free test.

Leather rubbing fastness tester,SATRA TM173 test apparatus,crockmeter for leather,ISO 11640 test device

Feature
Intelligent control system provides stable performance.
Different models of one or two testing positons can be chosen for various requirements.
Preset testing cycles with automatic stop make tests easier.

Application

IULTCS & Veslic Leather Abrasion Tester : used for color fastness testing of leather, plastic and textile. Under the specified pressure, let white wool felt to do reciprocating abrasion to the surface of dye sample. After a specified count, to assess the color fastness of sample by checking the color change and fading of sample and the discoloration of white wool felt. It can be used for dry abrasion testing and wet abrasion test.

IULTCS Rubbing Color Fastness Tester, designed to carry out a rub fastness test on the surface of leather to determine the amount of ‘marring’ of the leather surface or the finish and to assess the amount of colour transferring from the sample to the rubbing pad under dry or wet conditions.
The unique design of IULTCS Rubbing Fastness Tester allows reliable and stable test result.
Impact appearance and construction design offers a good shape and convenient operation, also allows a long life time without repairing.
Equipped with an extension device so samples can be extended at a required rate.Two models of single and double test position are offered.
Available with a piece of 500g loading weight, thus allows a test with 500g or 1000g loading.

IULTCS Veslic Leather Abrasion Tester 1Position GT-KC01-1 6

Product Parameters

Key Specification
Model	GT-KC01-1
Position	1
Area of testing head	15mm x 15mm
Movement speed	40 ± 2 times / min.
Rubbing stroke	35~40 m
Rubbing finger mass	500g
Additional weight mass	500g
Fixtures distance	80mm
Sample size	120x20mm
Tension extension range of sample	0 ~ 20%
Power supply	1∮AC 220V 50/60HZ
Dimensions (L x W x H)	490x340x550mm
Weight	33kg
Standards	DIN 4843, ISO 11640, SATRA PM 173, AS/NZS 2210.2 section7.3 QB/T 2537, GB/T 20991 section 7.3, ISO 20868, GB/T 40920 EN ISO20344 section 7.3, ISO 17700 Method A, GE-29
Accessories
Standards accessories	1pc	500g Weights
	1pc	Power line
Optional accessories	Optional	Standard wool pads
	Optional	GT-KD20 Hydraulic Rocker Pressure Tester (Cutter: 120x20mm)
	Optional	Gray Scale for color change
	Optional	Gray Scale for staining

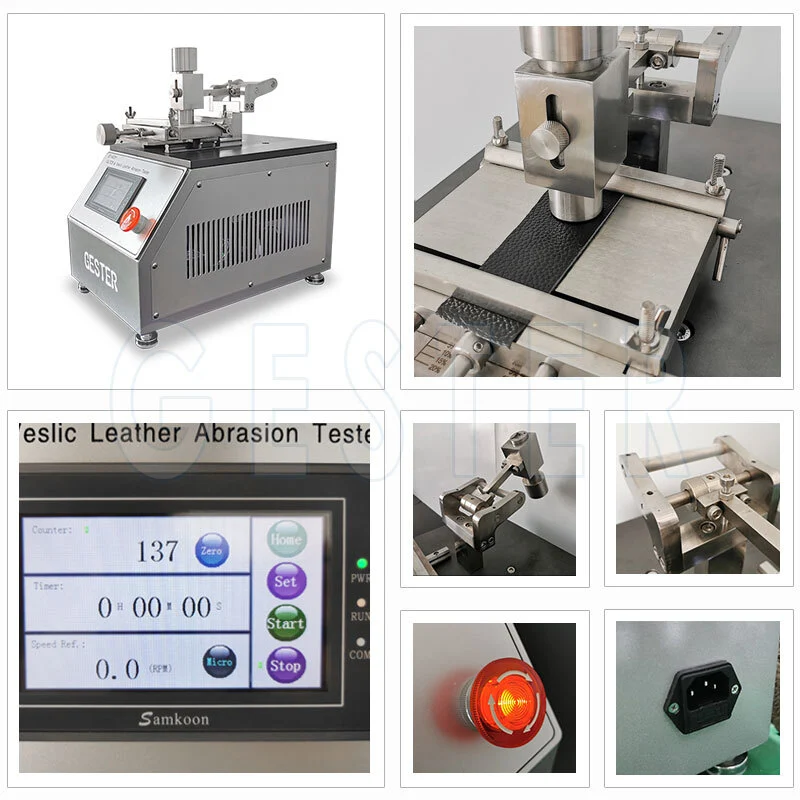

Product Details

IULTCS Veslic Leather Abrasion Tester 1Position GT-KC01-1 7

Abrasion Head with Wool Felt

This tester put the dry and wet felted wool on the friction mallet surface, rub the specimen move back and forth in a certain process and speed on the friction table for a certain times, and then evaluate its damage and decoloring degree.
