AATCC 42 Water Impact Penetration Tester GT-C33

这里可以自定义设置

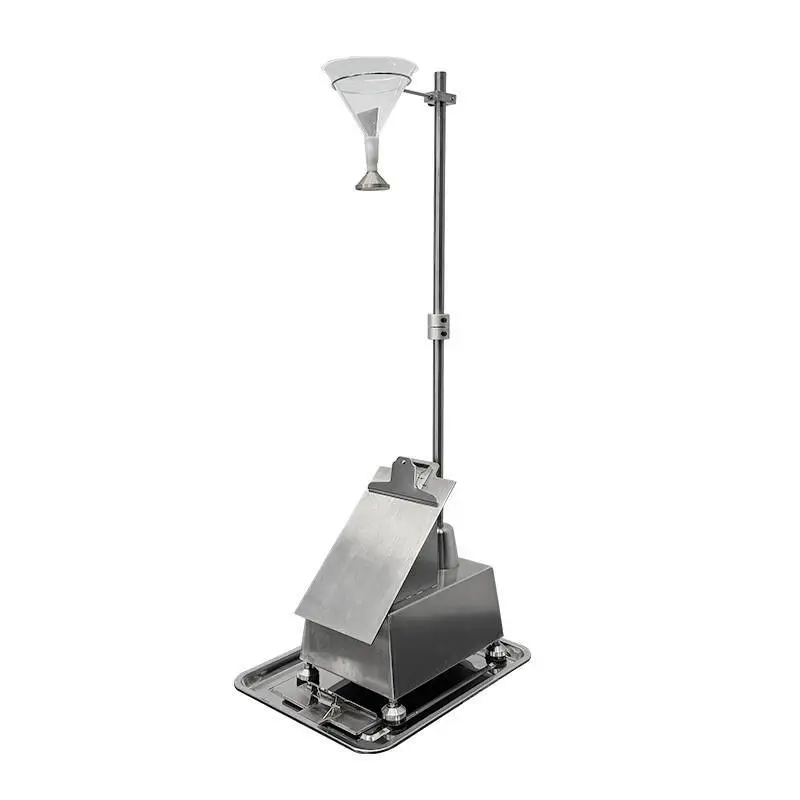

AATCC 42 Water Impact Penetration Tester GT-C33
B站不支持收货地址
B站不支持库存规格
Model:
GT-C33
MOQ:
1 Piece
Place of Origin:
Quanzhou,China(Mainland)
Brand
GESTER
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

Application


This Impact Penetration Tester is applicable to any textile fabric, which may or may not have been given a water resistant or water-repellent finish.It measures the resistance of fabrics to the penetration of water by impact, and thus can be used to predict the probable resistance of fabrics to rain penetration.  Water Impact Penetration Tester is especially suitable for measuring the penetration resistance of garment fabrics.





Working Principle

  1. Water Impact Penetration Tester: A volume of water is allowed to spray against a taut surface of a test specimen backed by a weighed blotter. The blotter is then reweighed to determine water penetration and the specimen is classified accordingly.



Product Parameters

Key Specification

Model

GT-C33

Test water quantity

500ml

Distance between nozzle and center of specimen

600mm

The width of clamp

152mm

Specimen gradient

45°

Tensioning Clamp

453.6g(1Lb)

Nozzle

Diameter: 56mm,

Blowhole Diameter: 1mm, 25 blowholes

Size of Specimen

178×330mm

Dimensions(L×W×H)

34×54×2700px

Weight

18kg

Standards

 AATCC 42, ISO 18695


Accessories

Standards accessories

1pc

Measuring glass

1pc

Nozzle

1pc

Specimen clamp

Option Accessories

Optional

Bibulous paper

Optional

Balance: 200g  0.1g
