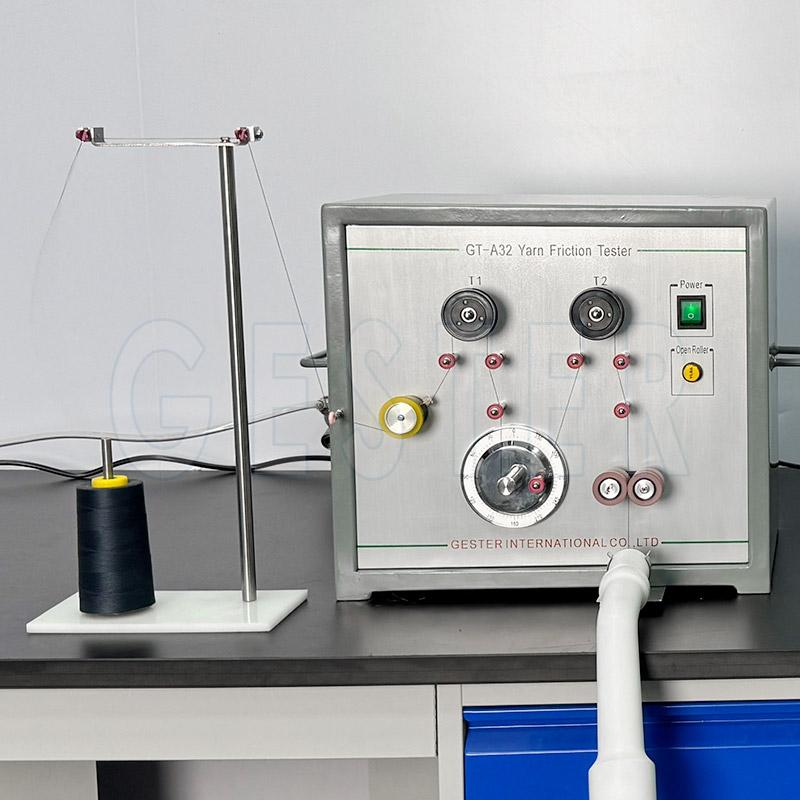

ASTM D 3108 Yarn Friction Tester GT-A32

这里可以自定义设置

B站不支持收货地址

B站不支持库存规格

Model:: GT-A32

MOQ:: 1 Piece

Place of Origin:: Quanzhou,China(Mainland)

Brand: GESTER

B站不支持优惠卷

Inquire Online
Download

Cancel

B站不支持产品保障

该产品后台详情无内容

这里可以自定义设置

Application

It is suitable for measuring the static friction coefficient and kinetic friction coefficient of filament yarn with different solid materials. Computer automatically calculate the friction coefficient with input tension and output tension value by using formula.

Feature

1. Computer control and automatic data processing.
2. Test the tension with high precision.

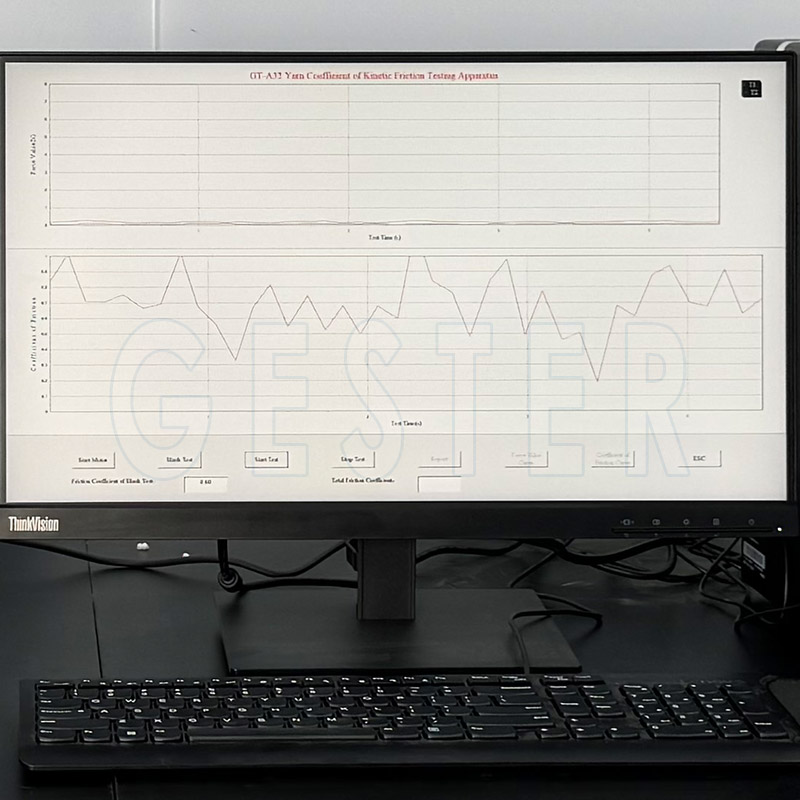

3. Display input tension, output tension and friction coefficient on computer.
4. Possible to determine different kinds of filament yarn.
5. Adjustable winding angle.

Product Parameters

Key Specification

Test tension	0~500cN
Tension accuracy	±1%
Friction coefficient	0<µ<1
Friction angle	0~360°
Pretension	0~24cN
Yarn test speed	100m/min
Power	300W
Power supply	220V 50Hz
Dimensions	600x350x450mm (L x W x H)
Weight	35kg
Standards	ASTM D 3108-2013, T/CNTAC 4-2017
