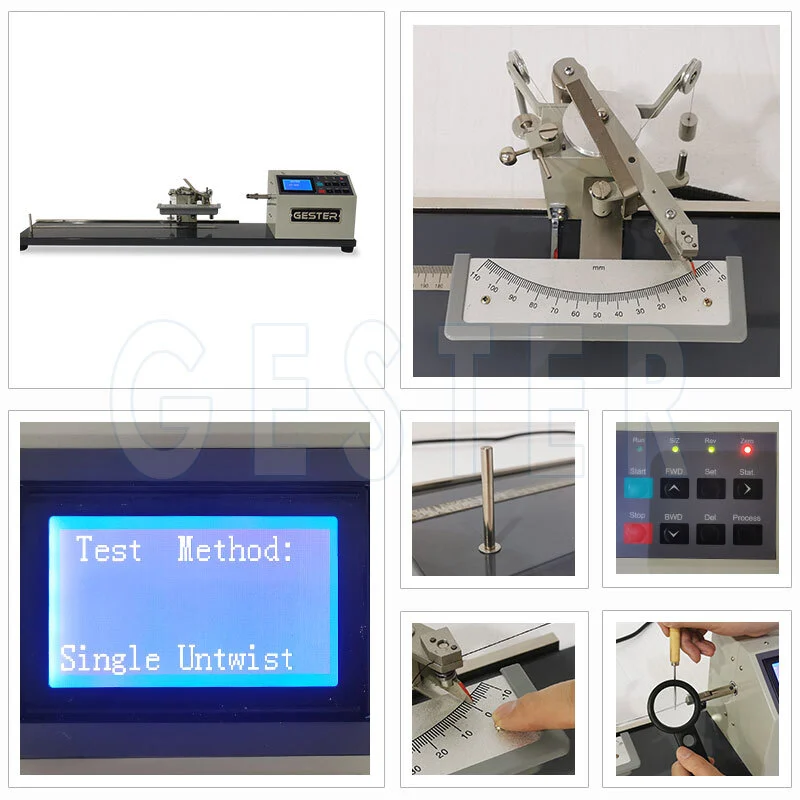

Electronic Single Yarn Twist Tester Machine GT-A08
Introduction of yarn twist tester:
Yarn Twist Tester, to determine yarn twist in single or plied yarns, quadrant type with auto stop & reverse for conventional or untwist/re-twist methods. Twist tester is very important in textile testing. Our Yarn Twisting Machine price is also competitive.
Test standard
Twist Tester Machine complies with ISO 2061, ASTM D1422/1423, BS 2085,etc.
300N 1000mm/min Yarn Twist Test Machine For Textile Breaking Strength
GB/T 14344,ISO 2062,GB/T 3916,ASTM D2256,DIN,BS.
Application
Twist Tester, is used to get the coefficient of twist, which is a measurement of the level of twist of the yarn, suitable for testing single or plied yarns, equipped with auto stop & reverse for conventional or untwist/re-twist methods, makes yarn twist testing an easy task for textile testing labs or factories.
Twist tester to determine yarn twist in single or plyed yarns, quadrant type with auto stop & reverse for conventional or untwist/re-twist methods. Test length adjustable up to 50cm/20 inches for S & Z twist yarns.
Product Parameters
Key Specifications
Model | GT-A08 |
Length of sample | 0-500mm(adjustable) |
Range of twist testing | 1-9999.9twist/250px , 1-9999.9twist/m |
Max length of untwisting | 110mm (Showed by indicator) |
Max contracting of twisting | 10mm |
Grip speed | 800r/min and 1500r/min |
Presetting tension | 0.5-160.5cN |
Dimensions | 900 x 250 x 300mm ( L x W x H ) |
Weight | 20kg |
Standards | GB/T2543.1.2, 14345, ISO2061, BS2085, ASTM D1422,1423, JISL1095 |
Optional Accessories | Wire printer |
What’s the Yarn Twist Testing Machine used for?
Twist Tester, to determine yarn twist in single or plied yarns, quadrant type with auto stop & reverse for conventional or untwist/re-twist methods.
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
In the production of yarn, always to increase its strength by plied twist to increase its tensile strength, so we need twist tester.
Yarn Twist Tester is to count out the number of twist by un-twisting the yarn and then division by length of specimen to obtain the number of plied twist per inch.
During the process of testing twist tester machine, also obtain the percentage of twist shortening.
