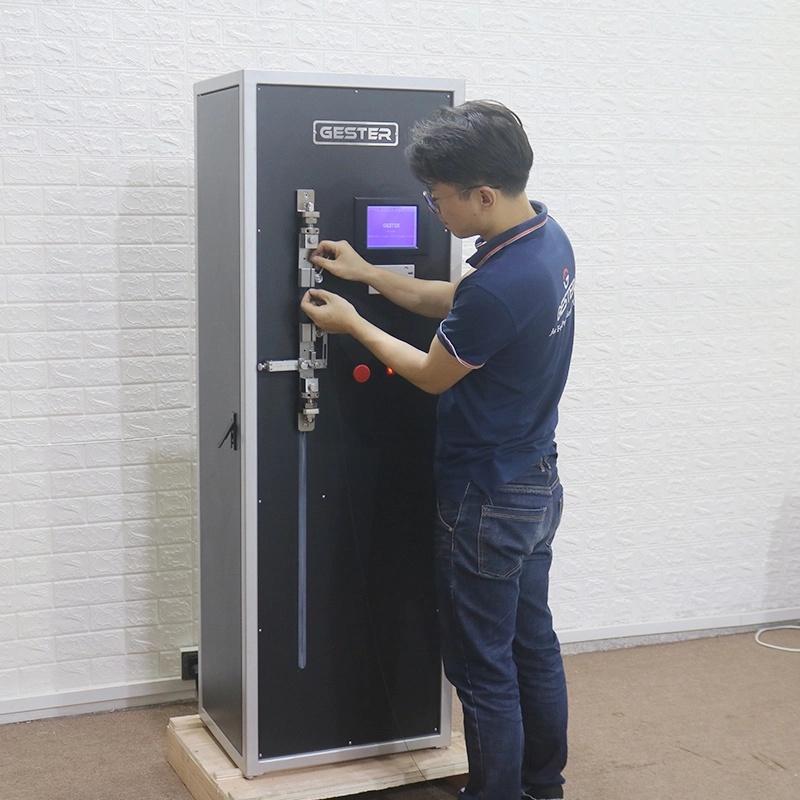

ASTM D2256 Single Yarn Strength Tester GT-A02A
Brief introduction of the Single Yarn Strength Tester GT-A02A
Application
ASTM D2256 Single Yarn Strength Tester GT-A02A to test the breaking strength and elongation percentage of various cotton, wool, linen, silk, chemical fiber, core-spun single yarn, pure or blending natural or chemical fiber yarns.
Feature
1. Dynamic Data Sampling Frequency is More than 800HZ, ease to catch peak value, most precisely indicate property of textile material.
2. Clamp distance can be set freely, and positioned automatically according to the setting system.
3. Support online operation and with specialist software analysis system for data analysis and backup.
4. Domestic first creation sample test and data-processing software with multithreading.
5. Software can online analyze data and show the statistic value of breaking strength, elongation rate, yield strength, initial modulus, and plastic deformation.
Standards
GB/T14344, GB/T3916, ISO2062, ASTM D2256
Model | GT-A02A-1 | GT-A02A-2 | GT-A02A-3 | GT-A02A-4 |
Load range | 0-3000cN | 0-5000cN | 0-100N | 0-300N |
Working pattern | Constant rate of extension (CRE principle), computer control, English LCD display, report printing. | |||
Testing range | 1%-100% of the full range | |||
Testing accuracy | ≤0.2%F·S | |||
Test speed | 50～1000mm/min | |||
Stroke space | 800mm | |||
Clamp distance | 50～500mm，digital setting | |||
Pr-tension | 0-150cN tension steelyard | |||
Power supply | Ac220V±10% 50Hz 0.25Kw | |||
Dimensions | 520×400×1600mm | |||
Weight | 60kg | |||
Standards | GB/T14344, GB/T3916, ISO2062, ASTM D2256 | |||
Standard accessories | 1PC Power line | |||
