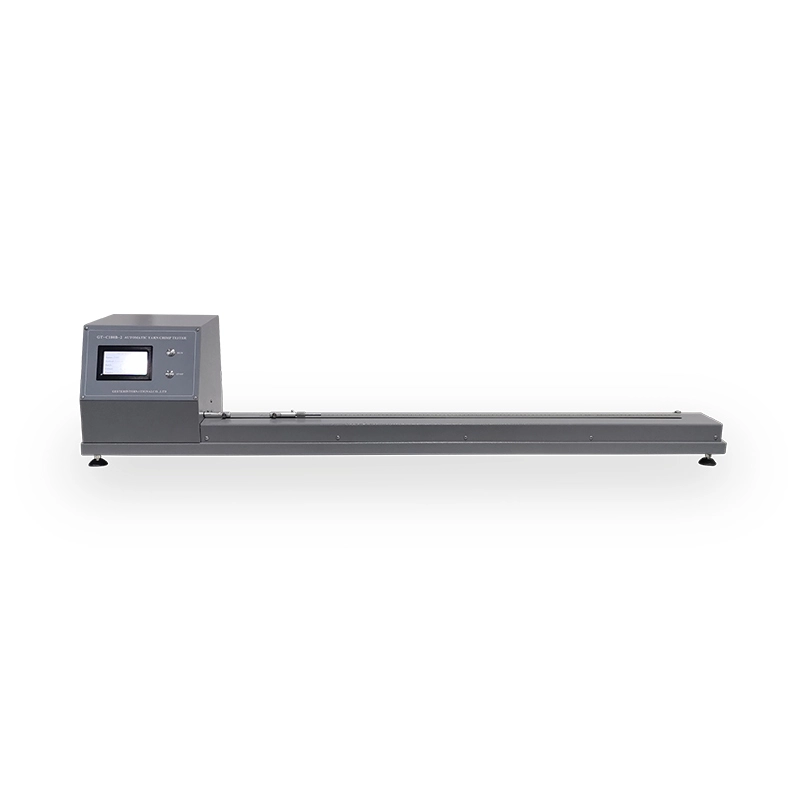

Automatic Crimp Tester for Yarn GT-C180B
Product Description
Application
Automatic Yarn Crimp Tester, to calculate the crimp in yarn affected by knitting or weaving by taking apart the yarn from a piece of given-length fabric, unbending it under given force and measuring its length, to determine actual yarn usage.
Features
1. Touch panel display and control
2. The right fixture can extend automatically with adjustable tensile speed.
3. Real time displays the value of force and elongation, testing curve can be shown as well.
4. Equip with a high precision load cell.
Standards
EN14970, ASTM D 3883, ISO7211-3, ISO 7211-5, AFNOR G 07-104, AFNOR G 07-101, NF G07-104,
GB/T 29256.3-2012, GB/T 29256.5-2012, FZ/T01091, FZ/T01093, BS 5441, DIN 53830 Part 3, clause 8.1.2
Key Specification
Model | GT-C180B-1 | GT-C180B-2 |
Control mode | Touch screen controlling | |
Load range | 200CN | 1000CN |
Stroke | 10-1000mm | |
Stroke Resolution | 0.01mm | |
Dimensions | 1400 x 200 x 200 mm | |
Power Supply | AC 220V 50/60HZ | |
Weight | 50kg | |
