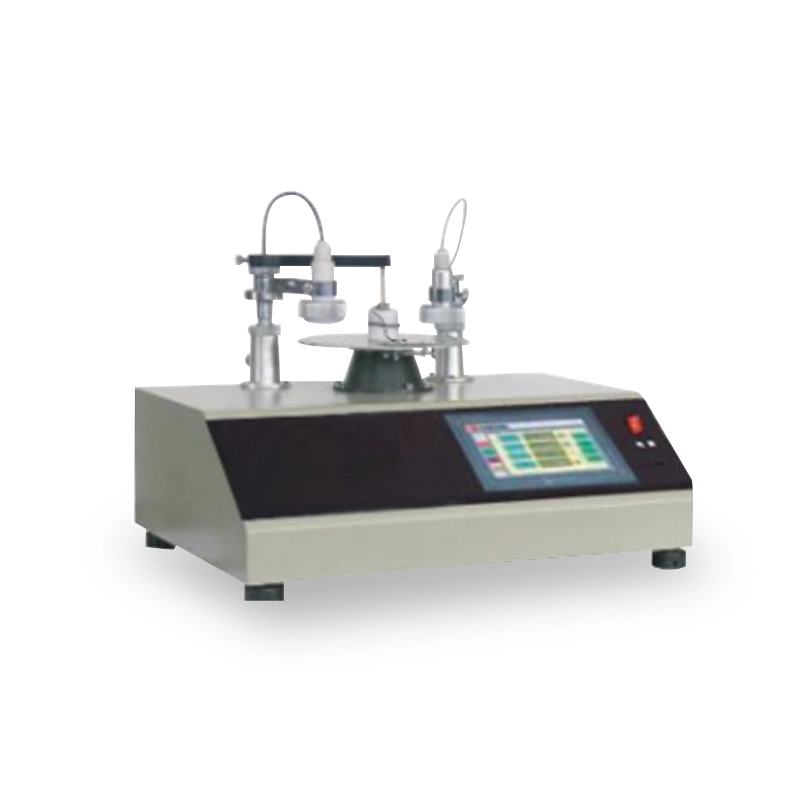

Fabric Induction Electrostatic Tester GT-C199
Application
This Fabric Induction Electrostatic Tester is suitable for the determination of the electrostatic properties of fibers, yarns, fabrics, carpets, upholstery fabrics and other fabrics or various plate-shaped finished product under laboratory conditions.
The Fabrics Induction Type Electrostatic Tester host consists of a corona discharge device and a probe detector.Using a given high-voltage electric field, the fabric is discharged for a certain time, causing the fabric to induce static electricity, thereby performing electrostatic energy measurement, half-life of static voltage decay, and electrostatic residual amount to detect the electrostatic charging property of the fabric to be tested.
The seriousness of the charging of the fabric depends on the level of the static voltage after high-voltage discharge and on the other hand. The rate of static escaping on the fabric is expressed by the electrostatic half-life, which is an important indicator for testing the electrostatic properties of the fabric.
Standards
FZ/T01042 , GB/T 12703.1 , GB/T 33730, ISO18080-1
Product Parameters
Fabric Induction Electrostatic Tester Key Specifications
Model | GT-C199 |
Control Mode | 7 inch Color Touch Screen |
Turntable Rotation Speed | 1500RPM |
Sample Window Size | 32.5×32.5mm（L×W） |
Specimen Size | 45×45mm（L×W） |
DC High Voltage | 0～10KV Continuously adjustable; Deviation:≤1％ |
Measuring Range of Electrostatic Voltage Value | 0～5000V;Deviation:≤2％ |
Timing Range of Electrostatic Voltage Decay | 0～180s; Deviation:≤0.1s |
Timing Range of High Vlotage Discharge | 1～99s |
Synchronous Motor Pre-rotation Time | 1～99s Can be set |
Discharge Distance Between the Needle Electrode and Sample | 20mm Adjustable |
The Measurement Distance Between the Probe and Sample | 15mm Adjustable |
Laboratories Environment | Temperature: 20℃±2℃, Humidity: 35%±10%RH |
Power Supply | 1∮ AC 220V 50/60Hz |
Weight | 50kg |
Dimensions | 680x460x500mm |
