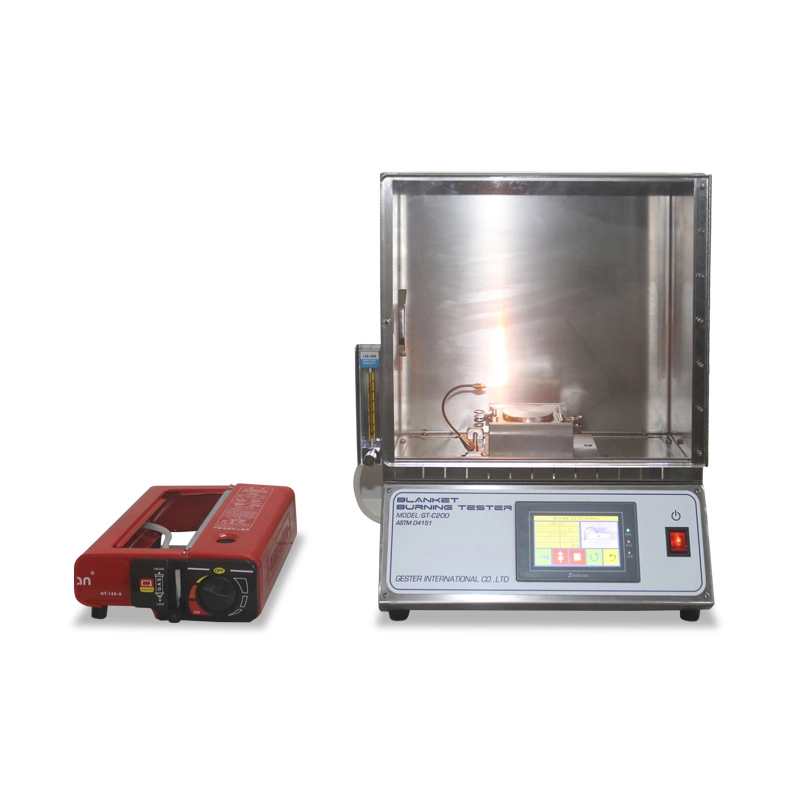

ASTM D4151 Blanket Burning Tester GT-C200
Application:
This Burning Tester suitable for Flame retardancy of bed linings including bed sheets,blankets, mats on mattresses, pillows, duvets and similar products used to cover the bed. The test method is within the specified time,Burn the sample surface with a standardized flame, observe the burning, damage or discoloration of the standard test strip,then grade the test fabric.
Principle
- In the specified device. Place the processed sample horizontally. Put a piece of paper with a central hole in the surface.Use prescribed methane ignition source ignition and burning on the surface of the blanket on a piece of paper.
Standards:
ASTM D4151-18
Product Parameters
Key Specification
Model | GT-C200 |
Control method | Touch screen control |
Test chamber | 37cmX22cmX35cm,12 vent hole which diameter is 12.7mm |
Ignition time | 1S |
Sample holder | Inner hole 2.5’(63.5mm) |
Position of ignition | Inner hole of sample holder |
Test paper | 75mmx90mm,inner 50mm round hole |
Length of flame | 16mm |
Distance between nozzle & specimen | 8mm |
Fire mouth end off center | 3.2mm |
Brush load | 75±10gf |
Size of specimen | 70mmx70mm |
Power supply | 1∮ AC 220V 50Hz 3A |
Dimensions | 42x26x1300px (L x W x H) |
Weight | 20kg |
Accessories
Standard Accessories | 5pcs | Sample holder |
1pc | Brushing device | |
1pc | Power line |
