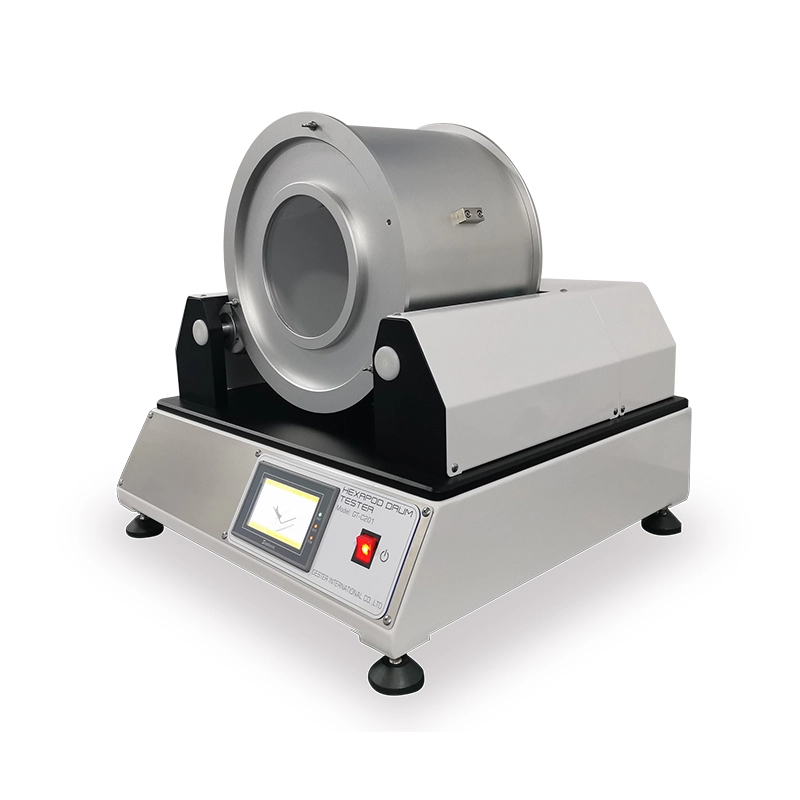

ASTM D5252 Hexapod Tumble Drum Tester GT-C201
ASTM D5252 Hexapod Tumble Drum Tester GT-C201
Application
The Hexapod Tumble Drum Tester is designed to assess the effects of hexapod mechanical action on floor coverings, specifically evaluating changes in surface structure and color.
Principle
A carpet sample is affixed to the inner wall of the drum, and a hexapod test block is placed inside. As the drum rotates, the hexapod test block tumbles across the sample's surface. After a specified number of rotations, the surface structure and color changes of the floor coverings are evaluated.
Key Specification
Model | GT-C201 | |
Control | Touching Screen Control
| |
Rotate speed | 35±2 r/min | |
Drum specifications | Inner Diameter: 305mm±1mm, | |
Reversal time | 15min | |
Hexapod
| Standard accessory | Weight: 3.8kg ±0.1kg (GB/T 26844, ISO 10361) |
Optional accessory | Weight: 1.27±0.06kg (ASTM D5252) | |
Specimen’s backing sheet | Polyethylene, size: 950mmx215mmx2mm | |
Specimen’s Size | 940mmx200mm | |
Power supply | 1∮ AC 220V 50Hz 3A | |
Dimensions | 68x39x45cm (L x W x H) | |
Weight | ≈65Kg | |
