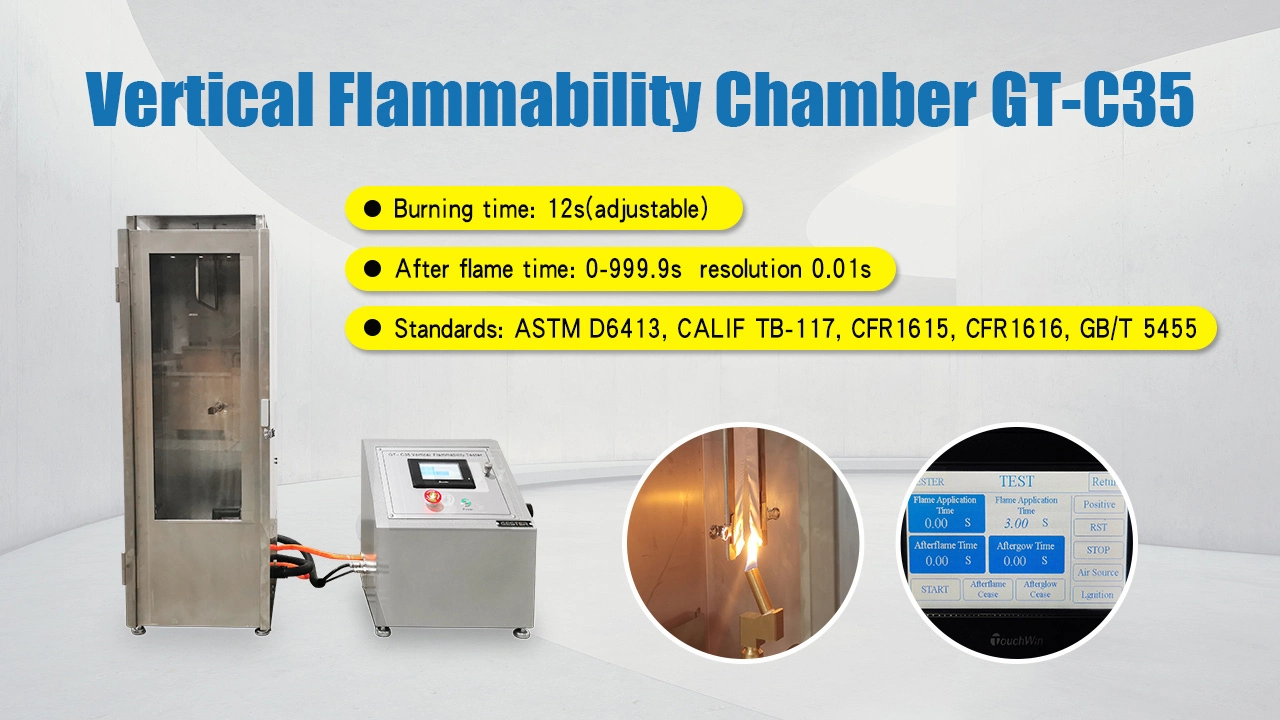

ASTM D6413 Vertical Flammability Test Chamber GT-C35A
Application
To measuring the vertical flame spread for children’s sleepwear, fabrics, other textile materials or resilient filling materials used in upholstered furniture of textiles.
Different accessories,burners and configurations are required for different standards. Please specify standards(s) required.
Feature
- Stainless steel test cabinet with glass observation panel , durable and easy maintenance.
- 3 time recorders, one record firing time, one record after flame time and the other one record afterglow time(accuracy 0.01s).
- Control cabinet and burning box separate design which is safe and reliable.
Product Parameters
Key Specification
Model | GT-C35A-1 | GT-C35A-2 | |||
After flame time | 0-999.9s resolution 0.01s | ||||
After glow time | 0-999.9s resolution 0.01s | ||||
Burning time | 12s(adjustable) | ||||
Nozzle | Inner diameter | 11mm | 10 -0.5 mm | ||
Angle | 65 degree | 90 degree | |||
Dimension of specimen holder | Out frame | 422*89 *2mm | 442*76*12.5 mm | ||
Inner frame | 356 × 51 mm | ||||
Testing flame height | 40±2mm | 38mm | |||
Distance between nozzle top and specimen | 17mm | 19mm | |||
Tearing weights | 54.4g, 113.4g, 226.8g, 340.2g, 453.6g | 100g, 200g, 300g, 475g | |||
Power supply | AC 220V 50/60HZ | ||||
Dimensions | 600 x 450 x 885mm (L x W x H) | ||||
Weight | 44 kg | ||||
Standards | CFR1615 CFR1616 GB/T 5455 | ASTM D6413 | |||
Accessories
Standard accessories | 1 set | Tearing weights |
1pc | Sample holder | |
1pc | Flame measuring scale | |
1pc | Power line | |
Optional accessories | Optional | Φ 11mm Nozzle |
Optional | Φ10mm Nozzle | |
Optional | CFR1615,1616 holder and tear weights | |
Optional | ASTM D6413 holder and tearing weights | |
Optional | CALIF TB-117 holder |
Product Details
