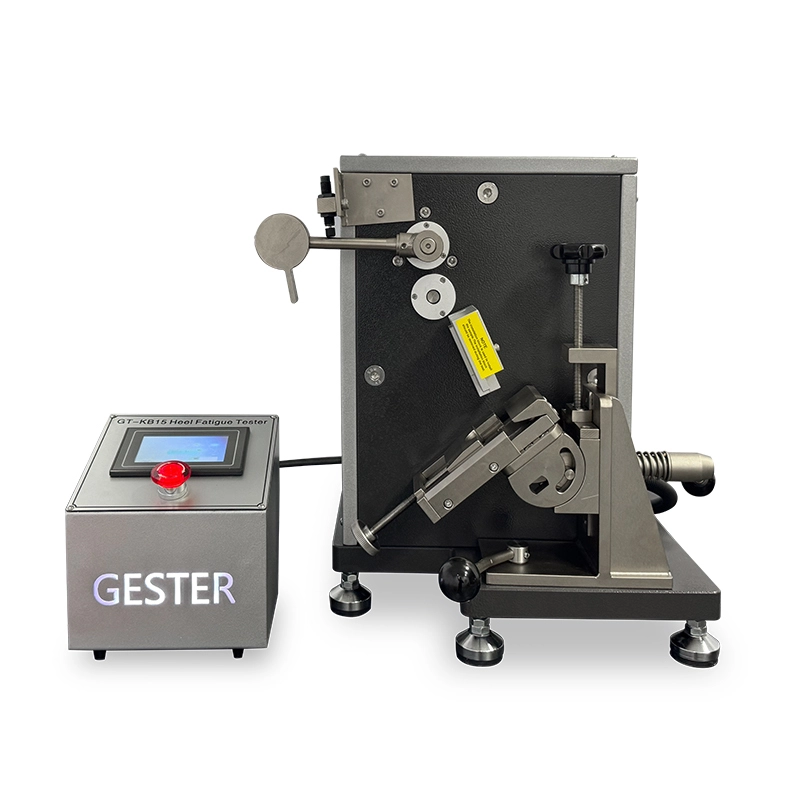

BS 5131Shoe Heel Impact Fatigue Testing Machine GT-KB15
Shoe Heel Impact Fatigue Testing Machine
Application
The Shoe Heel Impact Fatigue Testing Machine is used to determine the resistance of medium and high heels of ladies’ shoes under repeated small impacts to the heel tip . A heel is subjected to blows, each of specified energy, delivered by a pendulum once a second. Testing continues until failure of the heel takes place or until satisfactory fatigue resistance is obvious.
Standard
BS-5131 4.9
ISO 19956
QB/T2864
SATRA TM21
Key Specification
|
Model |
GT-KB15 |
|
Impact energy |
0.68J ± 0.02J |
|
Impact frequency |
60blows/min |
|
Impact angle |
90degree |
|
Pendulum |
f 57 ± 1 mm, Thickness 20 ± 1 mm |
|
Pendulum shaft |
f 12.5± 1 mm |
|
Striker head ( L×W×T) |
35 ×20×6mm |
|
Striker head corner radius |
R3mm |
|
Pendulum Moment @ Horizontally |
0.68N.m |
|
Counter |
LCD digital display 0 - 999999 ( adjustable) |
|
Power supply |
1∮AC 220V 50/60HZ 3A |
|
Dimensions |
60 x 40 x 65cm |
|
Weight |
80kg |
