BS 953 Safety Footwear Impact Tester GT-KB17
5.0
Model:
GT-KB17
MOQ:
1 Piece
Place of Origin:
Quanzhou,China(Mainland)
Brand:
Gester
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Application
Safety Footwear Impact Tester is used for impact resistance of safety shoes. Impact steel head of safety shoes by 100J or 200J kinetic energy, and inspect it subsidence to check it quality.
Feature
1.Safety Shoes Impact Tester equip with protection fence, to avoid hazardous objects splash.
2.Control box separate with impactor, to protect personnel security.
3.Safety Footwear Impact Tester equip with electromagnet absorption device and automatically grab impact head to set height.
4.Safety Footwear Impact Resistance Test Equipment with two buffer cylinder, to avoid second impact.
Product Parameters
| Safety Shoes Impact Tester Key Specification | ||||
| Model | GT-KB17A | GT-KB17B | GT-KB17C | |
| Drop height range | 0- 1200mm | |||
| Impact energy | 200±2 J or 100±2 J | 100±2 J | 101.7±2 J | |
| Impact hammer | Wedge, Length 75mm, Angle 90° | Cylinder, Diameter 25.4mm | ||
| Impact surface | Corner radius R3 mm | Spherical radius R25.4mm | Length 152.4±3.2 mm | |
| Impact hammer mass | 20±0.2 kg | 22.7±0.23kg | ||
| Power supply | 1±AC220V 50HZ 5A | |||
| Dimensions(L x W x H) | 100 x 70 x 200cm | |||
| Weight | About 280kg | |||
| Standards | EN ISO 20344-2021 Section 5.4 and 5.20, AS/NZS 2210.2 Section5.4 and 5.16 GB/T 20991 Section 5.4 and 5.16, BS EN-344-1 Section 5.3 BS-953 Section 5, ISO 20345 ISO 22568-1-2019, 5.3.1.1 | CSA-Z195-14 Section 6.2, ANSI-Z41 Section 1.4.5 , ASTM F2412 Section 5, ASTM F2413 Section 5.1, NOM-113-STPS-2009 Section 8.3 | CSA-Z195-14 Section 6.4, ASTM F2412 Section 7, ASTM F2413 Section 5.3, NOM-113-STPS-2009 Section 8.6 | |
| Accessories | ||||
| Standard accessories | 1set | Toecap clamp device | ||
| 1pc | Power line | |||
| Option accessories | Air compressor | |||
| Metatarsal protective test clamp device for EN ISO 20344 Section 5.16 | ||||

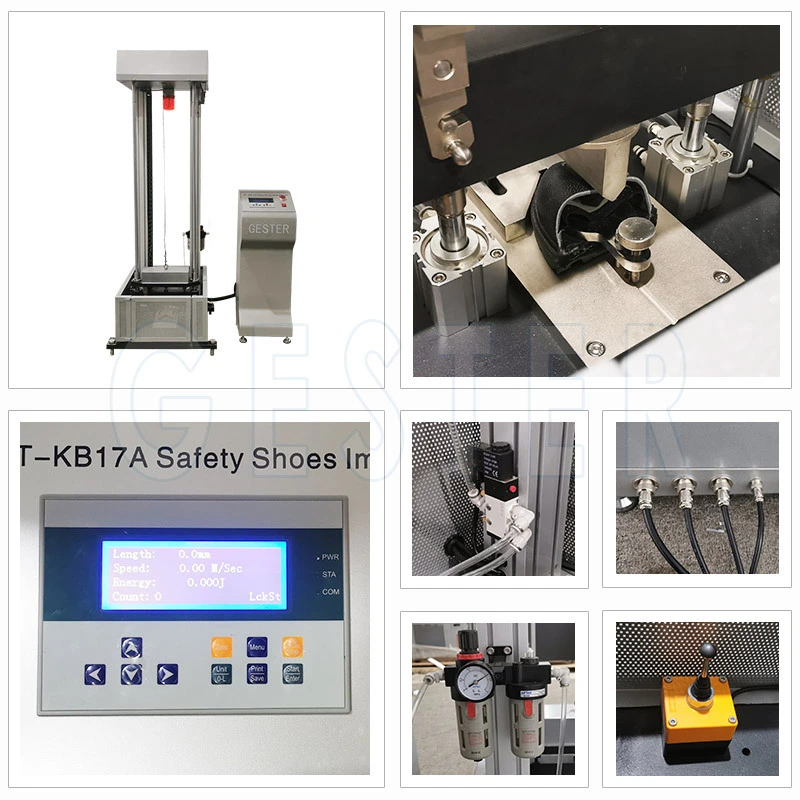

Product Details
Sample Fixture
It is to fix the sample
Alarm Indicator
When test starts, alarm lights up and whistles 3s, the laboratory personnel 1 meter away from test device.
Control Panel
To set test parameter
Sample Fix Device
To fix sample location
Balancing weight
Loading weight can be attached as per standard requirement.
Air Source Regulating Valve
To filter air source and adjust air source pressure
