Circular Rub Fastness Tester GT-KC52

这里可以自定义设置

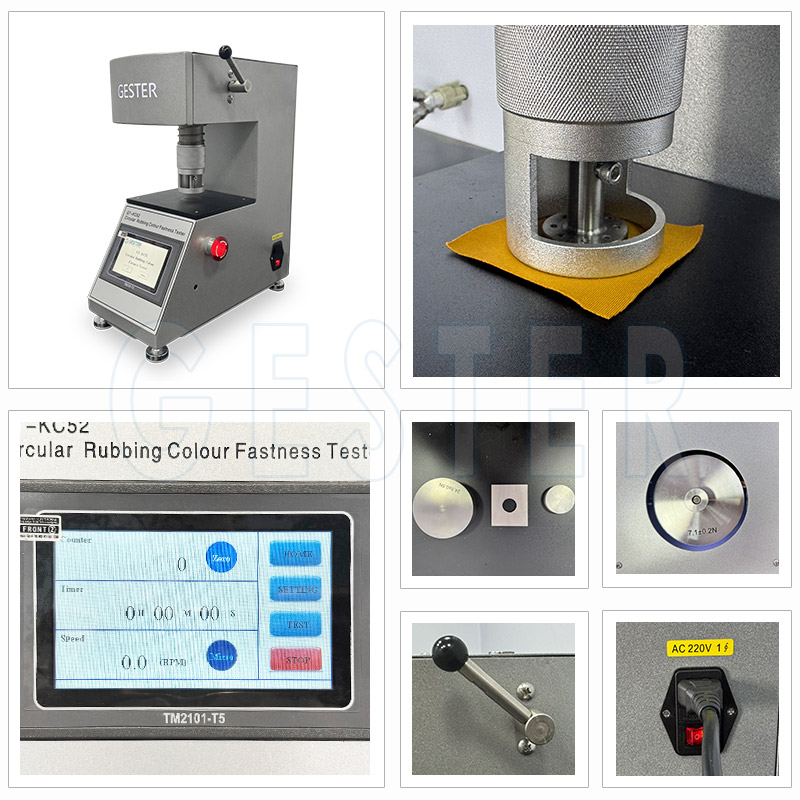

Circular Rub Fastness Tester GT-KC52
B站不支持收货地址
B站不支持库存规格
Model:
GT-KC52
MOQ:
1Piece
Place of Origin:
Quanzhou,China(Mainland)
Brand
GESTER
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

Application



Circular Rubbing Colour Fastness Tester is used for assess colored materials friction damage and surface color transfer. It is suitable test the upper materials, such as leather, plastics and fabric etc.





Principle

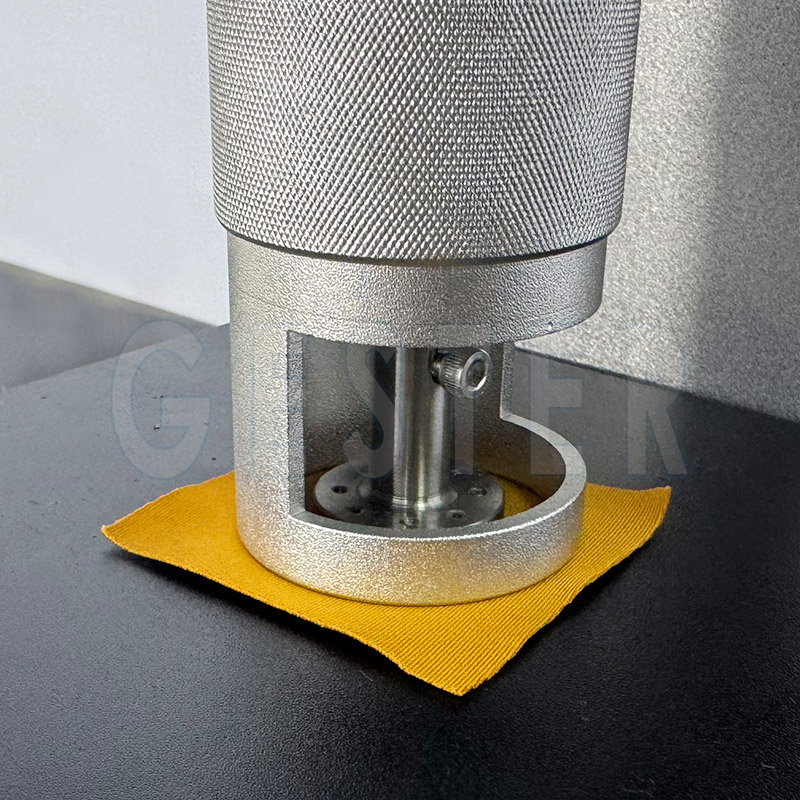

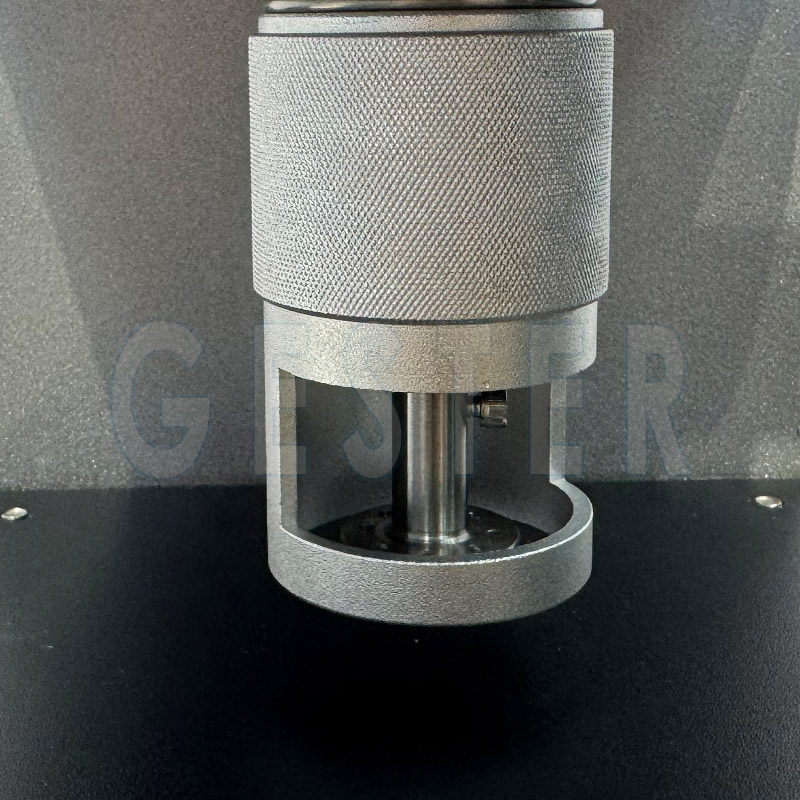

Under constant pressure condition, rubbing can be carried out in dry or wet circle wool felt, the machine will stop when the preset rub count has bees reached. Fastness can be judged by the effect on the sample material or the transfer of color to the rubbing pad and assessed by reference to a standard gray scale.





Feature

  1. 1.Circular Rub Fastness Tester Test methods: dry rubbing, wet rubbing, perspiration rubbing, alcohol rubbing, organic liquids rubbing. (The probational liquid need to be prepared by customers)

    2.The counter can pre-determined test counts and show actual test count. The machine will stop when the preset count has been reached.

    3.Memory function: when preset count has not been reached, if to stop test by manual, the current number of test will be saved until to clear it to zero or continue testing; if to shutdown and restart the machine, the current data will be clear to zero, the preset count would be the value of last set.

    4.According to different requirements of testing, can be applied to correspondent load.

Product Parameters

Key Specification

Model

GT-KC52

Revolution of rubbing axis

150±5 r/min

Load

7.1 ± 0.2 N or 24.5 ± 0.5 N

Wool felt

External diameter: 25±1mm; Inner diameter3±0.5mm

Aluminum plate

Diameter: 50mm; Thickness: 12mm

Metal plate

75mm×65mm×5mm (L×W×D); diameter of bore center: 25mm

Power Supply

1∮AC220V 50/60HZ

Dimensions( L x W x H )

28 ×43 ×47 cm

Weight

35 kg

Standards

BS EN 13516 Method B, QB/T 1619-2018 annex B

SATRA PM8, ISO 17700 Method B


Accessories

Standards accessories

1pc

24.5N weights

1pc

Aluminum plate

1pc

Metal plate

1pc

Power line

Optional accessories

Optional

GT-KD20 Pneumatic Sample Cutting Machine

(Cutting die: 60mm)

Optional

Wool felt (200pcs/pack)

Optional

Gray Scale for color change

Optional

Gray Scale for staining
