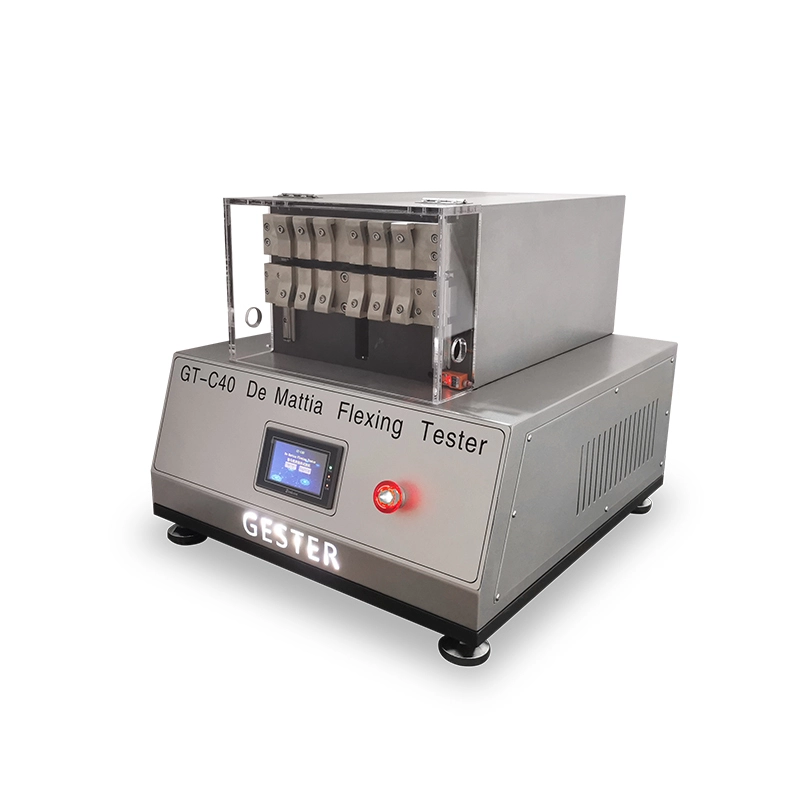

Coated Fabric De Mattia Flexing Resistance Tester GT-C40
Application
It is suitable to determine resistance to damage by flexing for rubber or plastics coated fabrics.
Principle
A rectangular strip of coated fabric is folded twice so that its long edges meet forming a strip measuring 125mm*12.5mm. This folded strip is mounted between a pair of flat grips, one of which reciprocates, causing the folded test piece to be sent outwards five times per second. This high-speed folding of the test piece is continued for either a pre-set number of cycles or until damage to the test piece is apparent.
Product Parameters
Key Specification
Model | GT-C40 |
Grips | 6 Pairs |
Rotating Speed | 5.0Hz±0.2Hz（300±12r/min） |
Grips Width | outer diameter of 22mm |
Test Track | Vertical linear motion |
Test Stroke | 57mm+0.5mm |
Grip Space | Max.70mm±1mm, Min.13mm±0.5mm |
Dimension of test piece | (37.5±1)mmx125mm |
Number of test piece | 6 pcs, each 3 pcs in longitudinal in transverse direction |
Dimensions (WxDxH) | 40x36x1375px |
Weight(approx.) | ≈110Kg |
Power Supply | 1∮ AC 220V 50Hz 3A |
Standards | ISO 7854-Method A, BS 3424:Part9 Method A, GB/T 12586 Method A |
Standard accessory | Sampling plate |
