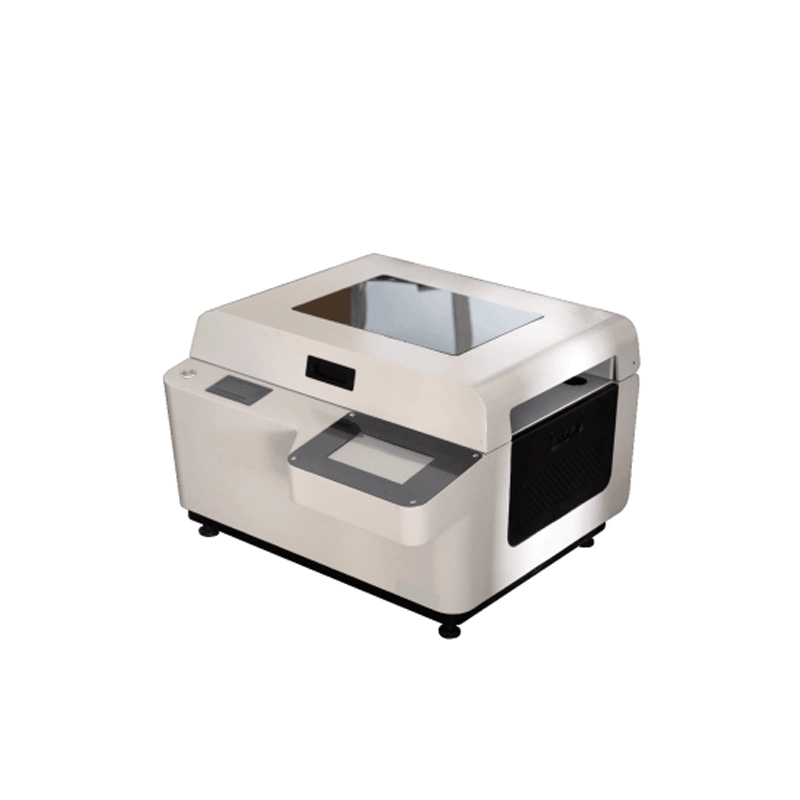

Drying Rate Tester of Fabrics GT-D61
Drying Rate Tester of Fabrics GT-D61
Application
The Drying Rate Tester for Fabrics GT-D61 is designed to measure the drying time and drying rate of moisture-absorbing, quick-dry fabrics.
Features
1. Equipped with high-precision wind speed sensors, infrared temperature sensors, and temperature sensors.
2. Features a precision dripping device.
3. Operated via a color touch screen with both English and Chinese user interfaces.
4. Integrates with computer software to automatically perform drying time and drying rate tests, along with comprehensive data analysis.
5. Data is displayed and saved as curves and graphs, making it easy for users to analyze and print results.
6. Fully automated operation with built-in safety features.
7. Adjustable wind speed and drip volume.
Key Specification
Model | GT-D61 |
Heated Plate | 305mm × 305mm±1mm |
Flexible Heater | 305mm × 305mm±1mm |
Insulation Cork Board | 305mm × 305mm±1mm |
Metal Press Rod | 150mm × 40mm × 2mm±1mm |
Temperature of Heated Plate | 30~40 °C can be set, heating accuracy ± 0.1ºC |
Sample Temperature | Detection accuracy ± 0.2ºC |
Drip Device | 0.01-0.2 ml/s, speed range can be set |
Wind Speed | 1-3 m/s, can be set, accuracy ± 0.3m/s |
Sample Size | 150mm×150mm |
Power supply | AC220V±10% , 50Hz |
Dimensions | 510(L)×510(W)×360(H)mm |
Weights | ≈40kg |
Accessories
Standard Accessories
| 1Set | Software |
1Set | Sample Holder | |
1Set | USB Cable |
