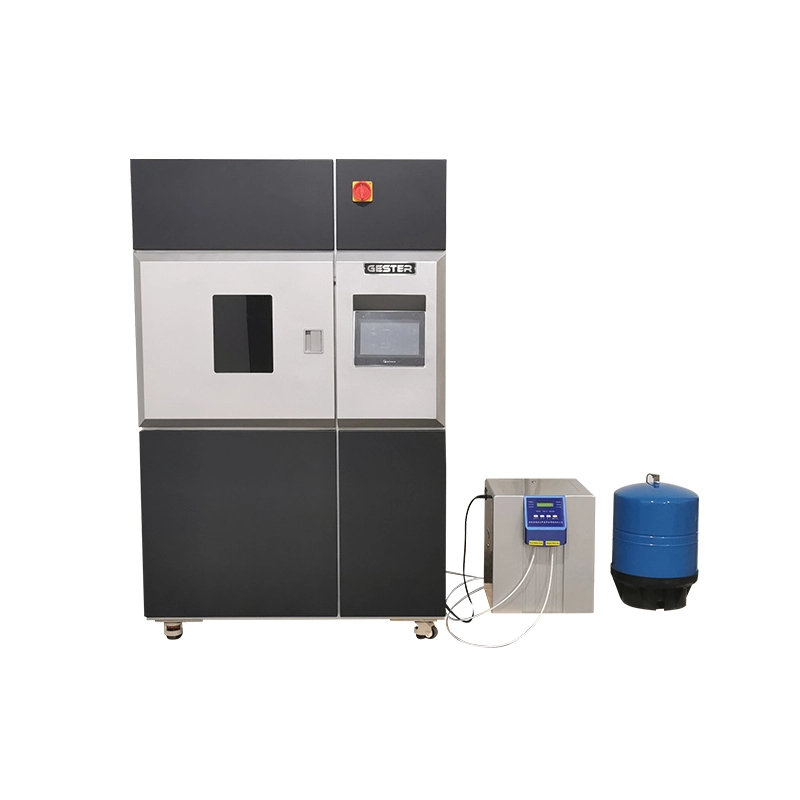

Water-cooled Light & Weather Fastness Tester GT-3000
Brief Introduction of the product
Application
It is widely use in solar radiation simulation light color fastness, light perspiration color fastness and light aging test of rubber, plastic, coating, petrochemical industry, car, textile industrial products and other materials. It through simulate illumination, exposed to the rain, mist spraying, alternating light and dark, temperature and humidity climates conditions to test material products’ color fading, aging, transmittance, peeling, hardness, softness and other performance changes.
Standards
Textile
GB/T 8430, GB/T 14576, GB/T 8427, ISO 105-B02/B04/B06, AATCC 169, M&S C09 / C09A, JIS L0843
Paint coating
GB/T1865, ASTM D6695, ISO 11341, NES M0135, ISO16474-2
Rubber & Plastics
GB/T 12831, GB/T9344, GB/T 16422.1, ASTM D2565, ISO 4892
Non-metallic Material
AATCC TM16, ASTM G26, ASTM D4459, ASTM G155, GB/T 2423.24,GB/T 15102, GB/T 15104
Car: SAE J2527, SAE J1885, SAE J2212, SAE J1960, SAE J2412, ISO3917, PV 1303, PV 3929, PV 3930, DVM 0067- MA,
HES D6601, TSL 0601G, GMW3414, EDS-T-7415, D47 1431
Feature
1. Presetting various specifications, or customized programs, meet diverse range of standards, including AATCC, ISO, BS, JIS etc.
2. 6000W water-cooled xenon arc lamp system, accurately simulate sunlight spectrum. Irradiance auto- compensates system, control irradiance, temperature, and humidity timely through a closed loop.
3. Irradiation control, light irradiance sensor monitor, digital setting, automatic compensating system, stepless irradiation regulation.
4. Accurate chamber temperature control, irradiation temperature, and heater raise the temperature, air conditioning refrigeration system.
5. Ultrasonic humidification system makes spray water even and low noise. Saturated steam humidifying, industrial refrigerating machine dehumidifying, and close loop control the humidity.
6. Large amount of testing specimen, be able to hold as 3 times of specimen quantity as air-cooled machine in a test.
7. Custom program capability and storage for additional user-defined tests.
Model | GT-3000 |
Irradiation Source (Water-cooled Long Xenon Arc Lamp) | 6000W |
Exposure Area | 2660cm² |
Sample Holders Capacity | ISO:145×45mm 33pcs AATCC:145×70mm 20pcs |
Average Lamp Life | 1000 hours |
Sample Rack Rotating Speed | 1-7rpm ( adjustment) |
Sample Rack Outside Diameter | Φ550mm |
Chamber Temperature Range | 20-93℃ ±1 ℃ Resolution: 0.1 ℃ |
BPT | 35-125 ℃ ±1 ℃ |
BST (Option) | 35-120 ℃ ±1 ℃ |
Chamber Humidity | Light Cycle: 10-70%RH; Resolution :0.1% Dark Cycle: 30-95%RH; Resolution :0.1% |
Irradiance Control Range | 0.6～3.08W/m²@420nm (Option: 340nm, 420nm, 300-400nm and 300-800nm) Accuracy: ±0.02W/m²@420nm. |
Digital Setting, Closed-loop Automatic Compensation | |
Power Supply | AC220V±10% 50Hz 10KW |
Dimensions
| 1200×900×1800mm(L×W×H) |
Weight | 350kg |
