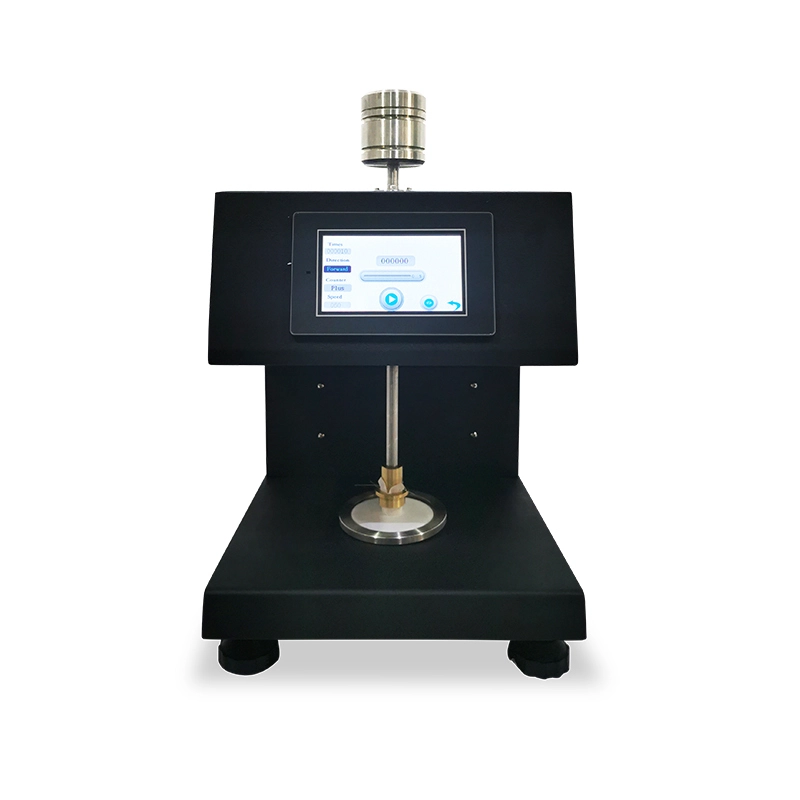

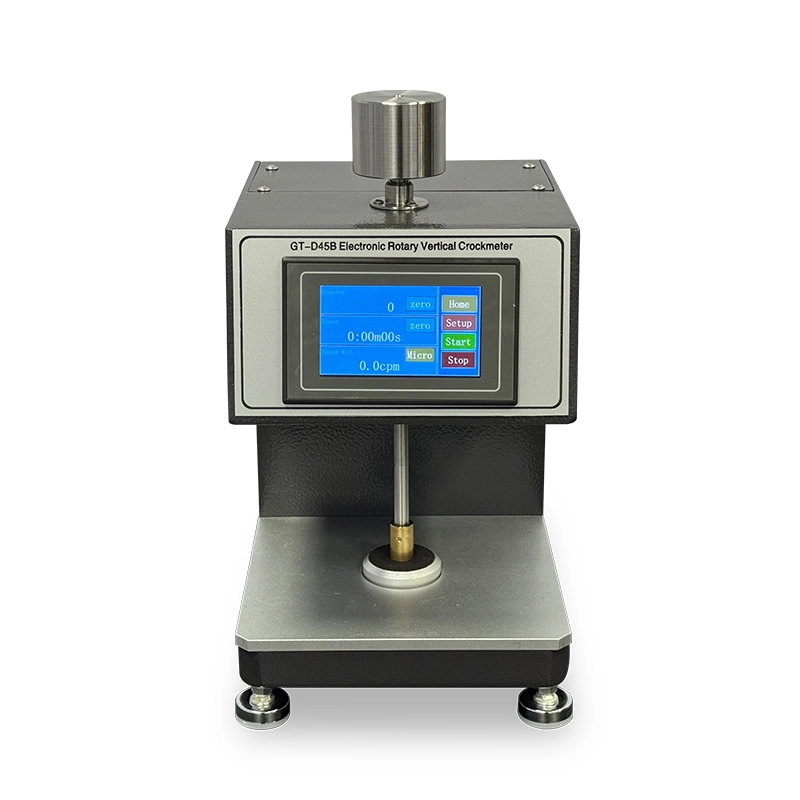

Electronic AATCC 116 Rotary Vertical Crockmeter GT-D45B
Application
Rotary Vertical Crockmeter, to determine the colour fastness of textiles to dry or wet rubbing particularly for printer fabrics. Rotary crockmeter applies 1134 grams of pressure on a 16mm finger and rotate 1.125 turns clockwise then anti-clockwise.
The operating handle is however turned in one direction only.
Standards
AATCC 116, ISO 105 X16
Key Specification
Model | GT-D45B |
Drive Mode | Electronic |
Test Loading | 1143g / 11.1±0.5N |
Rubbing Head Diameter | 16mm |
Sample Dize | ≥25×25mm |
Crockmeter Cloth Size | 51×51mm |
Range of Speed | 50-80rmp (adjustable) |
Counter Range | 0-999999 |
Power Supply | 1∮AC 220V 50/60HZ 100W |
Dimensions (L x W x H) | 240×100×160mm |
Weight | 15kg |
Accessories
Standard accessories | 1pack | Rubbing Cloth |
Optional accessories | Optional | Chromatic Transference Scale |
Our team
1. Touch screen control is convenient to operate.
2. Equipped with standard fixed device of fabric
3. Single-chip microcomputer control to freely set the speed.
4. The sample holder was made of spring steels to quicken the speed of fastening.
5. The friction time can be set freely and can count up and down. The machine will automatically stop when reaches at the set time.
