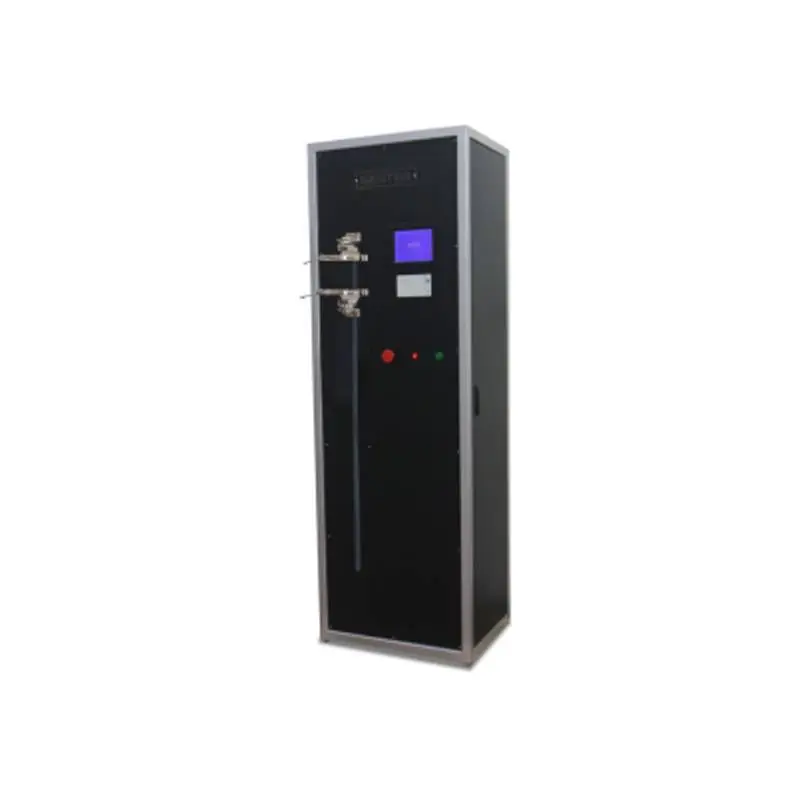

Electronic Nonwovens Strength Tester GT-CN01
Electronic Nonwovens Strength Tester GT-CN01
Electronic Nonwovens Strength Tester Application
The Electronic Nonwovens Strength Tester is designed to measure the tensile and peel strength of various materials, including nonwoven absorption layers, adhesive linings, multilayer laminated fabrics, hot melt adhesive linings, as well as the adhesion between apparel fabrics, linings, and coatings.
Feature of Nonwovens Strength Tester
1. Touch screen display, human-machine interface in English.
2. Vertical cabinet structure, generous appearance, and smooth operation.
3. Stepping servo drive, the deceleration box is equipped with synchronous belt deceleration, accurate testing and stability.
4. Equipped with online interface, developed of testing software professionally, can be used to check and analysis the results of test.
5. By setting the parameters, the clamping distance will be automatically positioned.
6. The first sample testing and data processing software adopts multi-thread processing in China, and the test doesn't have to wait.
Electronic Nonwovens Strength Tester Standards
GB/T3923.1/2, FZ/T 01085, FZ/T 80007.1, AATCC 136, FZ/T 01010, FZ/T60011
Nonwovens Strength Tester Key Specification
|
Model |
GT-CN01-5 |
GT-CN01-10 |
GT-CN01-50 |
|
Testing Range |
50N |
100N |
500N |
|
Force Measure Range |
1%~100% of the Testing Range |
||
|
Operating Mode |
Constant velocity extension principle(CRE), microcomputer control, LCD Chinese display, support online communication |
||
|
Sampling Frequency |
1000 times/second |
||
|
Stretching Speed |
50~1000mm/min |
||
|
Maximum Elongation |
800mm |
||
|
Clamp Width |
60mm |
||
|
Test Accuracy |
≤0.2%F·S |
||
|
Dimensions |
520×400×1600mm |
||
|
Power Supply |
AC220V 50HZ 200W |
||
|
Weight |
60kg |
||
