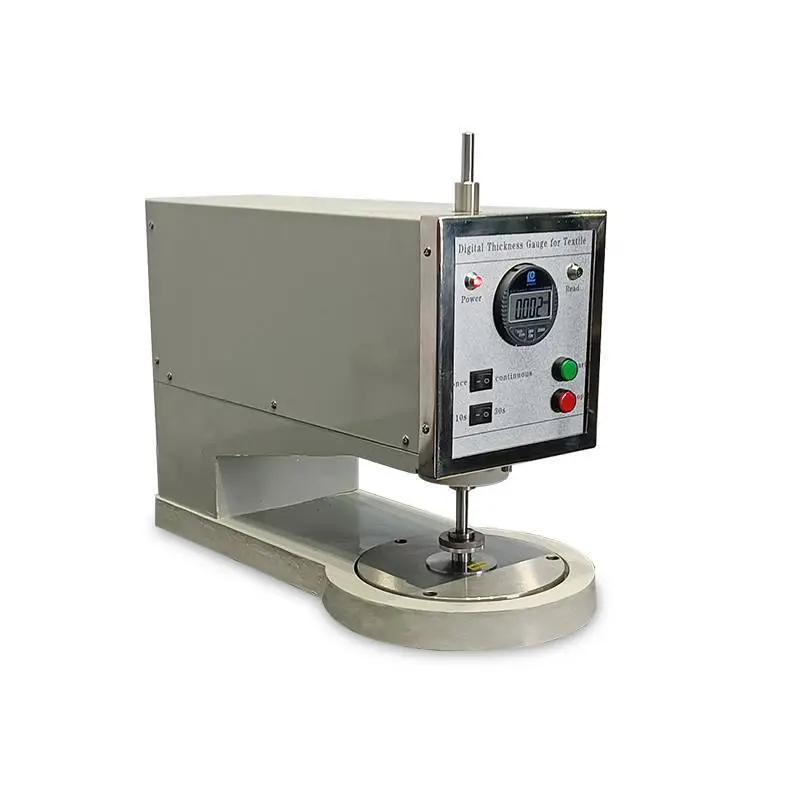

Electronic Thickness Tester Thickness Gauge GT-C46-2
Brief Introduction of the Product
Application
Electronic thickness gauge , is used to determine of thickness of textiles and textile products, and suitable for measurement of various kind of woven, knitted fabrics and other uniform thin materials.
This electronic thickness tester is widely used in cotton textile, knitted textile, coverlet, handkerchief, and paper making industries.
Feature
1. Digital display with accuracy of 0.01mm or 0.001mm.
2. Can customized different presser and weights to meet the requirements of various standards.
Standards
ISO 5084, ISO 9073.2, ISO 2589, ASTM D1777
Model | GT-C46-2A | GT-C46-2B | |
Range of Thickness | 0-10mm | ||
Division Value | 0.01mm | 0.001mm | |
ISO5084 | Foot Diameter | Φ50.48mm | |
Test Pressure | 0.1 kpa and 1 kpa ( 20.4g and 204g) | ||
ISO9073-2 | Foot Diameter | Φ56.42mm | |
Test Pressure | 0.1kpa and 0.5kpa (25.5g and 127.6g) | ||
ISO2589 | Foot Diameter | Φ10mm | |
Test Pressure | 49.1kpa (393.3g) | ||
ASTMD1777 Method 1,5 | Foot Diameter | Φ28.7mm | |
Test Pressure | 0.7kpa , 4.14kpa and 7.58kpa (46.2g,273.2g and 500.1g) | ||
ASTMD1777 Method 2 | Foot Diameter | Φ9.5mm | |
Test Pressure | 23.4kpa(169.2g) | ||
ASTMD1777 Method 3 | Foot Diameter | Φ6.3mm | |
Test Pressure | 172kpa(546.8g) | ||
ASTMD1777 Method 4 | Foot Diameter | Φ57.2mm | |
Test Pressure | 18.9kpa(4944.7g) | ||
Pressing Duration | 5s/ 10s/ 30s, can be switched | ||
Power Supply | AC220V±10% 50Hz | ||
Dimensions (L×W×H) | 450×216×305mm | ||
Weight | 25kg | ||
Accessories
ISO 5084 and ISO9073-2 Accessories | 1Set | |
Power Line | 1pc | |
Other Standard Pressure and Weights | Optional |
