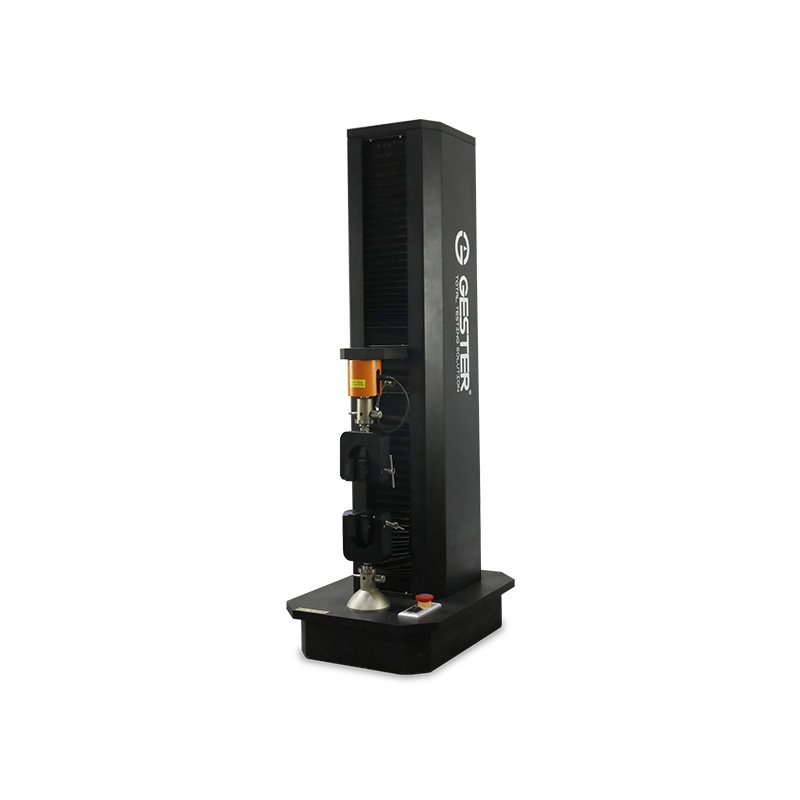

Electronic Universal peeling Strength Testing Machine GT-C04-2
Application
This test machine designed for peeling test of adhesive lining, multilayer laminated fabrics, hot melt adhesive lining, adhesive between lining and shell fabric, coating adhesion.
Feature
- 1.LCD, membrane panel, English human-computer interface.
- 2.Site cabinet structure, elegant shape, stable working.
- 3.Stepping servodrive, gearbox equipment with synchronous belt for decelerating, precision&stable test.
- 4.Equip with online connector, special designed test software can be test result of analysis.
5.Auto locate distance of clamp.
Product Parameters
Key Specification
Model | 5 | 10 | 50 |
Range | 50N | 100N | 500N |
Test Accuracy | ≤0.2%F·S | ||
Stretch Speed | 0.01～1000mm/min | ||
Max. Elongation | 800mm | ||
Clamp Width | 60mm | ||
Stroke Resolution | 0.01mm | ||
Power Supply | AC220V 50/60HZ 200W | ||
Dimensions ( W x D x H ) | 47x38x186 cm | ||
Weight | 85kgs | ||
Standards | FZ/T 01085, FZ/T 80007.1, AATCC 136, FZ/T 01010, FZ/T60011 | ||
Accessories
Standard accessories | 1pc | Manual Grips |
1pc | English Operation Software | |
1pc | Cable Connect with PC | |
1pc | Load cell | |
Optional accessories | Optional | Desk Top Computer |
Optional | Other Grips and Load Cell |
