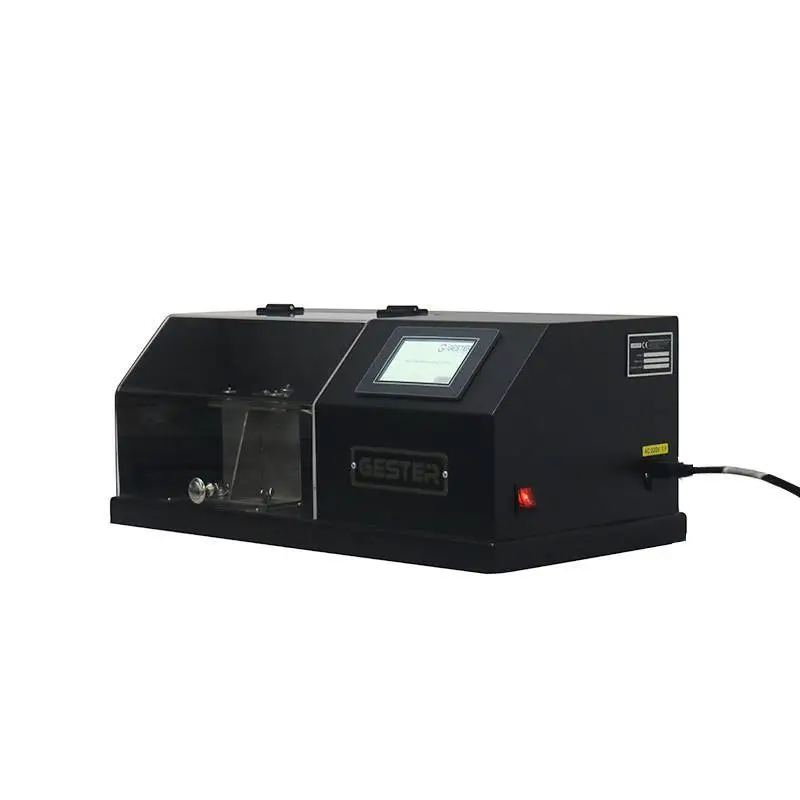

Fabric Down Proof Testing Machine GT-C41
Application
This machine is apply to test down and/or feather penetration through the primary tick fabric of a specimen containing feather and/or down filling.
Feature
- 1.Fitted with electronic pre-determined counter to determine the number of cycles per test.
2.Fitted with acrylic plastic cover with interlock for safety.
Principle
A cushion of specified dimensions is made from the fabric to be tested for its down-proof properties and is filled with a given amount of feather and down material or its mixtures. The cushion is mounted in this apparatus and undergoes a specified number of rubbings. Judge the downproofness by The number of down and/or feather particles which have passed or protruded from the primary tick fabric is counted.
Product Parameters
Key Specification
Testing speed | 135r/min |
Distance between fixtures | (44 ± 1) mm |
Eccentricity | 25+/-0.5mm |
Testing times | 2700 circles |
Counter | 0~99999 ( adjustment） |
Power supply | AC 220V 50/60HZ |
Dimension | 40 x 37 x 650px ( L x W x H ) |
Weight | 20kg |
Standards | BS EN 12132-1, EN 15586, GBT 14272-2011 Annex E |
Accessories
Standard accessories | 1pc | Power line |
Optional | Digital balance (accuracy 0.1g) |
